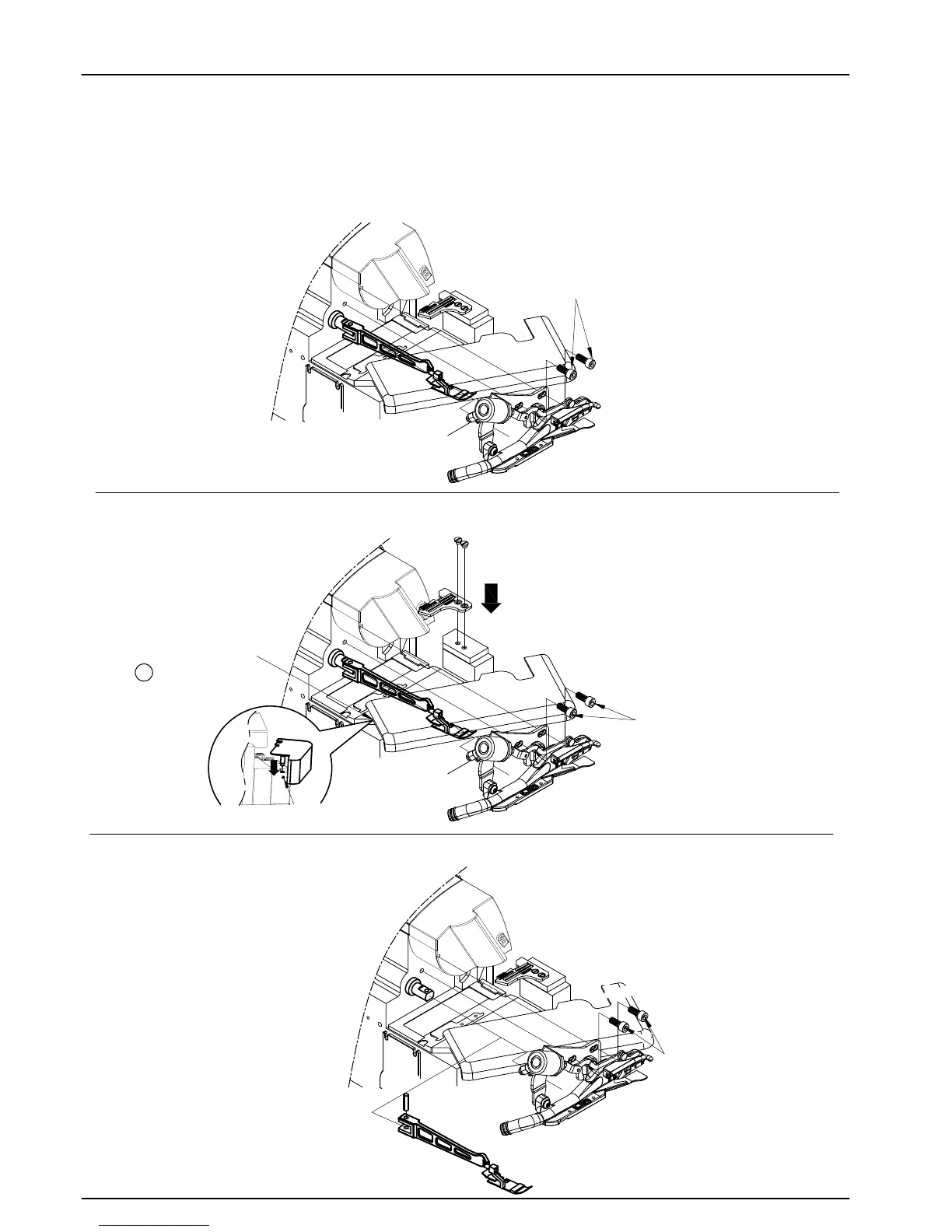

(B)先將切刀組鎖上再將原廠零件裝回
Firstly install the cutter then reinstall the original plate.
M6x8*2
②將針板裝上
①穿過壓腳裝上切刀組
Install the needle plate.
Across the presser foot then
install the cutter.
M6x8*2
①裝上切刀組
②裝回壓腳
Install the cutter.
Reinstall the presser foot.
機型 Model：MX5204、EX5214、JY-B804、JY-B805
安裝步驟 The installation procedure ：
M6x8*2
①穿過壓腳裝上切刀組
Across the presser foot then
install the cutter.
機型 Model：M800、M952 (4線 4threads )
3 將蓋子裝上
Install the cover.
放下蓋子後，鎖緊此螺絲
Fasten the screw after put down the cover.
機型 Model：M700、M800(5線 5threads)、GN2000
