注意:拆一顆裝一顆
※墊圈凸點需插入鬆線墊圈孔
(A)將原廠夾線座拆下裝在本廠夾線座

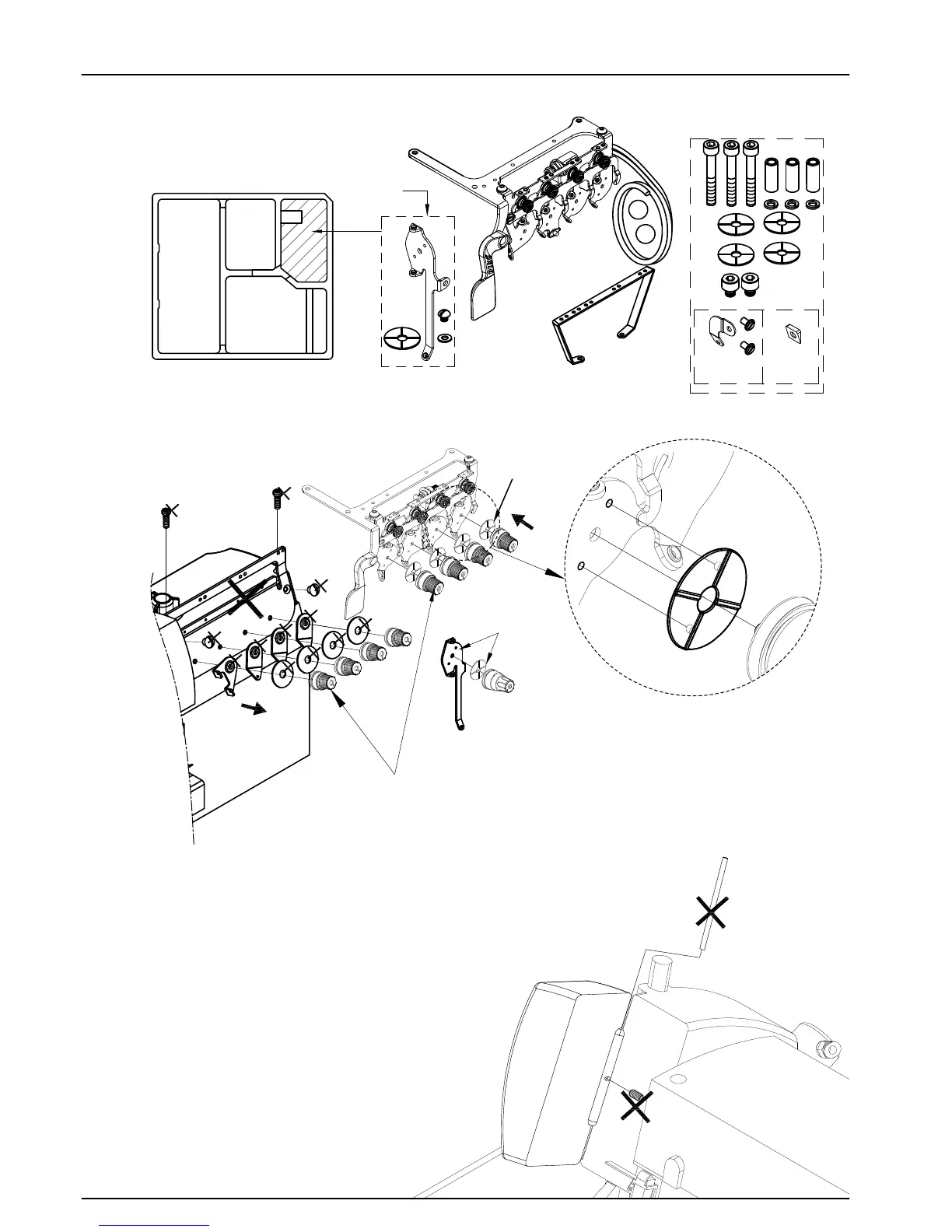

(五)安裝鬆線組
Install the thread tension regulator
Disassemble the parts of original thread tensions regulator then install one of DINO made.
Note: Disassemble and
install one by one.
※The convex of washer needs to be
inserted into the hole of thread
DINO washer
本廠墊圈
1
2
4
3
(B)M700和GN2000需將原廠保護蓋拆下
For model M700 and GN200, the original safety cover need to be disassembled.
(B箱)(BOX B)
Only 6threads
六線才有
5
Only 6threads
六線才有
tension washer
黑色Black
4x2.5-1000*2
∅
G
M
EX5214
M800
