4
PEGASUS / TYPICAL / JOYEE
萬用束帶 Cable tie*10
※工具包
3mm
4mm
2.5mm 1.5mm
2mm
※六角華司木頭螺釘，建議使用工具。
約5mm

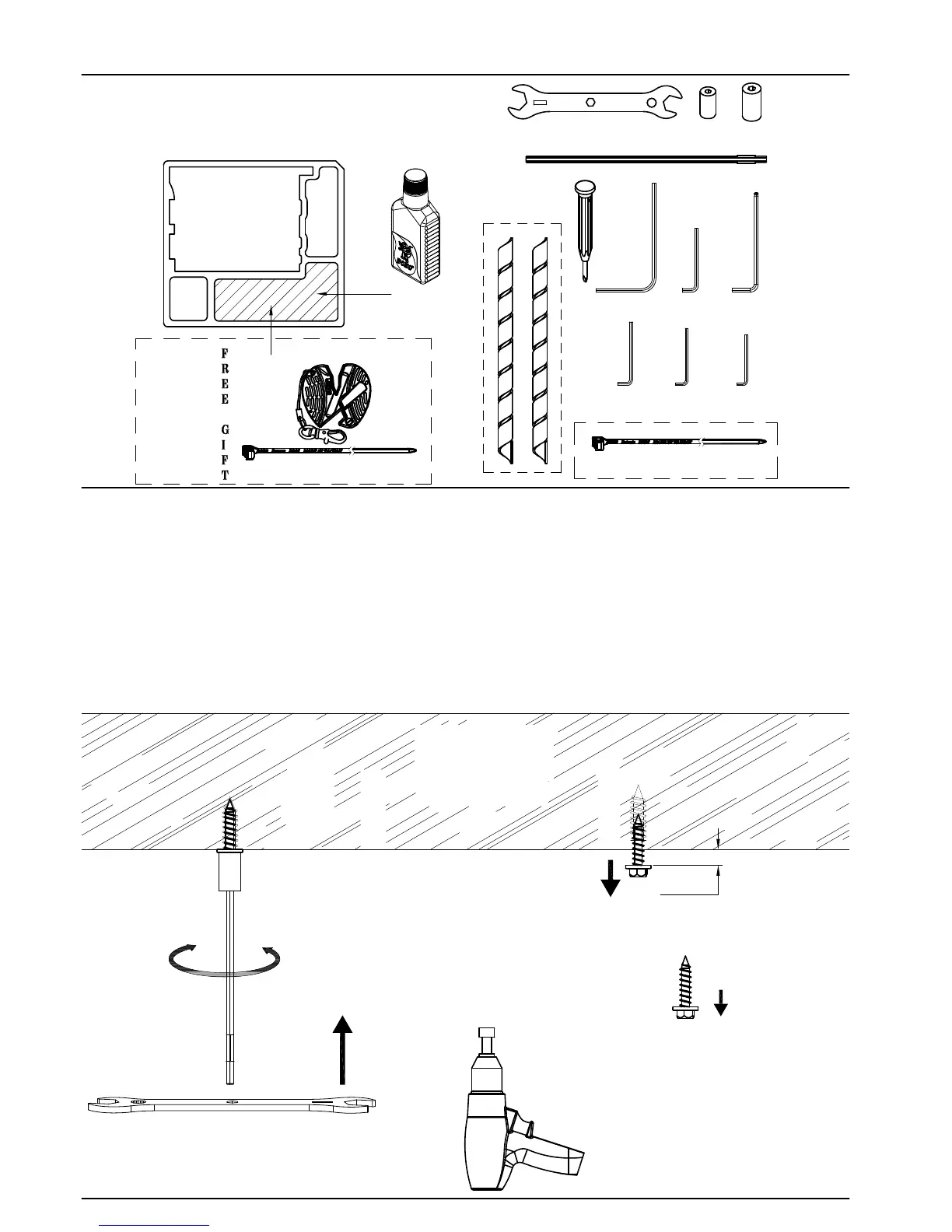

①先使用工具將螺絲完全鎖上桌板
②安裝氣動組時，將螺絲退到能與零件組裝的距離，約5mm
※其它組件安裝時直接將螺絲完全退出。
※其它組件安裝時
將螺絲完全退出
①
②
安裝氣動組
※It would be better to use the hexogen washer wooden screw by tools.
①Firstly tighten the screws completely under the table by tool.
②Loose the screw around 5mm to install the components for installing the pneumatic set.
※Need to be completely loosened.
Install the pneumatic set
桌板
Table
※Screws need to be completely loosened
for installing other components.
5mm
or
或
8mm
8mm
7mm
Tool bag
(A箱)(BOX A)
贈
品
萬用束帶 Cable tie*3
5mm
DINO Lubricant Made
DINO 德製油精
in Germany.
To Next Page
