※安裝注意事項 :
Caution：

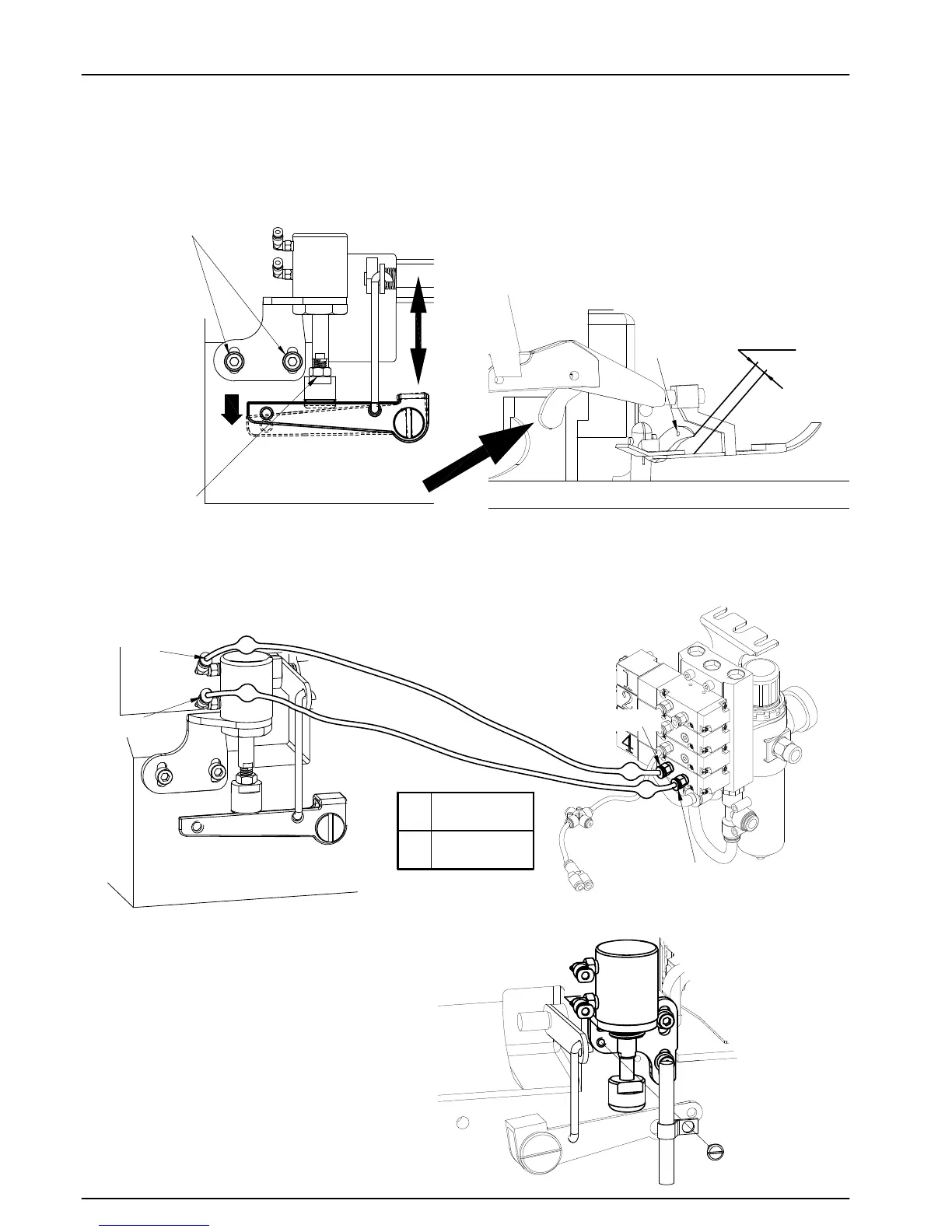

調整壓腳高度：
8
PEGASUS / TYPICAL / JOYEE
(D)將壓腳汽缸風管接上氣閥
約1mm
調整至按下壓桿時,壓腳抬起離彎針約1mm的
緩衝空間。
Connect the tube of foot lifter cylinder to the valves
(C)調整好後將螺絲鎖緊
Height adjustment of presser foot:
Make a space between the presser foot and looper
to 1mm after presser foot raised once press the rod.
彎針
looper
可微調高低
Height can be adjustable.
Tighten the screws after all adjustment is done.
Tighten the screws after adjusting the height
調整好壓腳高度後，將螺絲鎖緊
of presser foot.
藍色Blue
藍色Blue
桔色Orange
桔色Orange
B
B
C
C
B
藍色Blue
6x4-700
∅
C
桔色Orange
6x4-700
∅
(E)裝回原廠零件
Reinstall the original part.
(限定M700、GN2000)
