Section 5 Basic Operation of the Radar 5-26

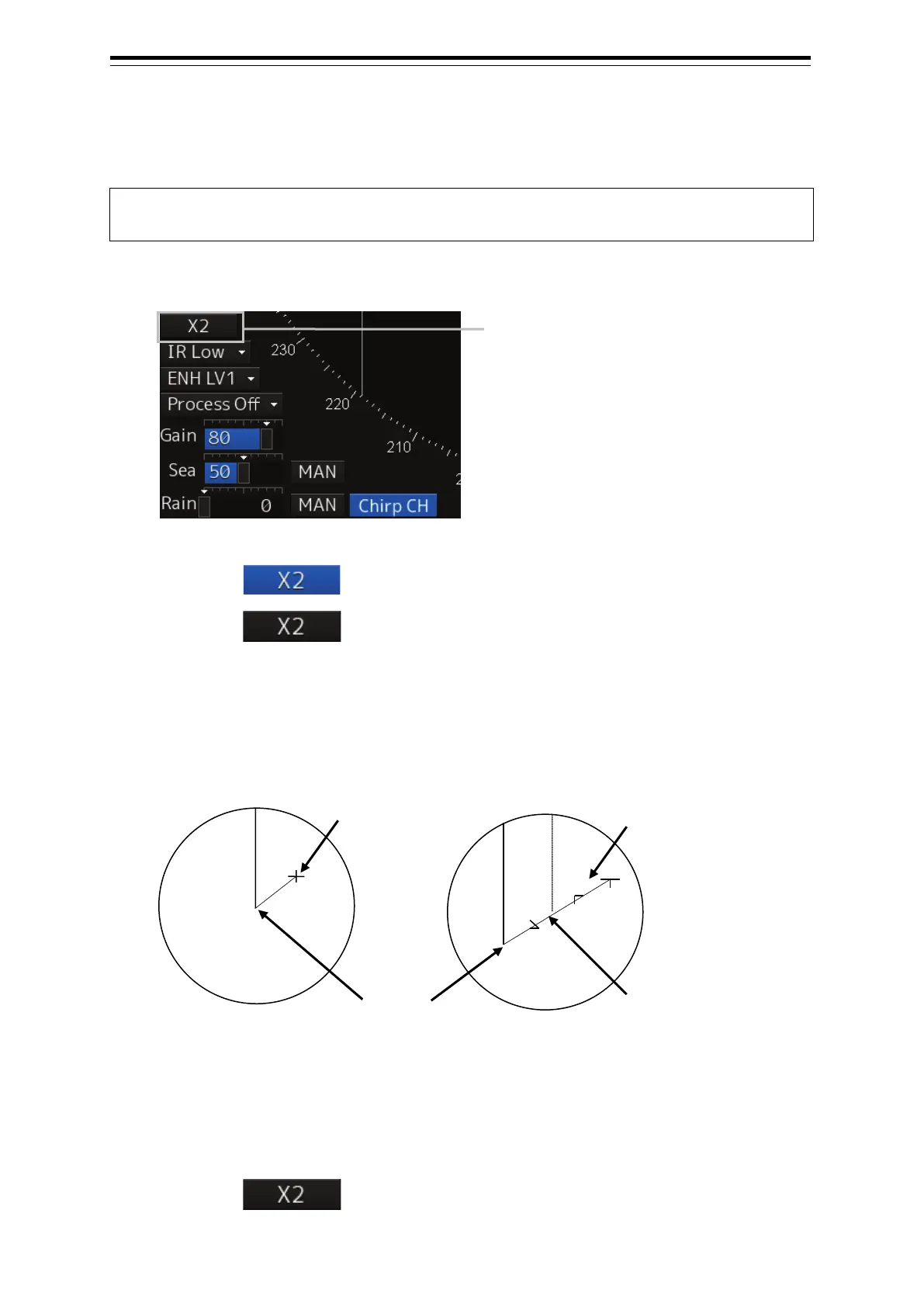

5.4.10 Doubling the size of radar image
This function doubles the size of radar video near a specified position.
Memo
If the range is 0.125 NM and the motion mode is in the TM mode, this function is not available.
1 Click on the [X2] (double zoom) button in Radar signal information.
Each time this button is clicked on, the double zoom function is switched On and Off.
On display:
Off display:
When double zoom is set, the cursor mode changes to the off-set cursor.
2 Place the offset cursor on a location you want to zoom and click on it.
Using the cursor position as the reference, the screen display is enlarged by a magnification of
2 so that the midpoint between the cursor and own ship's position comes at the centre of the
radar display.
Canceling zoom display
1
Set the double zoom function to Off by clicking on the [X2] button.
Off display:
position
Centre of radar display
Own Ship's Position before
Own Ship's Position after
Zooming Position
[X2] (double zoom) button
