Section 9 Route Planning 9-10

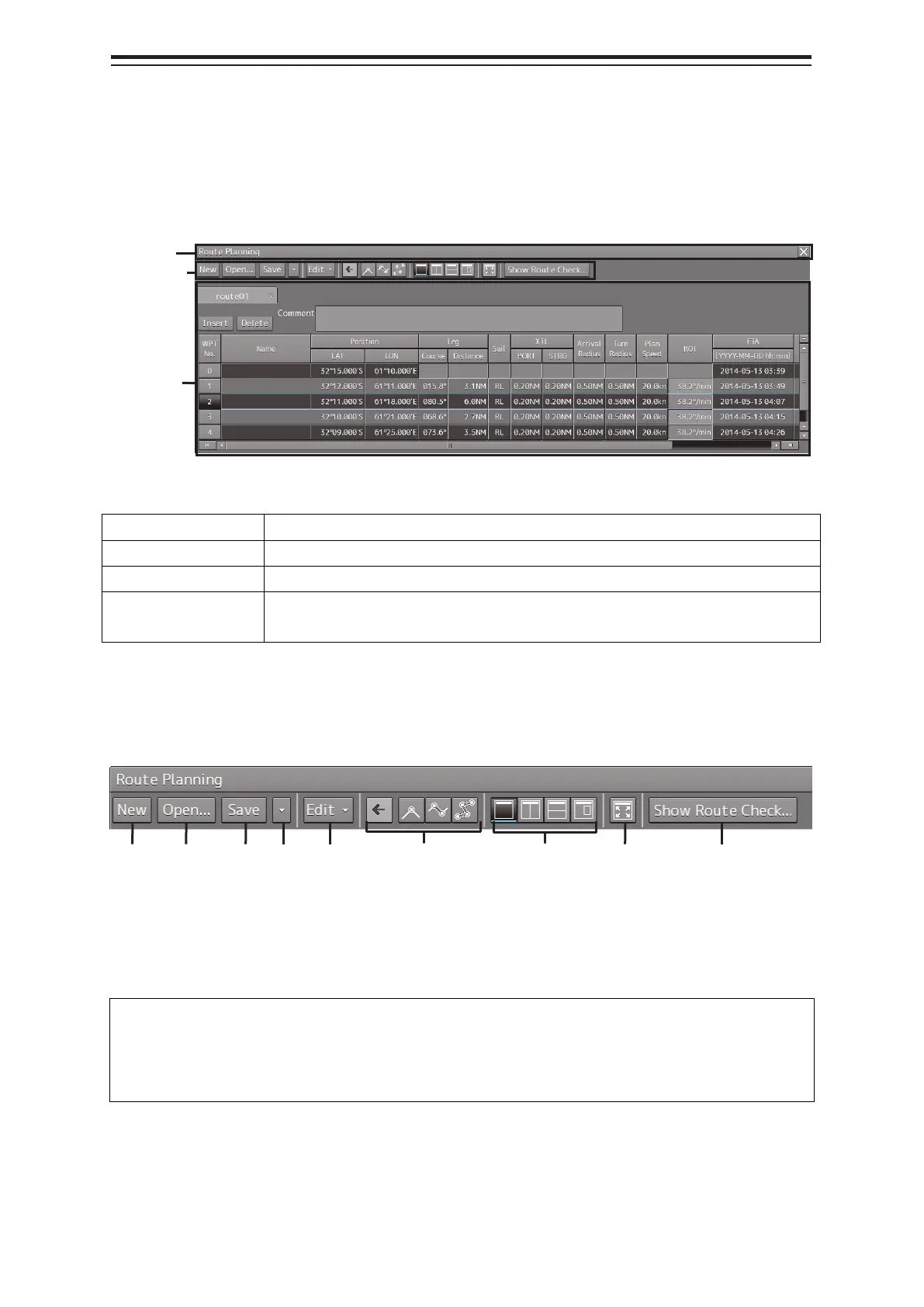

9.4 Name and Function of Each Section of
the [Route Planning] dialog Box
The [Route Planning] dialog box comprises as below.
Name Function
Title bar Displays the menu title, "Route Planning".
Route Planning bar Route planning tools are assigned (Refer to "9.4.1 Route Planning bar".).
Route planning tab Displays the file name and route data of the route file that is being created
(Refer to "9.4.2 Route planning tab".).
9.4.1 Route Planning bar
The Route Planning bar comprises the following tools.
[1] [New] button
When this button is clicked on, a new route planning tab is added to the dialog box, enabling creation
of a new route file.
Note
Up to four route files can be opened concurrently. If four files have already been opened, the [New]
button is disabled. To create a new route file, close one or more of the files that are opened and
click on the [New] button.
[6] [7] [1] [2] [3] [4] [5] [8] [9]
Title ba
r
Route
planning
bar
Route
planning
tab
