Note
Unlike the property screen at user chart editing, the manual upadate property screen does not
have the Comment and Display Scale input columns.
14.10.1 Creating a symbol object (Symbol)
A symbol or Alerts symbol can be created by specifying the creation position with the cursor.
1. Click on the [Type] button on the drawing toolbar.
An icon list is opened.
Select a symbol or an icon of Alerts symbol. (Refer to "14.2.3
Selecting an object type".)
2. Click on the position on which the symbol is to be created with the cursor.
The symbol is displayed on the position on which the button is clicked and the parameters of the
symbol that was created are displayed on the object property dialog box.
Note
For an ENC object, the screen can be switched to the attribute editing screen by using the [Edit
Attribute] button.
For the details, refer to “14.10.9
Editing attributes of an object”.
3. Adjust the parameters on the object property dialog box.
4. To create an object on another position continuously, repeat Steps 2 and 3.

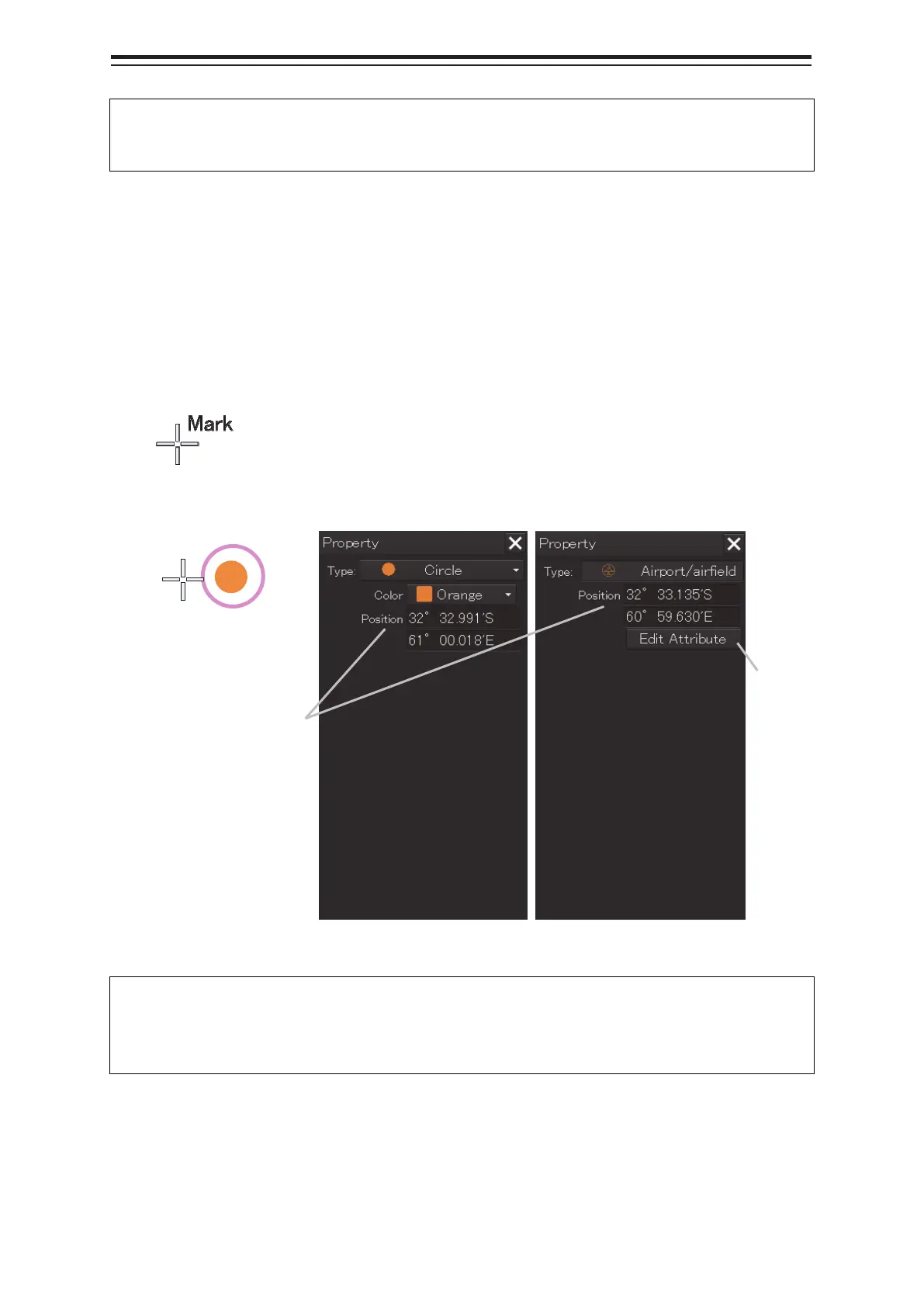

Mark
Latitude and longitude of the
symbol creation position
ENC object Non-ENC object
"Edit
Attribute"
button
