6. Web Menu System
6-51
Chapter6 Web Menu System
6.5.4.3 Restrict User Connection (Usage Restriction Screen)
To enter the Usage Restriction screen, open “User Control” menu on the left [menu] panel and select
“Usage Restriction”.
On this screen, Restriction groups for communication up to five can be set. The limitations are set
by time (minutes) for Voice, Audio, UDI, RDI and Streaming IP, by number for SMS and by size
(Mbyte) for Standard IP. User/Device can communicate within the assigned Restriction group.
These settings are used in [6.5.4.1 Register Users (p6-48)] and [6.5.4.2 Register Devices (p6-50)].
To restrict communications by user/device name, assign restriction group registered here to users and
devices (refer to [6.5.4.1 Register Users (p6-48)] and [6.5.4.2 Register Devices (p6-50)]) and enable
“Secret Code” for each port to recognize communicating user (refer to [6.5.2.1 Set up Ports (p6-37)]).
The call is made by GUEST user on ISDN port because it does not support “Secret Code”.
Also, user can select reset cycle from “Manually”, “Monthly”, “Weekly” or “Daily” to initialize the
counts of time and size.
Set Restriction Group
Step1: Enter the name of Restriction. The name set here is displayed on Restriction menu of User
Restriction screen ([6.5.4.1 Register Users]) and Device Registration screen ([6.5.4.2
Register Devices]).
Step2: Select Permission for each service types. Limitation time/number/size is required when
“Limited” is selected.
Step3: Click “Set” button to register the Restriction group.
Delete Restriction Group
(Permission is set to “Unlimited” for all service types when the Restriction is deleted.)
Click “Del” button for the Restriction group.

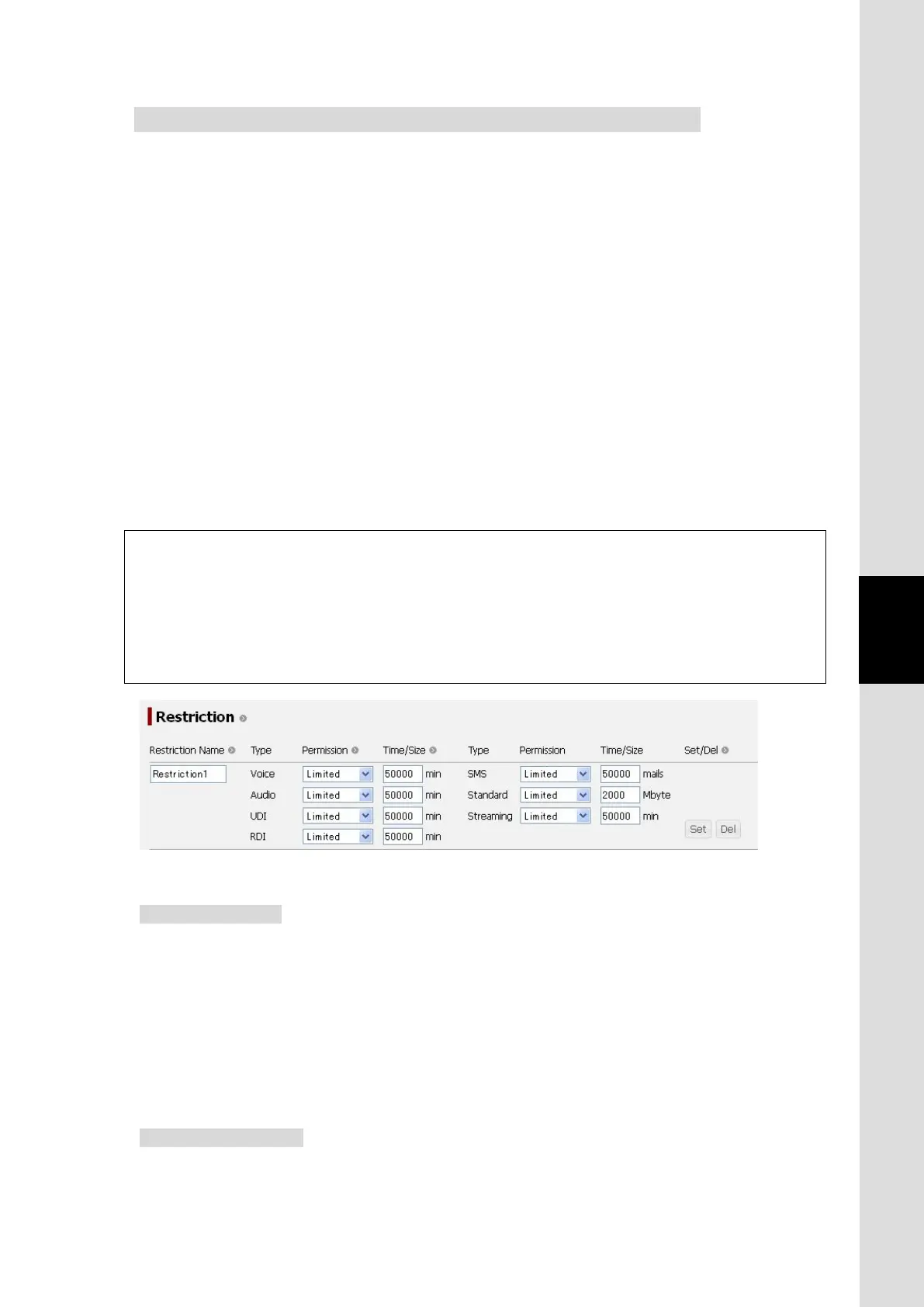

Fig. 6.5.4.3a Usage Restriction (Restriction Setting) Screen
NOTE
・ UDI/RDI service is not available for JUE-251.
・ Beware that the restriction assigned to the Guest user is applied for ISDN port because
ISDN port doesn’t recognize Secret Code.
To Next Page
