JRC JUE-95SA - Ext Psu (Nbd-577 C)

2-14
2.5.6 EXT PSU (NBD-577C)

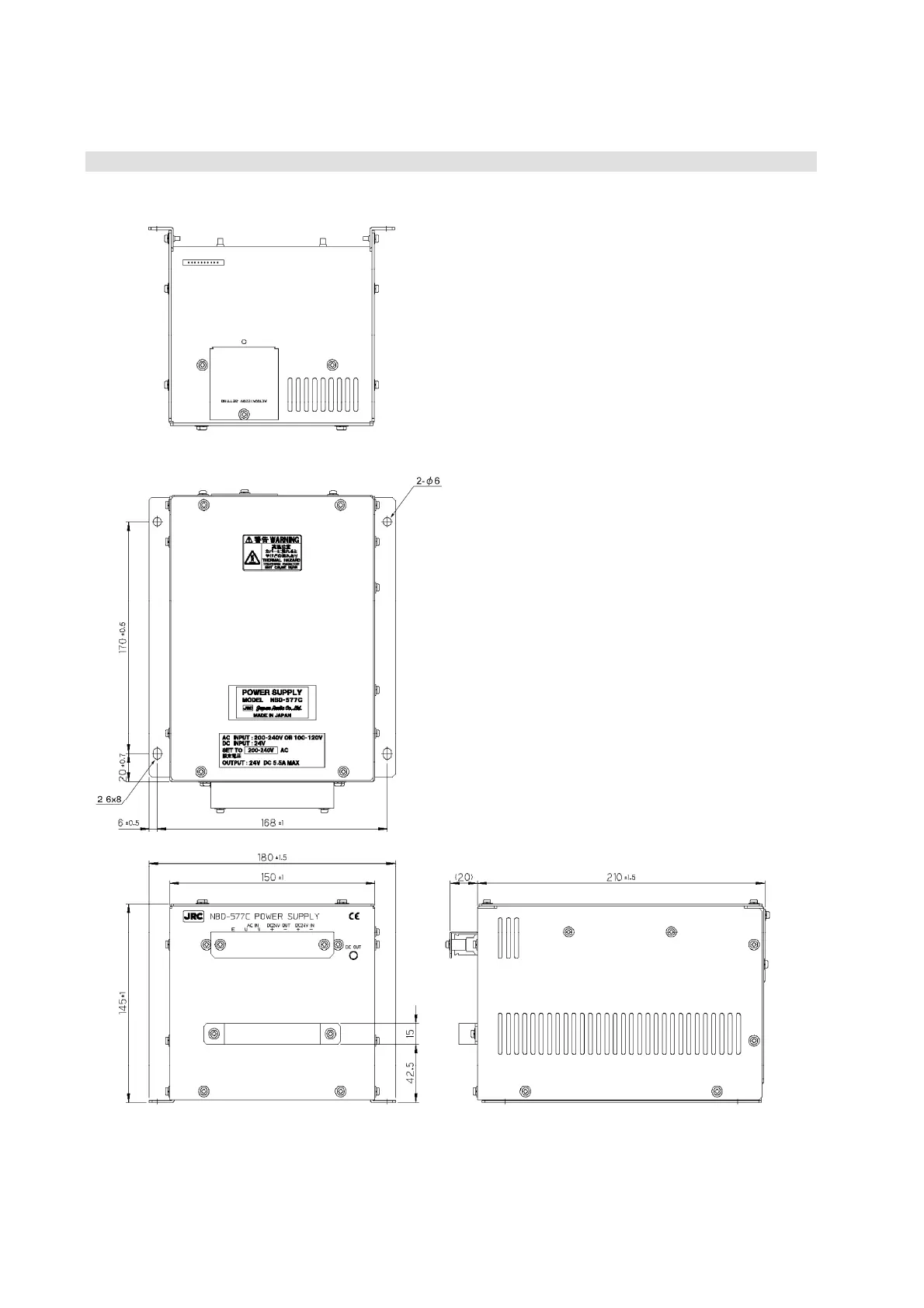

Fig.2.5.6 EXT PSU
Caution
Before installation, do the following procedure.
1. Set the plug “P1” to suitable receptacle according
to the input voltage.
2. Stick the attached label for voltage indication on
the name plate according to the input voltage.
Specification
Input voltage:
AC 100/220V (typical), ±10%
50/60Hz (typical), Single phase
DC 24V (typical), +30%, -20%
Output voltage:
DC 24V
Unit: mm
Mass: Approx. 5.4kg
