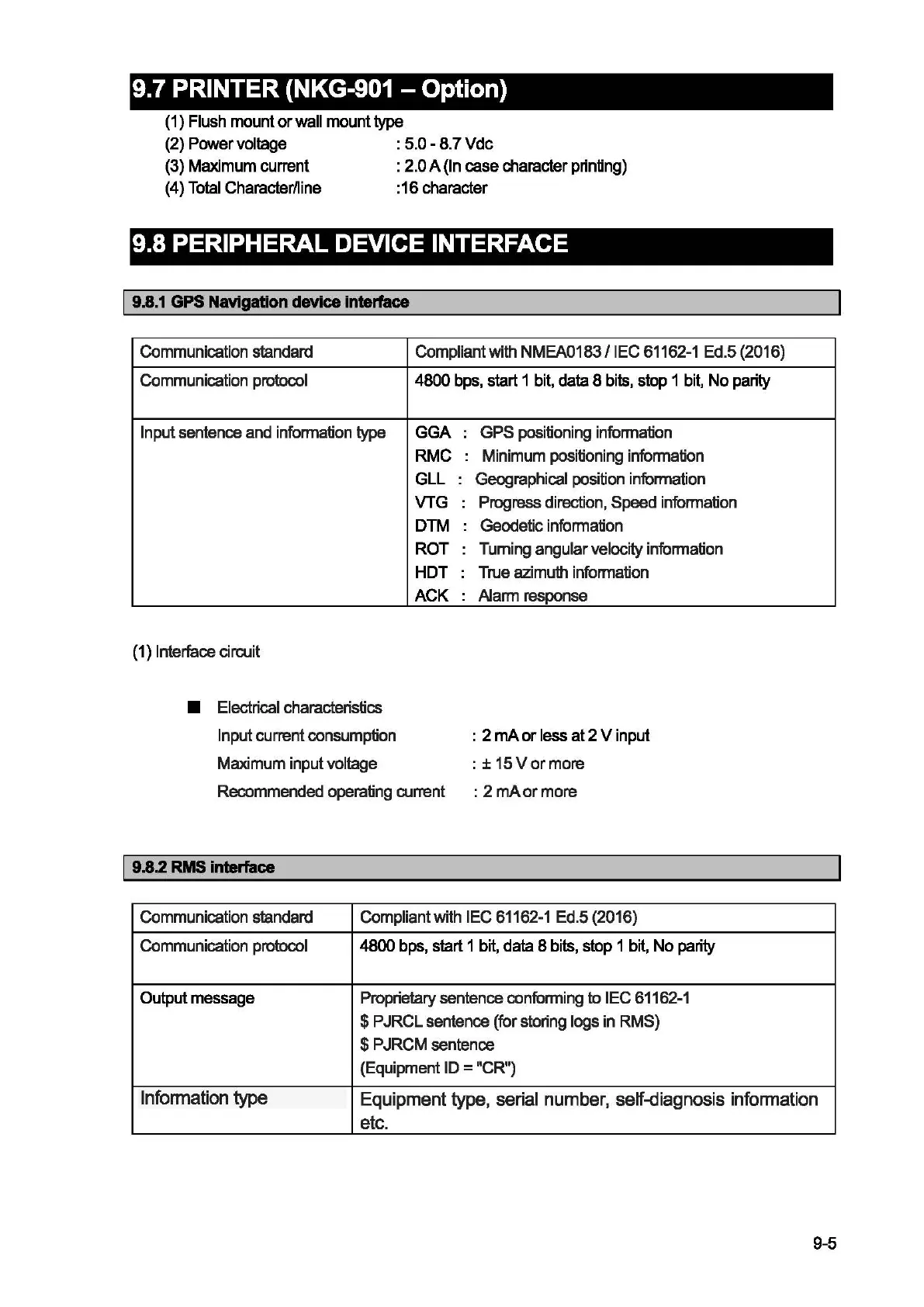

9.7 PRINTER (NKG-901- Option)
(1) Flush mount or wall mount type
(2)
Power voltage : 5.0-8.7 Vdc
(3) Maximum current :
2.0 A (In case character printing)
(4)
Total Character/line :16 character
9.8 PERIPHERAL DEVICE INTERFACE
I 9.8.1 GPS Navigation device Interface
Communication standard
Compliant
with NMEA0183/IEC 61162-1 Ed.5 (2016)
Communication protocol
4800
bps, start 1 bit, data 8 bits, stop 1 bit, No parity
Input sentence and information type GGA: GPS positioning information
RMC Minimum positioning information
GLL Geographical position information
VTG
Progress direction, Speed information
DTM Geodetic information
ROT Turning angular velocity information
HOT True azimuth information
ACK Alarm response
(1) Interface circuit
• Electrical characteristics
Input current consumption : 2 rnA or less at 2 V input
Maximum input
voltage : ± 15 V or more
Recommended operating current : 2 rnA or more
I 9.8.2 RMS Interface
Communication standard Compliant with IEC 61162-1 Ed.5 (2016)
Communication protocol 4800 bps, start 1 bit, data 8 bits, stop 1 bit, No parity
Output message Proprietary sentence conforming to IEC 61162-1
$ PJRCL sentence (for storing logs in RMS)
$ PJRCM sentence
(Equipment ID = "CR")
Information
type
Equipment type, serial number, self-diagnosis information
etc.
