6.3 Cable Connection

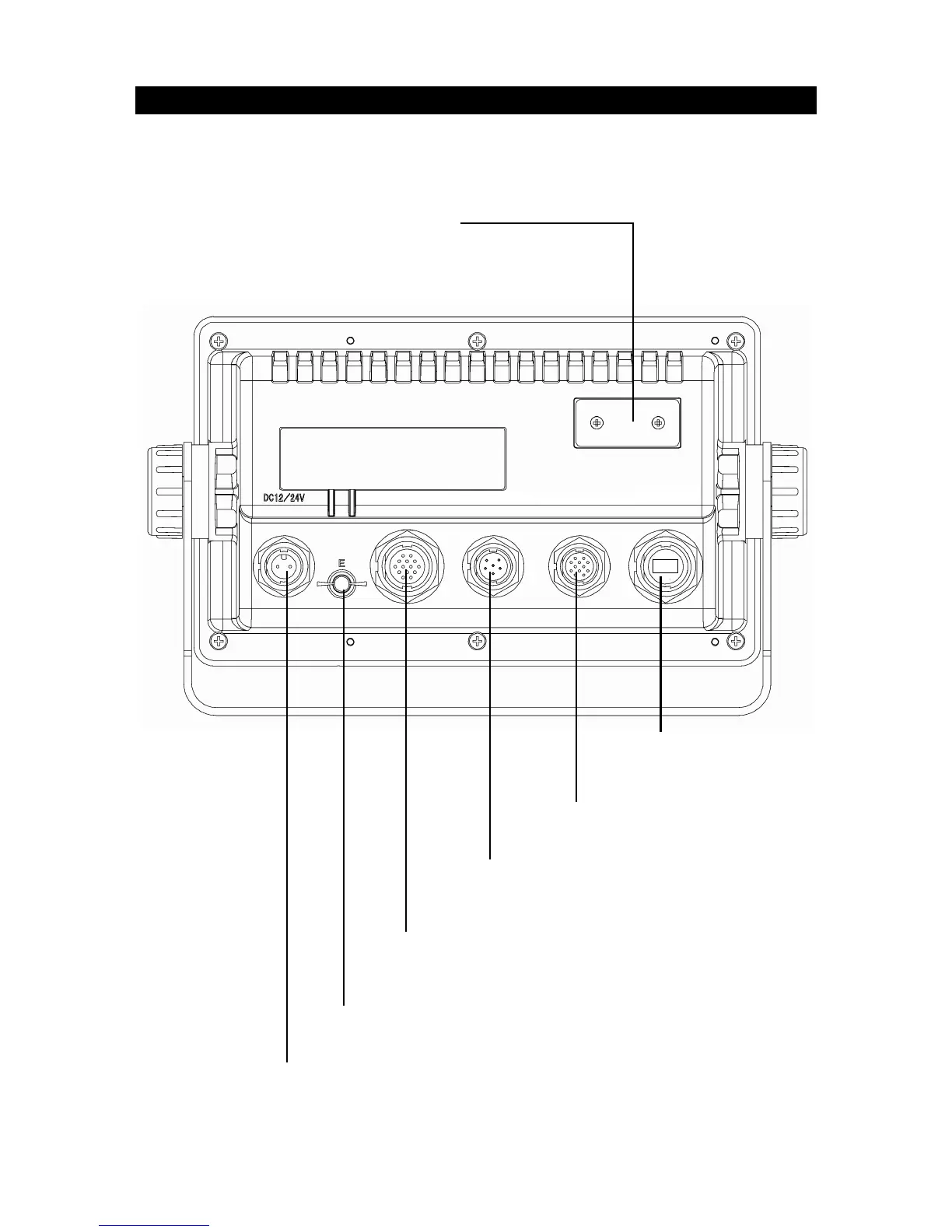

z Unit (Rear Connectors)
Receiver Connection
T
erminal
GPS/DGPS receiver connection.
D-Sub Terminal
Used to connect to a computer (RS-232C) or printer.
Power Input Terminal
Used for power input to unit.
Always use the included power cable.
Chassis Earth Terminal
Used for connection to ship earth as needed.
External Equipment Connection Terminal (Serial Transmission)
Used for radar equipment connection, etc.
External Equipment Connection Terminal (Contact Signal)
Used for connection to external buzzers and optional
peripherals.
GPS/DGPS
DATA IN/OUT
CONTACT IN/OUT
ETHERNET
External Equipment Connection Terminal
(Ethernet)
Used for ECDIS connection, etc.
