– 5 –

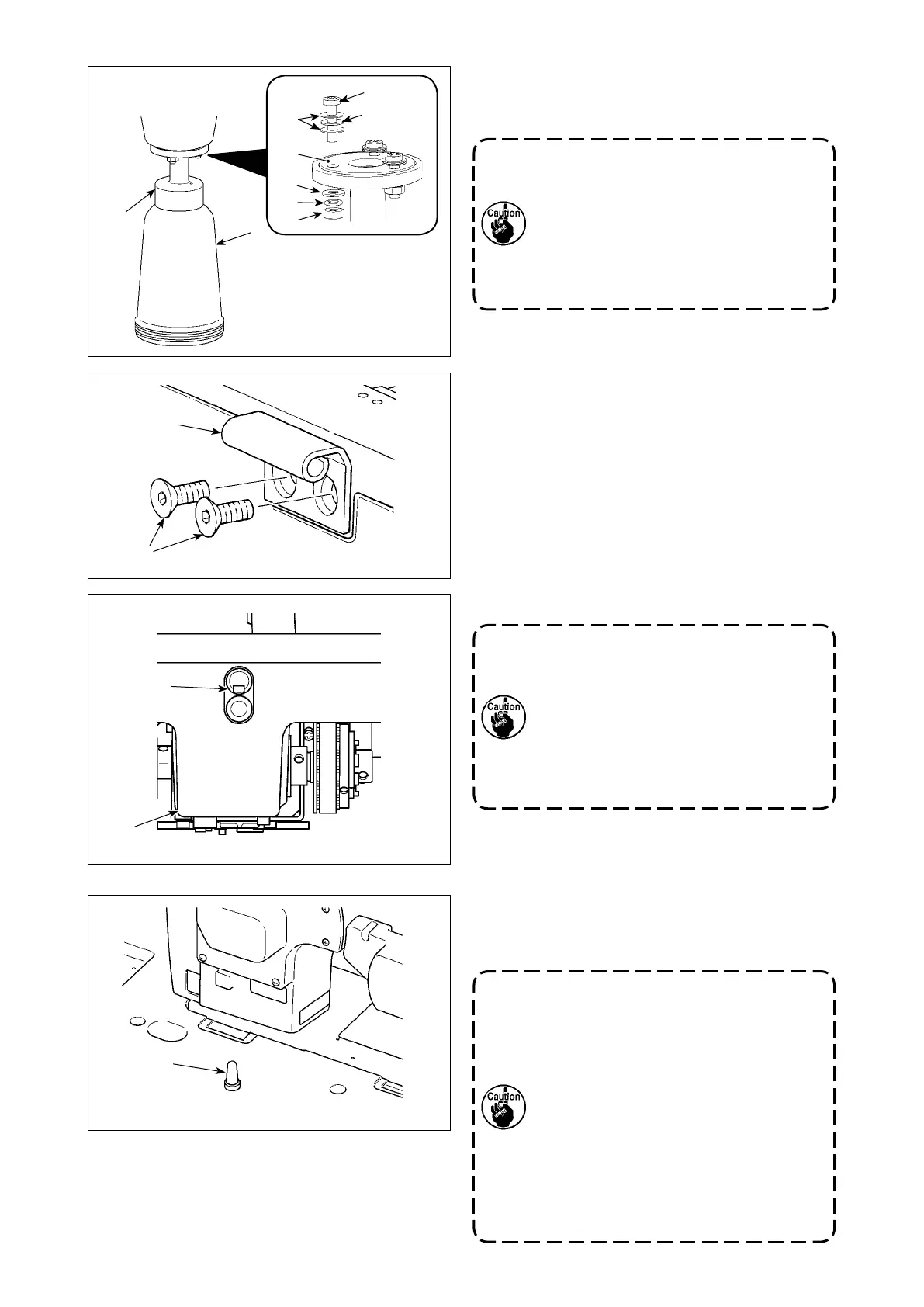

3) Installing the oil bottle
Put oil seal
over accessory oil remover
and secure them with screw
and nut
.
At this time, placing a washer be-
tween two packing washers
, at-
tach them to the screw. Then, tighten
screw
together with washer
,
spring washer
and nut
as shown
in the gure on the left. (At three loca-
tions)
Put oil bottle
into oil remover
by hand.
4) Install hinge
on the bed with screw
.
Engage the hinge with the rubber hinge of the
table. Then, place the machine head on the
machine head support rubber.
C
5) Detach air vent cap
from the bed.
1. If the sewing machine runs without
removing air vent cap
, oil may
leak from feed box unit C.
2. In the case of transporting the sew-
ing machine with its head detached
from the table, it is necessary to
attach air vent cap
to the bed.
6) Securely install machine head support bar
to the table until its rib portion is pressed
against the table.
If it is inevitable to carry out work
with the machine head support bar
removed for the purpose of mainte-
nance or repair, such a work must be
carried out by two or more workers.
In addition, if the machine head is
tilted more than necessary, oil may
leak from the oil tank or oil inlet. To
prevent the oil leakage, be sure to
remove oil before tilting the machine
head.
To Next Page
