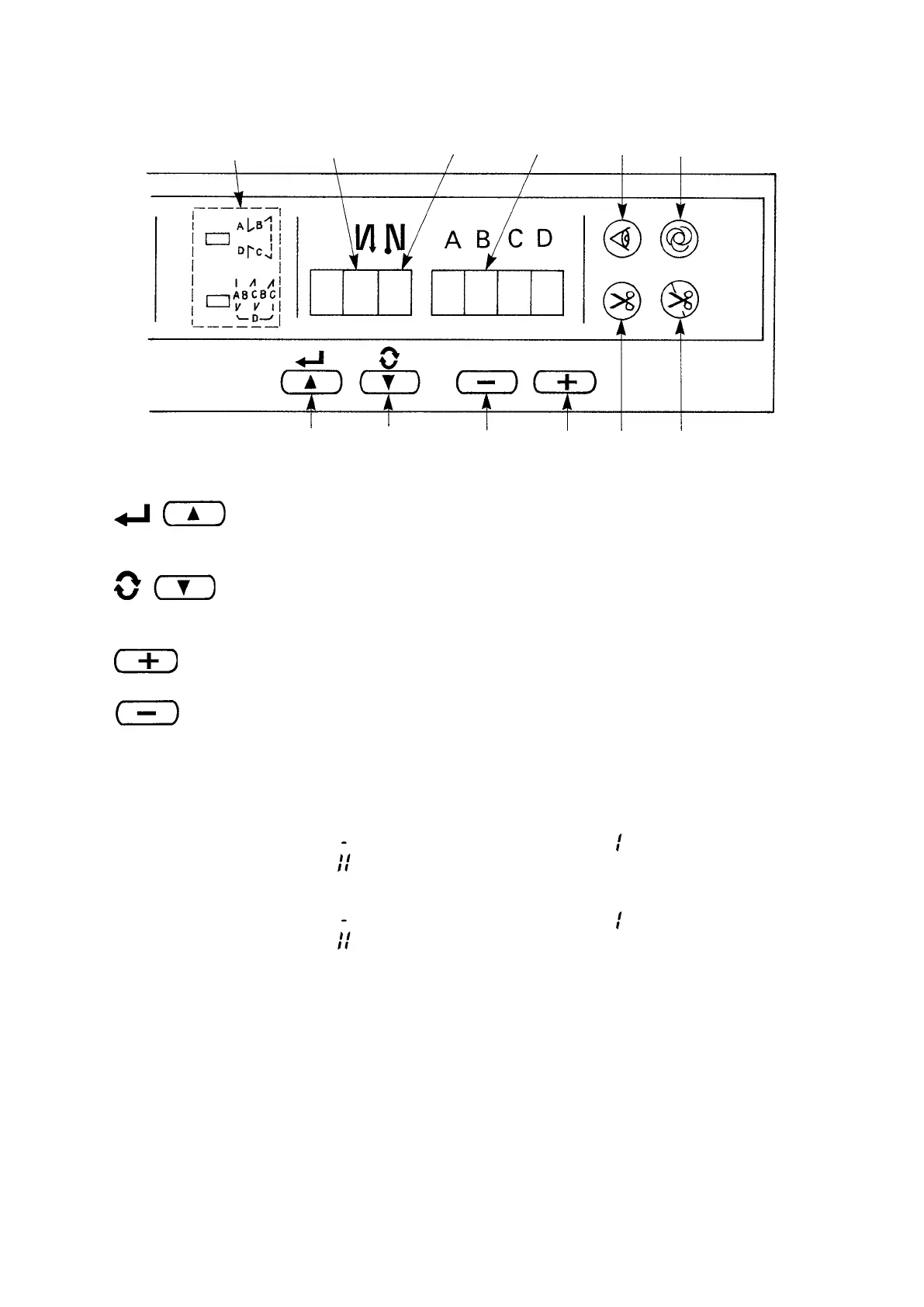

2. Explanation of the operation panel
1
/ switch
: Used for determining the contents of setting.
When this switch is pressed, ashing stops and the contents of setting
are determined.
2
/ switch
: Used for changing the contents of setting.
When this switch is pressed, changeable positions ash on and off.
By pressing the switch, ashing position shifts in the right direction.
3
switch
: Used for changing the contents of the selected display (ashing section).
When this switch is pressed, the contents of the display increase.
4
switch
: Used for changing the contents of the selected display (ashing section).
When this switch is pressed, the contents of the display decrease.
5
PATTERN SELECTION
display
: The selected pattern is displayed.
6
REVERSE STITCHING AT
START display
: Rendered effective when reverse stitching pattern is selected.
“
” Without reverse stitching display / “ ” Reverse stitching display /
“ ” Double reverse stitching display
7
REVERSE STITCHING AT
END display
: Rendered effective when reverse stitching pattern is selected.
“
” Without reverse stitching display / “ ” Reverse stitching display /
“ ” Double reverse stitching display
8
NUMBER OF STITCHES
display
: Number of stitches of reverse stitching or overlapped stitching is dis-
played.
9
MATERIAL EDGE SENSOR
display
: Lights up when the material edge sensor setting is selected.
Function setting No. 2
!0
ONE-SHOT AUTOMATIC
STITCHING display
: Lights up when the one-shot automatic stitching is selected.
Function setting No. 76
!1
AUTOMATIC THREAD
TRIMMING display
: Lights up when the automatic thread trimming by depressing the front
part of the pedal is selected.
Function setting No. 3
!2
THREAD TRIMMING PRO-
HIBITION display
: Lights up when the thread trimming prohibition is selected.
Function setting No. 9
