the historical voltage and current curve. Click it and select the time range for
exporting the curve. After confirming the selection, the export progress will be
displayed on the screen. When the progress bar is full, it means the curve data
export is successful. Note: Do not close the KH application during the curve
export process. The time range for exporting curves is up to 12 hours, and the
longer the time range, the longer the export time. Please be patient while
exporting curves. See Figure 3-4-29 for an example of selecting the time range,
and Figure 3-4-30 for an example of exporting curves.
Customized curve viewing: The view curve button will appear when viewing
the historical voltage and current curve. Click it and select the time range for
viewing the curve. After confirming the selection, the progress of the view
curve process will be displayed on the screen. When the progress bar is full,
the screen will switch to the landscape mode. In this mode, the voltage and
current trend for the selected time period can be viewed. Clicking on the curve
makes it easier to view the voltage and current values at a specific time point.
Note: Do not close the KH application during the curve viewing process. The
time range for viewing curves is up to 12 hours, and the longer the time range,
the longer the viewing time. Please be patient while viewing curves. See
Figure 2-5-31 for an example of selecting the time range, and Figure 2-5-32 for
an example of viewing curves.

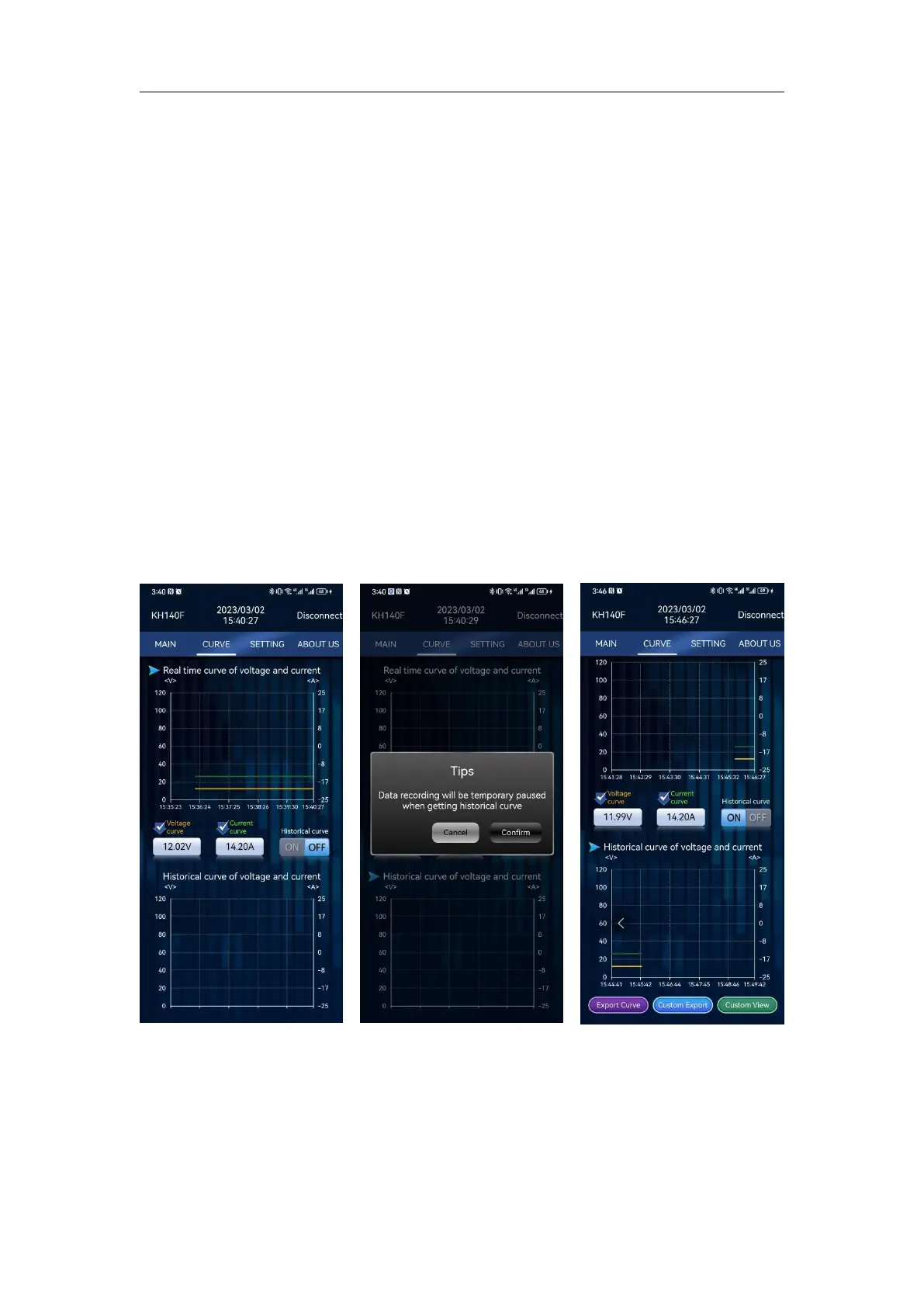

Figure 3-4-25 Voltage
and current real-time
curve
Figure 3-4-26
Temporarily suspend
data recording
Figure 3-4-27 Historical
voltage and current
curve
