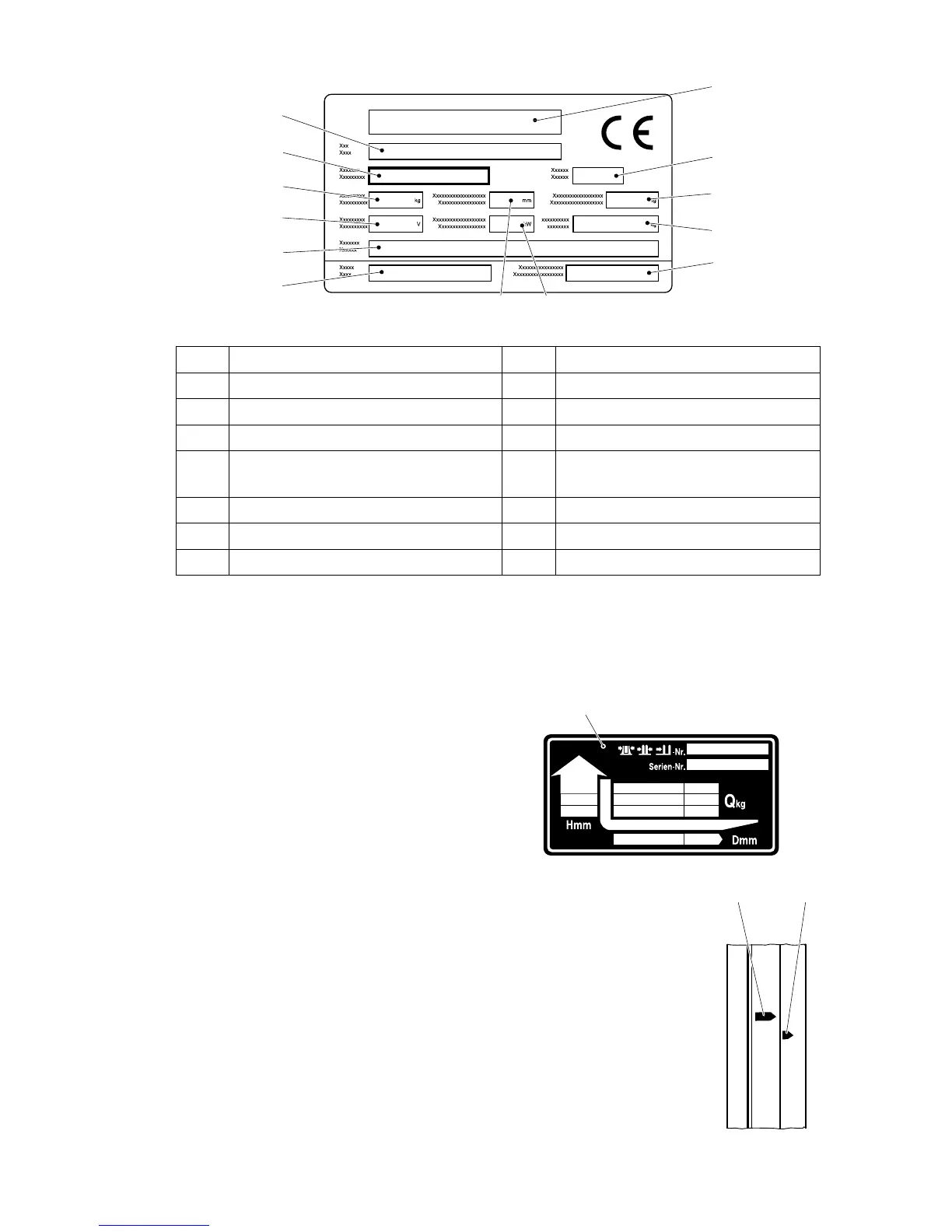

4.1 Truck identification label
A
In the event of queries relating to the truck or spare part orders, please state the serial
no. (28) of the truck.
4.2 Load capacity
f
The label (18) includes a table indicating
the loading capacity
(Q in kg) in relation to the load centre di-
stance (D in mm) and the lifting height (H
in mm).
The arrow-shaped markings on the inner mast (40) and outer mast
(41) show the driver when he has reached the lifting height limits that
is defined on the load capacity label (18).
Item Designation Item Designation
27 Type 34 Drive power in kW
28 Serial No. 35 Customer no.
29 Rated capacity in kg 36 Min./max. battery weight in kg
30 Battery: Voltage V
Ampere hours Ah
37 Dead weight without battery in kg
31 Manufacturer 38 Year of manufacture
32 Order no. 39 Manufacturer logo
33 Load centre distance in mm
27
28
29
30
31
32
34
38
37
36
35
33
39
18
41
40
