C Transportation and commissioning

1 Transportation by crane

Only use lifting equipment with sufficient bearing capacity (loading weight see identi-

fication label on truck).

If trucks are to be lifted that are provided with a wheel-arm lifting device, be careful

not to protrude the lifting cylinders while the truck is being lifted. If the device is com-

pletely protruded, there is the risk that the cylinder protection is being released due

to overloading.

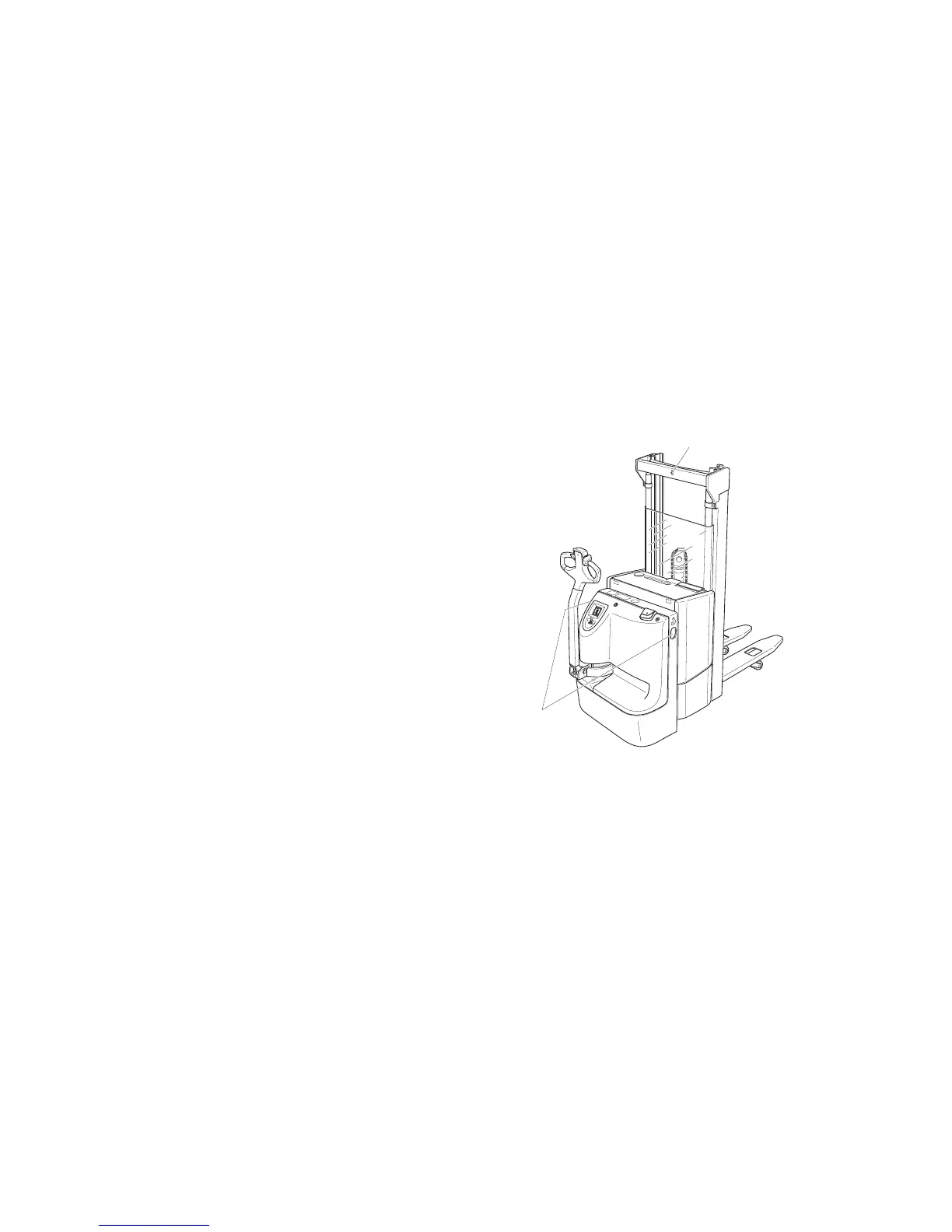

A hoisting point (1) is provided at the hoist frame for loading the truck with the help of

hoisting gear.

Trucks that are provided a with wheel-arm lifting device, have two more hoisting

points (2) for loading.

– Park the truck and render it safe

(refer to chapter E).

– Attach the hoisting gear to the stop (1)

on the hoisting mast.

– In case of trucks that are provided with

a wheel-arm lifting device, the hoisting

gear can also be attached to the stops

(2) on the vehicle chassis.

Secure the hoisting gear to the hoisting

points ensuring that the hoisting gear will

not slip! The hoisting gear must be atta-

ched in such a way that it does touch any

add-on parts while the truck is being lif-

ted.

Trucks with wheel-arm lifting device

must hang horizontally or slightly incli-

ned in the direction of the lifting device.

C 1
