B 7
0509.GB

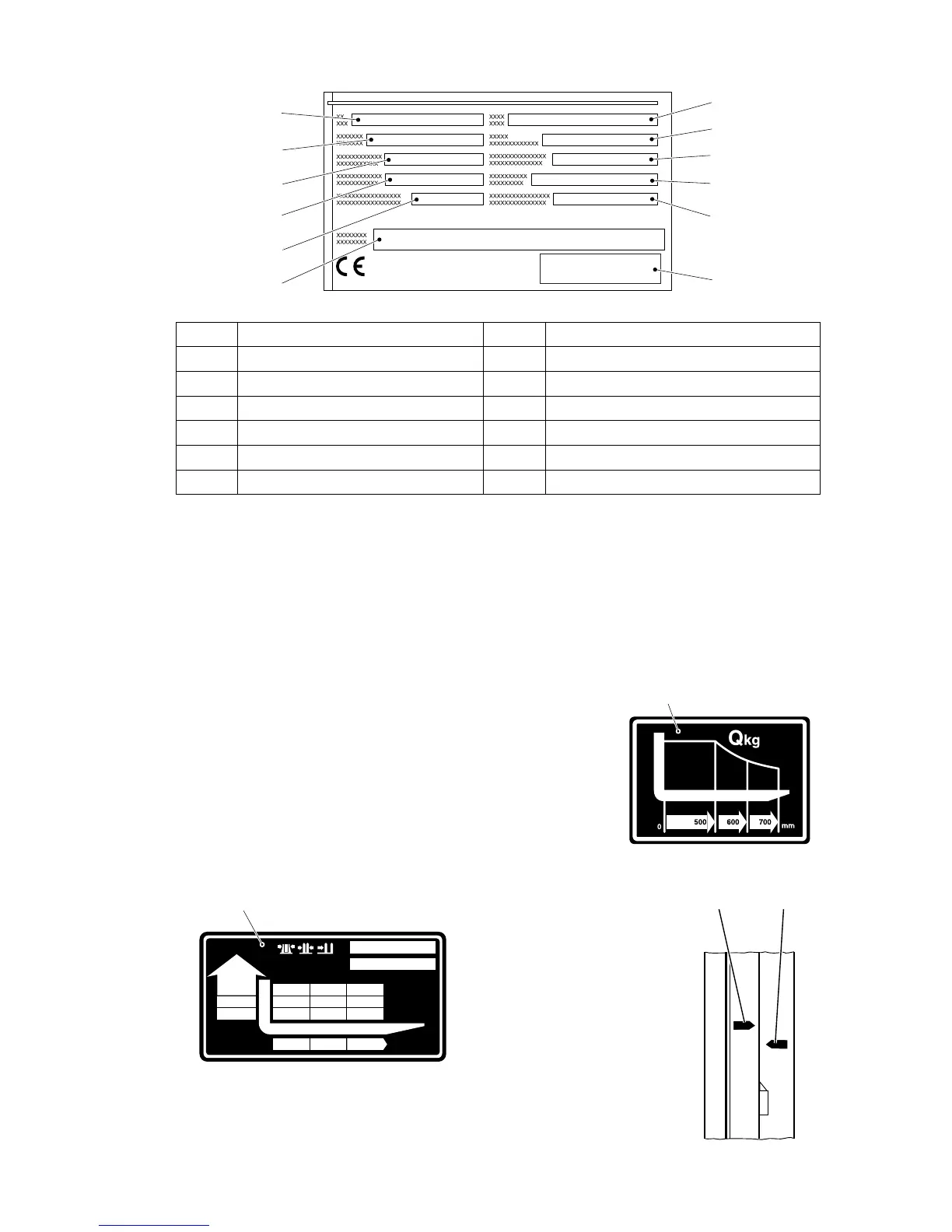

4.1 Data Plate
Z
For truck-related queries or when ordering spare parts always quote the truck serial
number (26).
4.2 Capacity
F
The capacity data with respect to lift height and load centre of gravity distance can be
found on the capacity plate (16).
Depending on the mast fitted, the truck will have one of
the following two capacity plates (16a / 16b): (illustrations
for reference purposes only)
The capacity plate to the right (16a) shows the capacity
(Q in kg) for different load centres of gravity (D in mm) in
diagram form.
The lower plate (16b) gives the capacity (Q in kg) of the
truck as a function of the load centre of gravity distance
(D in mm) and lift height (H in mm) in tabular form.
The arrow shape markings (38 and 39) on the inner mast and bottom
and outer tie bar indicate to the driver when he has exceeded the
height limits specified by the capacity plate (16).
Item Description Item Description
26 Type 32 Manufacturer’s logo
27 Serial no. 33 Min./max. battery weight (kg)
28 Rated capacity (kg) 34 Output (kW)
29 Battery voltage (V) 35 Load centre of gravity (mm)
30 Net weight excl. battery 36 Year of manufacture
31 Manufacturer 37 Option
25
26
27
28
29
30
35
34
31
33
32
36
16a
-Nr.
Serien-Nr.
Dmm
Hmm
Qkg
16b
38 39
B 7
0509.GB
4.1 Data Plate
Z
For truck-related queries or when ordering spare parts always quote the truck serial
number (26).
4.2 Capacity
F
The capacity data with respect to lift height and load centre of gravity distance can be
found on the capacity plate (16).
Depending on the mast fitted, the truck will have one of
the following two capacity plates (16a / 16b): (illustrations
for reference purposes only)
The capacity plate to the right (16a) shows the capacity
(Q in kg) for different load centres of gravity (D in mm) in
diagram form.
The lower plate (16b) gives the capacity (Q in kg) of the
truck as a function of the load centre of gravity distance
(D in mm) and lift height (H in mm) in tabular form.
The arrow shape markings (38 and 39) on the inner mast and bottom
and outer tie bar indicate to the driver when he has exceeded the
height limits specified by the capacity plate (16).
Item Description Item Description
26 Type 32 Manufacturer’s logo
27 Serial no. 33 Min./max. battery weight (kg)
28 Rated capacity (kg) 34 Output (kW)
29 Battery voltage (V) 35 Load centre of gravity (mm)
30 Net weight excl. battery 36 Year of manufacture
31 Manufacturer 37 Option
25
26
27
28
29
30
35
34
31
33
32
36
16a
-Nr.
Serien-Nr.
Dmm
Hmm
Qkg
16b
38 39
