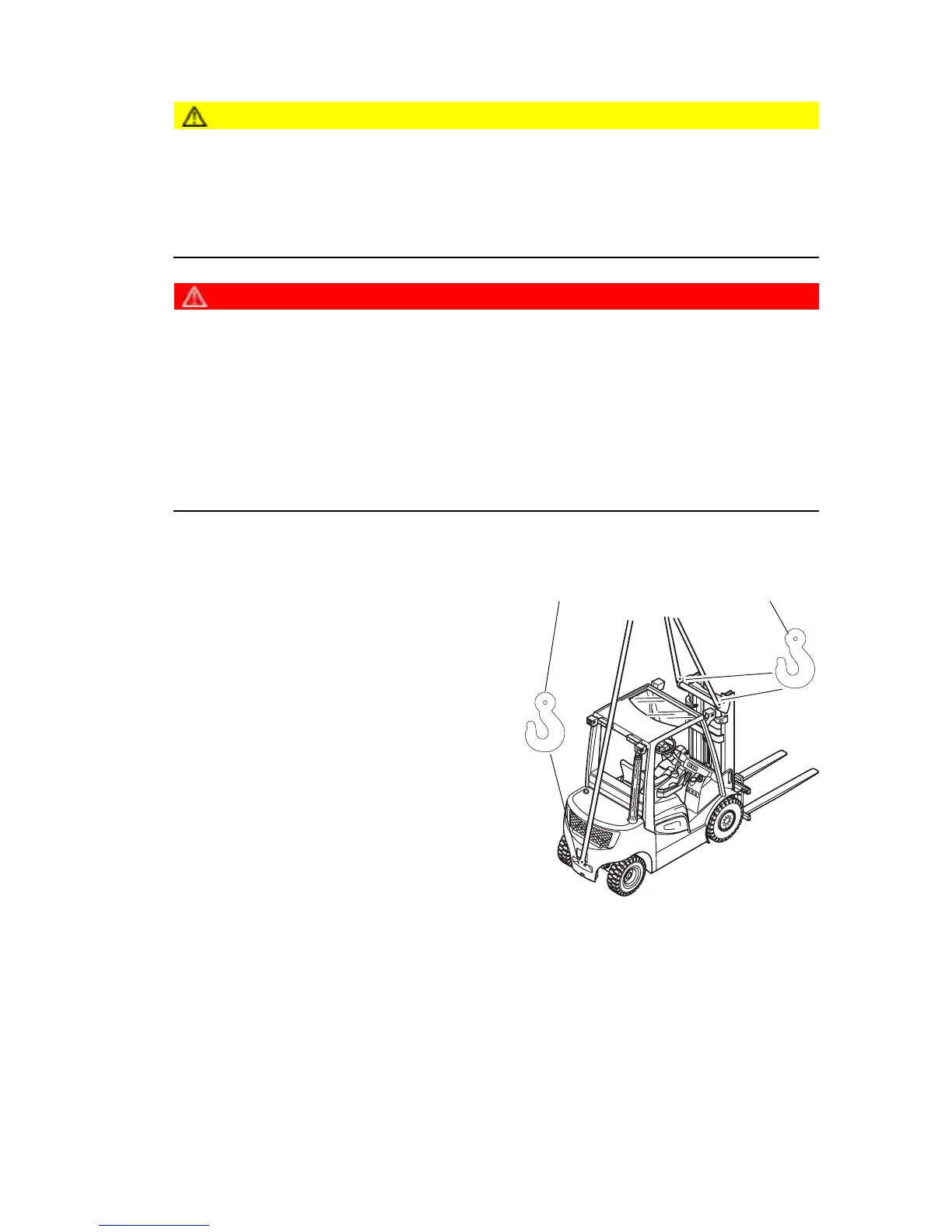

2.2 Lifting the truck by crane
CAUTION!
The mast can get damaged
XLoading by crane is only intended for the initial transport before the truck is used
for the first time.
XLoading must be carried out by specially trained staff in accordance with
recommendations contained in Guidelines VDI 2700 and VDI 2703
DANGER!
Crane slings can tear, resulting in accidents
XOnly use crane lifting gear with sufficient capacity.
XLoading weight = Net weight of truck (+ battery weight for electric trucks).
XThe mast must be tilted back fully.
XThe crane lifting gear on the mast must have a minimum clear length of 2 m.
XCrane slings should be fastened in such a way that they do not come into contact
with any attachments or the overhead guard when lifting.
XDo not stand under a swaying load.
Z Truck net weight: (see "Data plate" on page 29).
Lifting the truck by crane
Requirements
– Park the truck securely, (see "Parking the
truck securely" on page 76).
Procedure
• Secure the crane slings to the attachment
points (47) and (46.
• Raise and load the truck.
• Lower and deposit the truck carefully ((see
"Parking the truck securely" on page 76)).
• Secure the truck with wedges to prevent it
from rolling away.
This concludes the loading by crane.
