JUNO JCN44181 - Furniture Connection; Attaching Covers and Grille; Connecting Appliance to Furniture; Disconnecting Parts

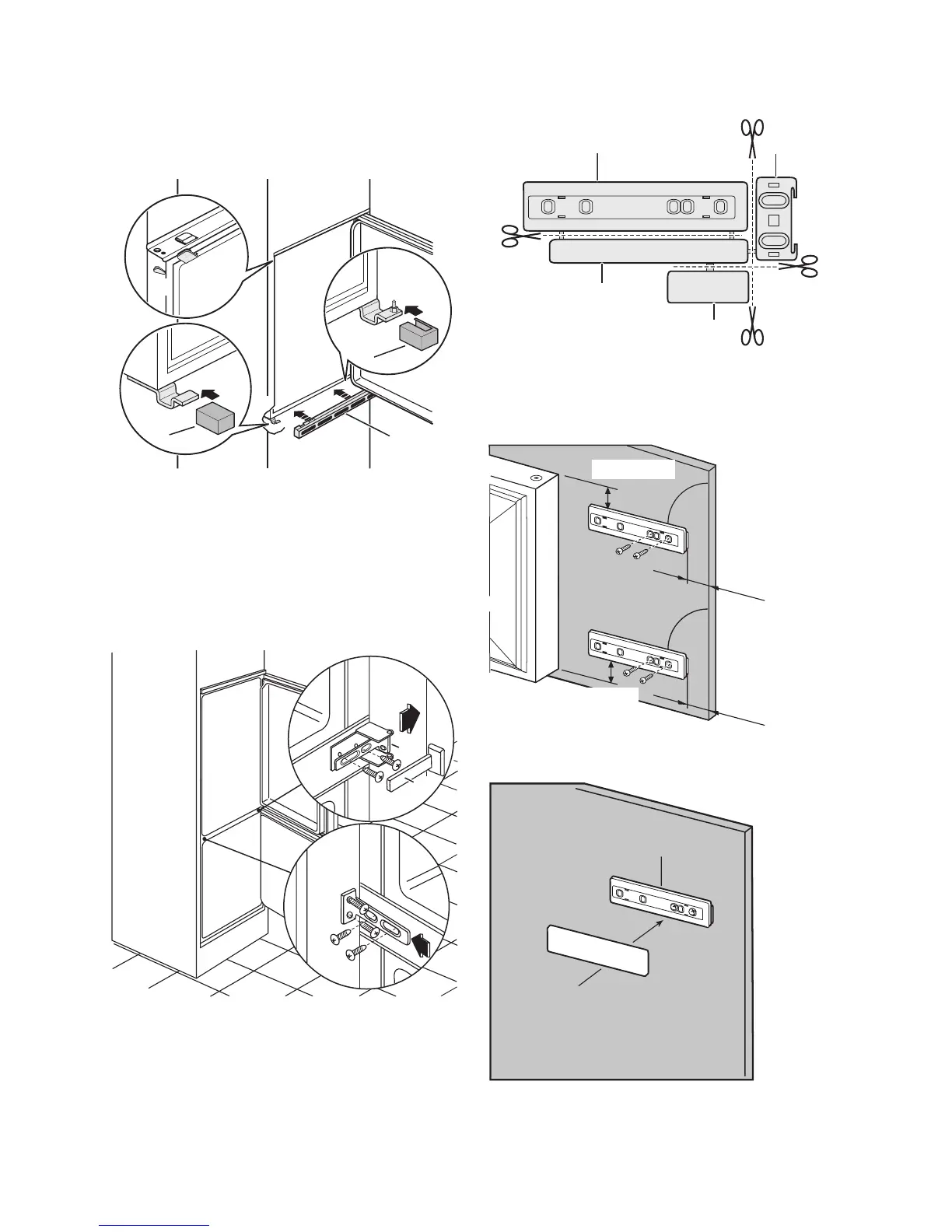

6. Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
B
E
E
D
C
7. Connect the appliance laterally to the
kitchen furniture sidewall:
a) Loosen the screws of the part (G) and
move the part (G) till the furniture
sidewall.
b) Tighten the screws of the part (G)
again.
c) Attach the part (H) to the part (G).
G
H
8. Disconnect the parts (Ha), (Hb), (Hc) and
(Hd).
Ha
Hb
Hc
Hd
9. Install the part (Ha) on the inner side of
the kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
10. Push the part (Hc) on the part (Ha).
Ha
Hc
11. Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide
(Ha).
electrolux 13
