JVC EX-D5 Service Manual

(No.MB433)1-11
3.1.6 Removing the switching power supply
(See Figs.13 and 14)
• Remove the side panels L/R, top panel assembly and rear
panel.
(1) From the top side of the main body, disconnect the wire
from the connector CN200
on the regulator board. (See
Fig.13.)
(2) Take out the switching power supply in the direction of the
arrow. (See Fig.14.)

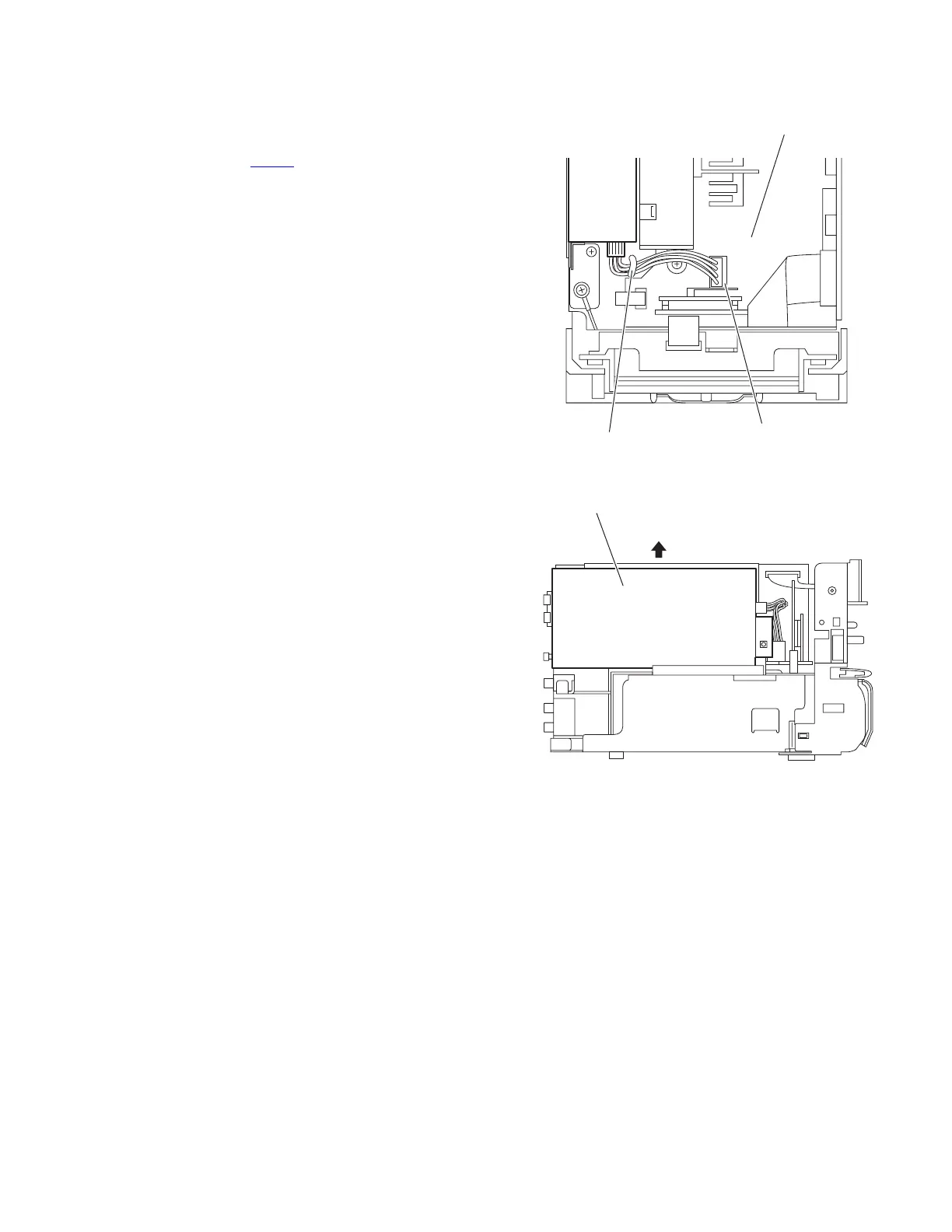

Fig.13
Fig.14
Regulator board
CN200
Wire holder
Switching power supply
