(No.86700)2-7

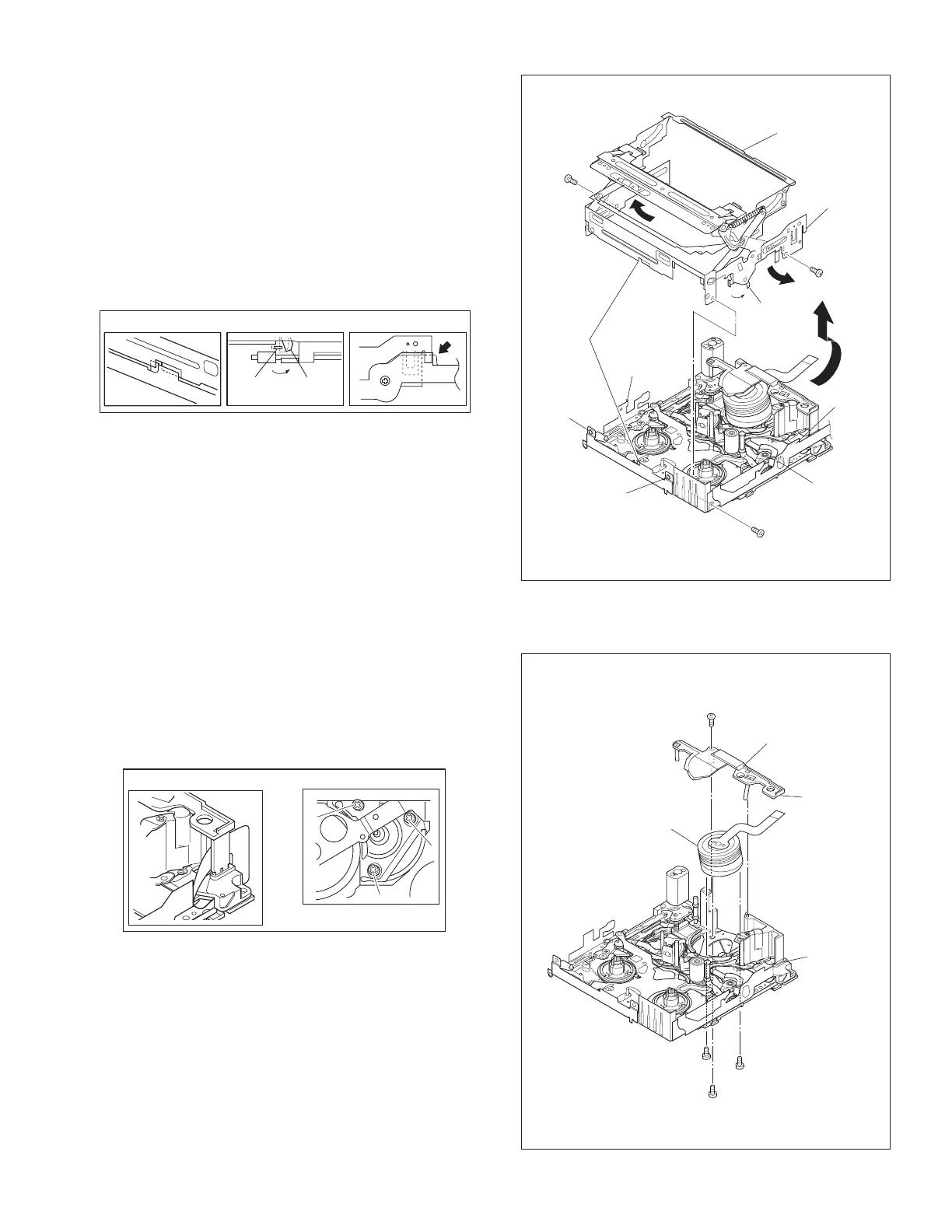

2.1.5 DISASSEMBLY/ASSEMBLY
2.1.5.1 [ 1 ] CASSETTE HOUSING ASSY
NOTE 1a:
Be careful not to damage any of the parts during work.
NOTE 1b:
Special care is required in mounting.
NOTE 1c:
When mounting, the CASSETTE HOUSING ASSY should be
attached in the Eject status. Pay heed to the positions of the
LOCK LEVER and EJECT LEVER during mounting.
NOTE 1d:
When mounting, be sure to locate the FPC in the gap.
Fig.2-1-14
2.1.5.2 [ 2 ] UPPER BASE ASSY
[ 3 ] DRUM ASSY
NOTE 2:
When mounting, be sure to insert the FPC reinforcing sheet.
NOTE 3a:
Be mindful of scratches or damage during work.
NOTE 3b:
Be careful not to attach screws incorrectly.
Fig.2-1-15
NOTE 1b NOTE 1c
LOCK
LEVER
EJECT
LEVER
NOTE 1d
[1]
(S1)
2
*
*
*
* 0.069 N
.
m (0.7 kgf
.
cm)
(S1)
1
NOTE1d
NOTE 1b
NOTE 1a
(S1)
3
(L1d)
LOCK
LEVER
(L1a)
(L1e)
(L1c)
(L1b)
NOTE 1d
NOTE 1c
NOTE 2
5
6
7
NOTE 3b
[2]
[3]
(S2)
4
(S3b)
7
(S3b)
6
(S3a)
5
(L2b)
(L2a)
NOTE 2
NOTE 3a
NOTE 3b
NOTE 2
