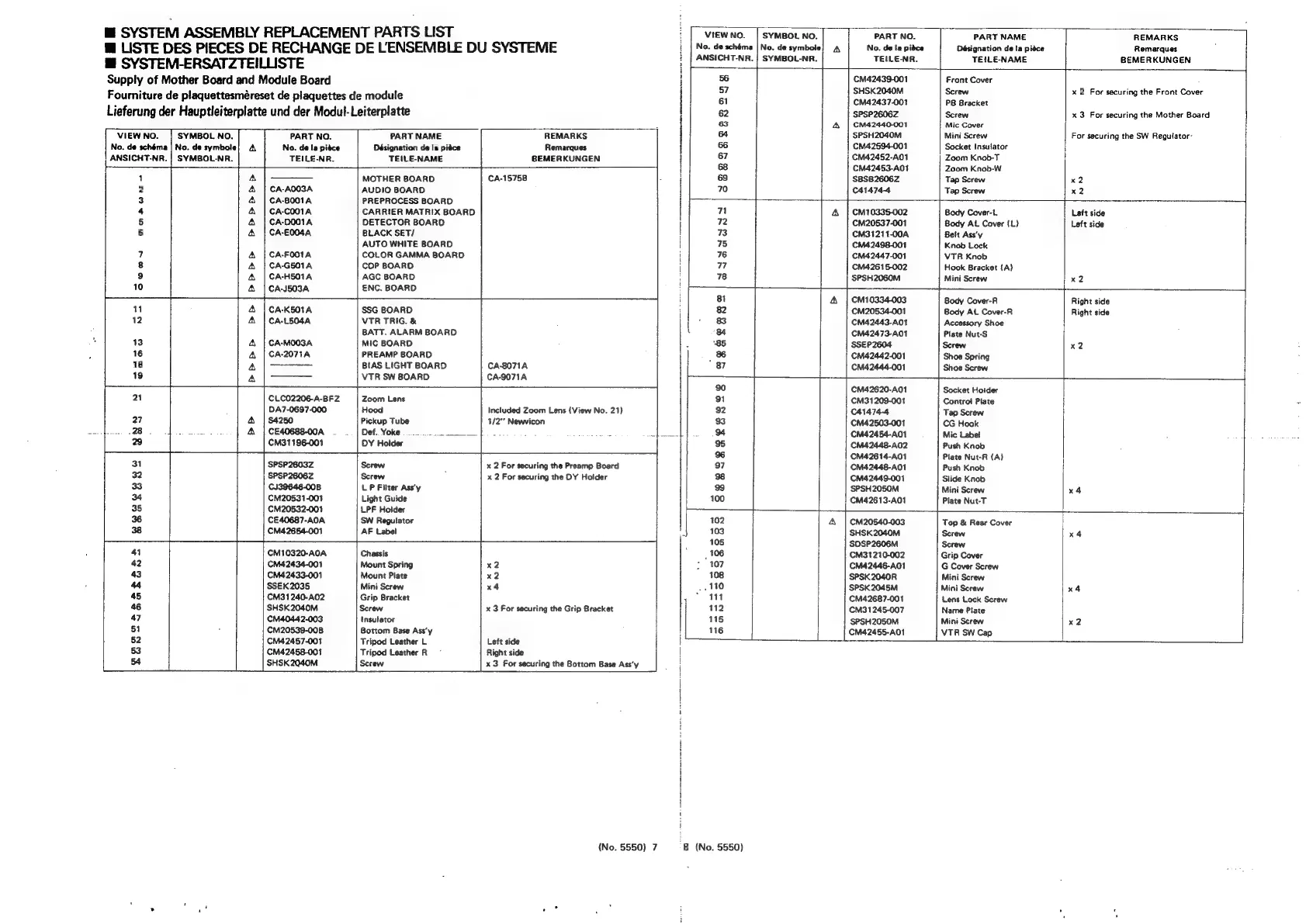

JVC GX-N7E

m@ SYSTEM ASSEMBLY REPLACEMENT PARTS LIST
@ LISTE DES PIECES DE RECHANGE DE LENSEMBLE DU SYSTEME
@ SYSTEM-ERSATZTEILLISTE
Supply of Mother Board and Module Board
Fourniture de plaquettesméreset de plaquettes de module
Lieferung der Hauptleiterplatte und der Modul-Leiterplatte
VIEW NO. SYMBOL NO. PART NO. PART NAME REMARKS
No, de schéma | No. de symbole} A No. de la pice Désignation de la pidce Remarques
[ANSICHT-NR. SYMBOL-NR. TEILE-NR. TEILE-NAME BEMERKUNGEN
1 CS MOTHER BOARD CA-1575B
2 & | CA-A003A AUDIO BOARD
3 & | CA-B001A PREPROCESS BOARD
4 A | CA-COO1A CARRIER MATRIX BOARD
5 & | CA-DOO1A DETECTOR BOARD
6 A | CA-E0044 BLACK SET/
AUTO WHITE BOARD
7 & | CA-FOO1A COLOR GAMMA BOARD
8 & | CA-G5O1A COP BOARO
9 A | CA-H501A AGC BOARD
10 & |CA-J503A ENC. BOARD
11 & | CA-KS5OIA SSG BOARD
12 & | CA-L504A VTR TRIG. &
BATT. ALARM BOARD
13 4 | CA-MO003A MIC BOARD
16 & | CA-2071A PREAMP BOARD
18 A | ee BIAS LIGHT BOARD CA-8071A
19 A VTR SW BOARD CA-9071A
21 CLCO2206-A-BFZ Zoom Lens
DA7-0697-000 Hood Included Zoom Lens (View No. 21}
27 4 | 84250 Pickup Tube 1/2" Newvicon
2. A | CE40688-00A Def. Yoke =
2 CM31196-001 OY Holder
31 SPSP2603Z Screw x 2 For securing the Preamp Board
32 SPSP26062 Screw x 2 For securing the DY Holder
33 CJ39646-00B LP Filter Ass’y
w CM20531-001 Light Guide
35 €M20532-001 LPF Holder
36 CE40687-A0A SW Regulator
38 CM42654-001 AF Label
41 CM10320-A0A Chassis
42 CM42434-001 Mount Spring x2
43 CM42433-001 Mount Plate x2
44 SSEK2035 Mini Screw x4
45 €M31240-A02 Grip Bracket
46 SHSK2040M Screw x 3 For securing the Grip Bracket
47 CM40442-003 Insulator
$1 CM20539-00B Bottom Base Ass’y
52 CM42457-001 Tripod Leather L Left side
53 CM42458-001 Tripod Leather R Right side
54 SHSK2Q40M Screw x3 For securing the Bottom Base Ass’y
(No. 5550) 7
VIEW NO. SYMBOL NO. PART NO. PART NAME REMARKS
No. de schéma | No. de symbole No. de fa pidce Oésignation de la piéce Remarques
ANSICHT-NR. } SYMBOL-NR. TEILE-NR. TEILE-NAME BEMERKUNGEN
56 C©M42439-001 Front Cover
57 SHSK2040M Screw x 2 For securing the Front Cover
61 CM42437-001 PB Bracket
62 SPSP2606Z Screw x 3 For securing the Mother Board
63 ©M42440-001 Mic Cover
64 SPSH2040M Mini Screw For securing the SW Regutator-
66 CM42594-001 Socket Insulator
67 CM42452-A01 Zoom Knob-T
68 CM42453-A01 Zoom Knob-W
69 S8SB2606Z Tap Screw x2
70 C41474-4 Tap Screw x2
71 CM10335-002 Body Cover-t. Left side
72 CM20537-001 Body AL Cover (L) Left side
73 CM31211-00A Belt Ass‘'y
75 CM42498-001 Knob Lock
76 CM42447-001 VTR Knob
7 CM42615-002 Hook Bracket (A}
78 SPSH2060M Mini Scre x
Screw als 2
CM10334-003 Body Cover-R Right side
CM20534-001 Body AL Cover-R Right side
CM42443-A01 Accessory Shoe
CM42473-A01 Plate Nut-S
SSEP2604 Screw x2
CM42442-001 Shoe Spring
CM42444-001 Shoe Screw
+ ~
CM42620-A01 wT eeuee Hoider
CM31209-001 Control Plate
C41474-4 Tap Screw
CM42503-001 CG Hook
CM42454-A01 Mic Labet
CM42448-A02 Push Knob
CM42614-A01 Plate Nut-R (A)
CM42448-A01 Push Knob
CM42449-001 Slide Knob
SPSH2050M Mini Screw x4
CM42613-A01 Plate Nut-T
CM20540-003 Top & Rear Cover
SHSK2040M Screw x4
105 SOSP2606M Screw
_ 106 CM31210-002 Grip Cover
107 CM42446-A01 G Cover Screw
108 SPSK2040R Mini Screw
110 SPSK2045M Mini Screw x4
111 CM42687-001 Lens Lock Screw
112 CM31245-007 Name Plate
115 SPSH2050M Mini Screw x2
116 CM42455-A01 VTR SW Cap
8 (No. 5550)
