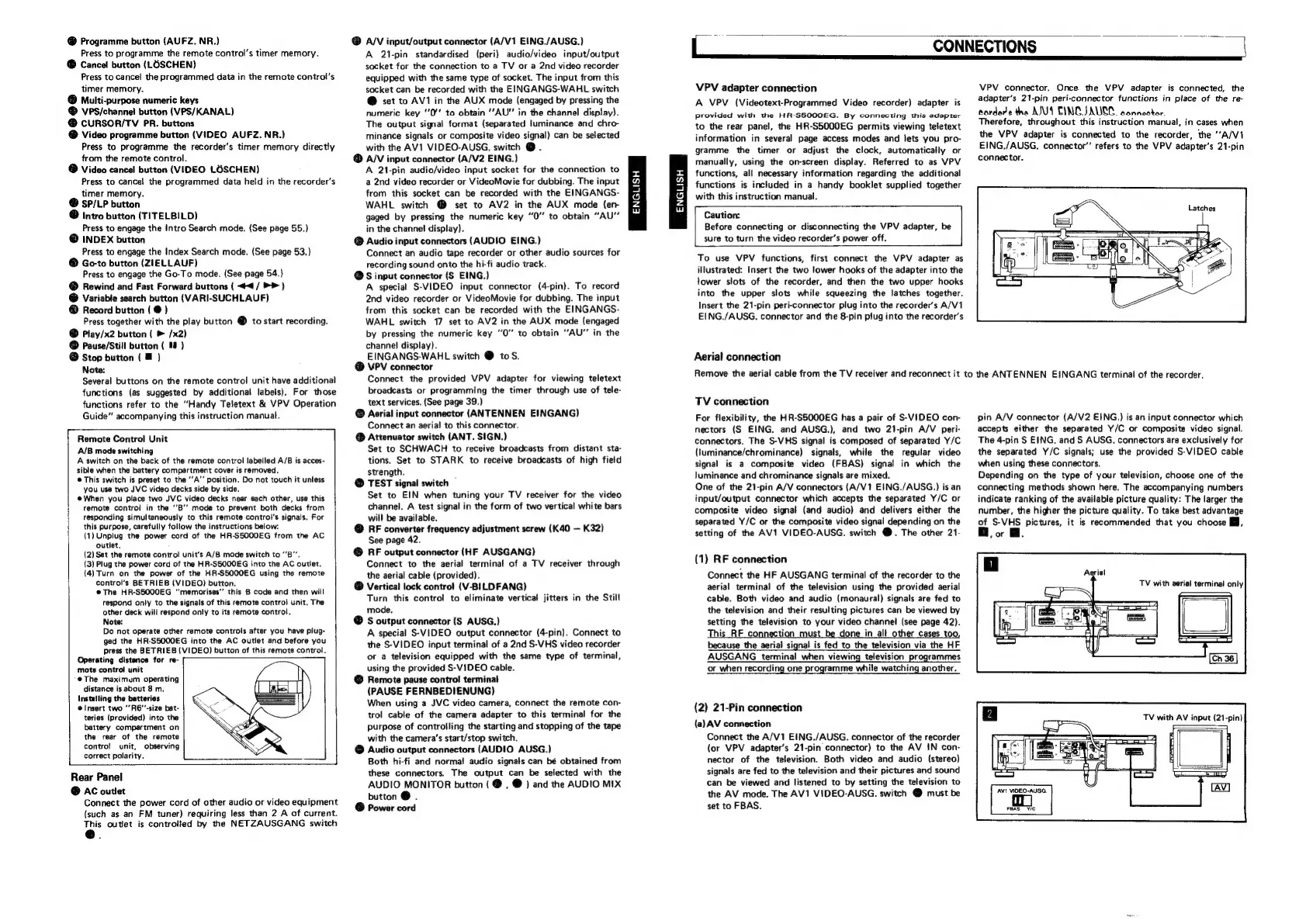

@ Programme button (AUFZ. NR.)
Press to programme the remote control’s timer memory.
® Cancel button (LOSCHEN)
Press to cancel the programmed data in the remote control's
timer memory.
@ Multi-purpose numeric keys
@ VPS/channel button (VPS/KANAL)
@ CURSOR/TV PR. buttons
® Video programme button (VIDEO AUFZ. NR.)
Press to programme the recorder’s timer memory directly
from the remote control.
® Video cancel button (VIDEO LOSCHEN)
Press to cancel the programmed data held in the recorder’s
timer memory.
@ SP/LP button
@ intro button (TITELBILD)
Press to engage the Intro Search mode. (See page 55.)
® INDEX button
Press to engage the Index Search mode. (See page 53.)
® Go-to button (ZIELLAUF)
Press to engage the Go-To mode. (See page 54.)
@® Rewind and Fast Forward buttons ( <4 / >>)
@ Variable search button (VARI-SUCHLAUF)
@® Record button ( @ )
Press together with the play button @ to start recording.
@® Play/x2 button ( » /x2)
@® Pause/Still button ( 18 )
@ Stop button ( @ )
Note:
Several buttons on the remote control unit have additional
functions (as suggested by additional labels). For those
functions refer to the “Handy Teletext & VPV Operation
Guide” accompanying this instruction manual.
Remote Control Unit
A/B mode switching
A switch on the back of the remote control labelled A/B is acces-
sible when the battery compartment cover is removed,
® This switch is preset to the '‘A’’ position. Do not touch it unless
you use two JVC video decks side by side.
@When you place two JVC video decks near each other, use this
remote contro! in the “’B’’ mode to prevent both decks from
responding simultaneously to this remote control’s signals. For
this purpose, carefully follow the instructions below:
(1) Unplug the power cord of the HR-SSOOGEG from the AC
outlet,
(2) Set the remote control unit’s A/B mode switch to ’B"’.
(3) Plug the power cord of the HR-SSOOOEG into the AC outlet.
(4) Turn on the power of the HR-SSOOOEG using the remote
control’s BETRIEB (VIDEO) button.
@The HR-SSOOOEG "memorises’’ this B code and then will
respond only to the signals of this remote control unit, The
other deck will respond only to its remote control.
Note:
Do not operate other remote controls after you have piug-
ged the HR-SSOOOEG into the AC outlet and before you
press the BETRIEB (VIDEO) button of this remote control,
Operating distance for re-
mote control unit
‘@The maximum operating
distance is about 8 m,
Installing the batteries <
[af
@ Insart two ‘’ R6''-size bat- QC : Ne
teries (provided) into the WS
battery compartment on
the rear of the remote
control unit, observing
correct polarity.
Rear Panel
@ AC outlet
Connect the power cord of other audio or video equipment
(such as an FM tuner) requiring less than 2 A of current.
This outlet is controlled by the NETZAUSGANG switch
@ A/V input/output connector (A/V1 EING./AUSG.)
A 21-pin standardised (peri) audio/video input/output
socket for the connection to a TV or a 2nd video recorder
equipped with the same type of socket. The input from this
socket can be recorded with the EINGANGS-WAHL switch
@ set to AV1 in the AUX mode (engaged by pressing the
numeric key "0! to obtain ‘’AU" in the channel display).
The output signal format {separated luminance and chro-
minance signals or composite video signal) can be selected
with the AV1 VIDEO-AUSG. switch @ .
@ A/V input connector (A/V2 EING.)
A 21-pin audio/video input socket for the connection to
a 2nd video recorder or VideoMovie for dubbing. The input
from this socket can be recorded with the EINGANGS-
WAHL switch @ set to AV2 in the AUX mode (en
gaged by pressing the numeric key “0” to obtain “AU”
in the channel display).
@® Audio input connectors (AUDIO EING.)
Connect an audio tape recorder or other audio sources for
recording sound onto the hi-fi audio track.
@ S input connector (S EING.)
A special $-VIDEO input connector (4-pin). To record
2nd video recorder or VideoMovie for dubbing. The input
from this socket can be recorded with the EINGANGS-
WAHL switch 17 set to AV2 in the AUX mode (engaged
by pressing the numeric key “0” to obtain “AU” in the
channe! display).
EINGANGS-WAHL switch @ toS.
@ VPV connector
Connect the provided VPV adapter for viewing teletext
broadcasts or programming the timer through use of tele-
text services. (See page 39.)
® Aerial input connector (ANTENNEN EINGANG)
Connect an aerial to this connector.
@ Attenuator switch (ANT. SIGN.)
Set to SCHWACH to receive broadcasts from distant sta-
tions. Set to STARK to receive broadcasts of high field
strength.
@ TEST signal switch
Set to EIN when tuning your TV receiver for the video
channel. A test signal in the form of two vertical white bars
will be available.
@ RF converter frequency adjustment screw (K40 — K32)
See page 42.
@ RF output connector (HF AUSGANG)
Connect to the aerial terminal of a TV receiver through
the aerial cable (provided).
@ Vertical lock contro! (V-BILDFANG)
Turn this control to eliminate vertical jitters in the Stil!
mode.
® S output connector (S AUSG.)
A special S-VIDEO output connector (4-pin). Connect to
the S-VIDEO input terminal of a 2nd S-VHS video recorder
or a television equipped with the same type of terminal,
using the provided S-VIDEO cable.
@ Remote pause control terminal
(PAUSE FERNBEDIENUNG)
When using a JVC video camera, connect the remote con-
trol cable of the camera adapter to this terminal for the
purpose of controlling the starting and stopping of the tape
with the camera's start/stop switch.
@ Audio output connectors (AUDIO AUSG.)
Both hi-fi and normai audio signals can bé obtained from
these connectors. The output can be selected with the
AUDIO MONITOR button ( @ , @ ) and the AUDIO MIX
button @ .
@ Power cord
ENGLISH
ENGLISH
L_ CONNECTIONS |
VPV adapter connection
A VPV (Videotext-Programmed Video recorder) adapter is
provided with the HR-S5000EG. By connecting this adapter
to the rear panel, the HR-SSOOOEG permits viewing teletext
information in several page access modes and lets you pro-
gramme the timer or adjust the clock, automatically or
manually, using the on-screen display. Referred to as VPV
functions, all necessary information regarding the additional
functions is included in a handy booklet supplied together
with this instruction manual.
Caution:
Before connecting or disconnecting the VPV adapter, be
sure to turn the video recorder’s power off.
To use VPV functions, first connect the VPV adapter as
illustrated: Insert the two lower hooks of the adapter into the
fower slots of the recorder, and then the two upper hooks
into the upper slots while squeezing the latches together.
Insert the 21-pin peri-connector plug into the recorder’s A/V1
EING./AUSG. connector and the 8-pin plug into the recorder’s
Aerial connection
VPV connector. Once the VPV adapter is connected, the
adapter’s 21-pin peri-connector functions in place of the re-
corders the A’ EINGJAUICR, connector.
Therefore, throughout this instruction manual, in cases when
the VPV adapter is connected to the recorder, the “A/V1
EING./AUSG. connector” refers to the VPV adapter’s 21-pin
connector.
Remove the aerial cable from the TV receiver and reconnect it to the ANTENNEN EJNGANG terminal of the recorder.
TV connection
For flexibility, the HR-SSOOOEG has a pair of S-VIDEO con-
nectors (S EING. and AUSG.), and two 21-pin A/V peri-
connectors. The S-VHS signal is composed of separated Y/C
(luminance/chrominance) signals, while the regular video
signal is a composite video (FBAS) signal in which the
luminance and chrominance signals are mixed.
One of the 21-pin A/V connectors (A/V1 EING./AUSG.) is an
input/output connector which accepts the separated Y/C or
composite video signal (and audio) and delivers either the
separated Y/C or the composite video signal depending on the
setting of the AV1 VIDEO-AUSG. switch @. The other 21-
(1) RF connection
Connect the HF AUSGANG terminal of the recorder to the
aerial terminal of the television using the provided aerial
cable. Both video and audio (monaural) signals are fed to
the television and their resulting pictures can be viewed by
setting the television to your video channel (see page 42).
This RF connection must be done in all other cases too,
because the aerial signal is fed to the television via the HF
AUSGANG terminal_when viewing television programmes
or when recording one programme while watching another.
(2) 21-Pin connection
(a) AV connection
Connect the A/V1 EING./AUSG. connector of the recorder
(or VPV adapter’s 21-pin connector) to the AV !N con-
nector of the television. Both video and audio (stereo)
signals are fed to the television and their pictures and sound
can be viewed and listened to by setting the television to
the AV mode. The AV1 VIDEO-AUSG. switch @ must be
set to FBAS.
pin A/V connector (A/V2 EING.) is an input connector which
accepts either the separated Y/C or composite video signal.
The 4-pin S EING. and S AUSG. connectors are exctusively for
the separated Y/C signals; use the provided S-VIDEO cable
when using these connectors.
Depending on the type of your television, choose one of the
connecting methods shown here. The accompanying numbers
indicate ranking of the available picture quality: The larger the
number, the higher the picture quality. To take best advantage
of S-VHS pictures, it is recommended that you choose Hl,
Bio @
TV with AV input (21-pin)

JVC HR-S5000 Specifications

Power

power requirement	220 V, 50/60 Hz
power consumption	44 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	-20°C to 60°C
operating humidity	25% to 80%
storage humidity	35% to 80%

Video Specifications

video signal system	PAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)	More than 400 lines
horizontal resolution (VHS)	250 lines

Audio Specifications

frequency response	20 Hz — 20, 000 Hz
dynamic range	More than 90 dB
wow and flutter	Less than 0.005 % WRMS

TV Tuner/RF Section

channel storage capacity	48 channels
aerial input VHF frequency range	47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range	470 — 862 MHz

Weight and Dimensions

width	435 mm
height	105 mm
depth	380 mm
weight	7.4 kg
