JVC HR-S5000 User Manual

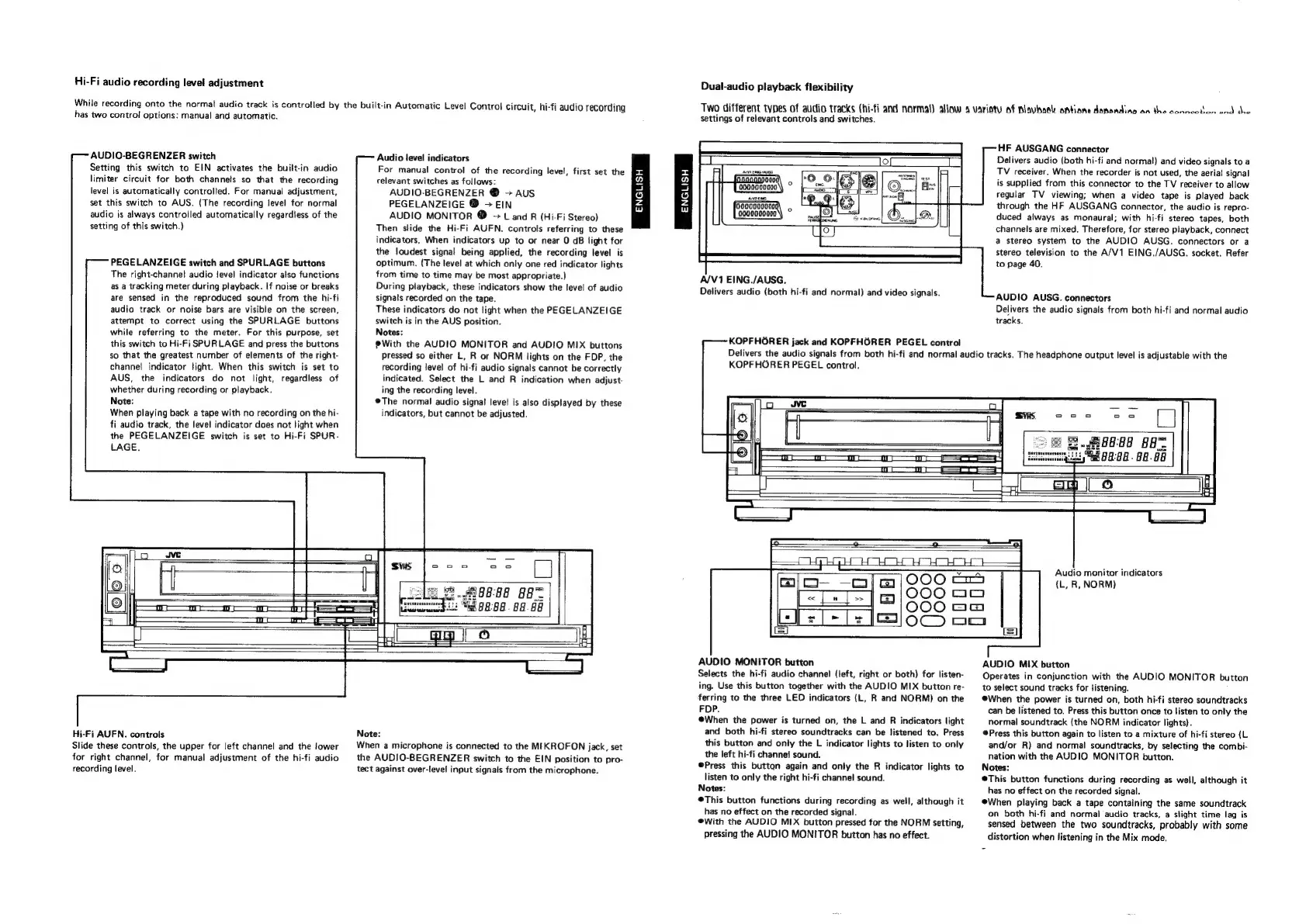

Hi-Fi audio recording level adjustment
While
recording
onto
the
normal
audio
track
is
controlled
by
the
built-in
Automatic
Level
Control
circuit,
hi-fi
audio
recording
has two control options: manual and automatic.
AUDIO-BEGRENZER switch
Setting this switch to EIN activates the built-in audio
limiter circuit for both channels so that the recording
level is automatically controlled. For manual adjustment,
set this switch to AUS. (The recording level for normal
audio is always controlled automatically regardless of the
setting of this switch.)
PEGELANZEIGE switch and SPURLAGE buttons
The right-channel audio evel indicator also functions
as a tracking meter during playback. If noise or breaks
are sensed in the reproduced sound from the hi-fi
audio track or noise bars are visible on the screen,
attempt to correct using the SPURLAGE buttons
while referring to the meter. For this purpose, set
this switch to Hi-Fi SPURLAGE and press the buttons
so that the greatest number of elements of the right-
channel indicator tight. When this switch is set to
AUS, the indicators do not light, regardless of
whether during recording or playback.
Note:
When playing back a tape with no recording on the hi-
fi audio track, the level indicator does not light when
the PEGELANZEIGE switch is set to Hi-Fi SPUR-
Audio level indicators
For manual control of the recording level, first set the
relevant switches as follows:
AUDIO-BEGRENZER ® > Aus
PEGELANZEIGE ® = EIN
AUDIO MONITOR ® = L and R (Hi-Fi Stereo)
Then slide the Hi-Fi AUFN. controls referring to these
indicators, When indicators up to or near O dB light for
the loudest signal being applied, the recording level is
optimum. (The level at which only one red indicator lights
from time to time may be most appropriate.)
During playback, these indicators show the level of audio
signals recorded on the tape.
These indicators do not light when the PEGELANZEIGE
switch is in the AUS position.
Notes:
@With the AUDIO MONITOR and AUDIO MIX buttons
Pressed so either L, R or NORM lights on the FDP, the
recording level of hi-fi audio signals cannot be correctly
indicated. Select the L and R indication when adjust-
ing the recording level.
©The normal audio signal level is also displayed by these
indicators, but cannot be adjusted.
2 88:08 8A"
LAGE.
AVC
i. — =
Sie
=
— HT
a OB-88 88.88
[Oo
Hi-Fi AUFN. controls
Slide these controls, the upper for left channel and the lower
for right channel, for manual adjustment of the hi-fi audio
recording level.
Note:
When a microphone is connected to the MIKROFON jack, set
the AUDIO-BEGRENZER switch to the EIN position to pro-
tect against over-level input signals from the microphone.
ENGLISH
ENGLISH
Dual-audio playback flexibility
Two different types of audio tracks (hi-fi and normal) allow 5 variaty of plavhasl options dapanding an the conncetlon and the
settings of relevant controls and switches.
A/V1 EING./AUSG.
Delivers audio (both hi-fi and normal) and video signals.
KOPFHORER jack and KOPFHORER PEGEL control
KOPFHORER PEGEL control.
HF AUSGANG connector
Delivers audio (both hi-fi and normal) and video signals to a
TV receiver. When the recorder is not used, the aerial signal
is supplied from this connector to the TV receiver to allow
regular TV viewing; when a video tape is played back
through the HF AUSGANG connector, the audio is repro-
duced always as monaural; with hi-fi stereo tapes, both
channels are mixed. Therefore, for stereo playback, connect
a stereo system to the AUDIO AUSG. connectors or a
stereo television to the A/V1 EING./AUSG. socket. Refer
to page 40.
AUDIO AUSG. connectors
Delivers the audio signals from both hi-fi and normal audio
tracks.
Delivers the audio signals from both hi-fi and normal audio tracks. The headphone output level is adjustable with the
-BB-B8 BBM
8 88-08. 88.88
AUDIO MONITOR button
Selects the hi-fi audio channel (left, right or both) for listen-
ing. Use this button together with the AUDIO MIX button re-
ferring to the three LED indicators (L, R and NORM) on the
FDP.
®@When the power is turned on, the L and R indicators light
and both hi-fi stereo soundtracks can be listened to. Press
this button and only the L indicator lights to listen to only
the left hi-fi channel sound.
@Press this button again and only the R indicator lights to
listen to only the right hi-fi channel sound.
Notes:
®This button functions during recording as well, although it
has no effect on the recorded signal.
With the AUDIO MIX button pressed for the NORM setting,
pressing the AUDIO MONITOR button has no effect.
Audio monitor indicators
{L, R, NORM)
AUDIO MIX button
Operates in conjunction with the AUDIO MONITOR button
to select sound tracks for listening.
@When the power is turned on, both hi-fi stereo soundtracks
can be listened to. Press this button once to listen to only the
normal soundtrack (the NORM indicator lights}.
©Press this button again to listen to a mixture of hi-fi stereo (L
and/or R) and normal soundtracks, by selecting the combi-
nation with the AUDIO MONITOR button.
Notes:
®This button functions during recording as well, although it
has no effect on the recorded signal.
@When playing back a tape containing the same soundtrack
on both hi-fi and normal audio tracks, a slight time lag is
sensed between the two soundtracks, probably with some
distortion when listening in the Mix mode.

JVC HR-S5000 Specifications

Power

power requirement	220 V, 50/60 Hz
power consumption	44 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	-20°C to 60°C
operating humidity	25% to 80%
storage humidity	35% to 80%

Video Specifications

video signal system	PAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)	More than 400 lines
horizontal resolution (VHS)	250 lines

Audio Specifications

frequency response	20 Hz — 20, 000 Hz
dynamic range	More than 90 dB
wow and flutter	Less than 0.005 % WRMS

TV Tuner/RF Section

channel storage capacity	48 channels
aerial input VHF frequency range	47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range	470 — 862 MHz

Weight and Dimensions

width	435 mm
height	105 mm
depth	380 mm
weight	7.4 kg
