JVC HR-XV1EK Service Manual

1-2
DISASSEMBLY INSTRUCTIONS

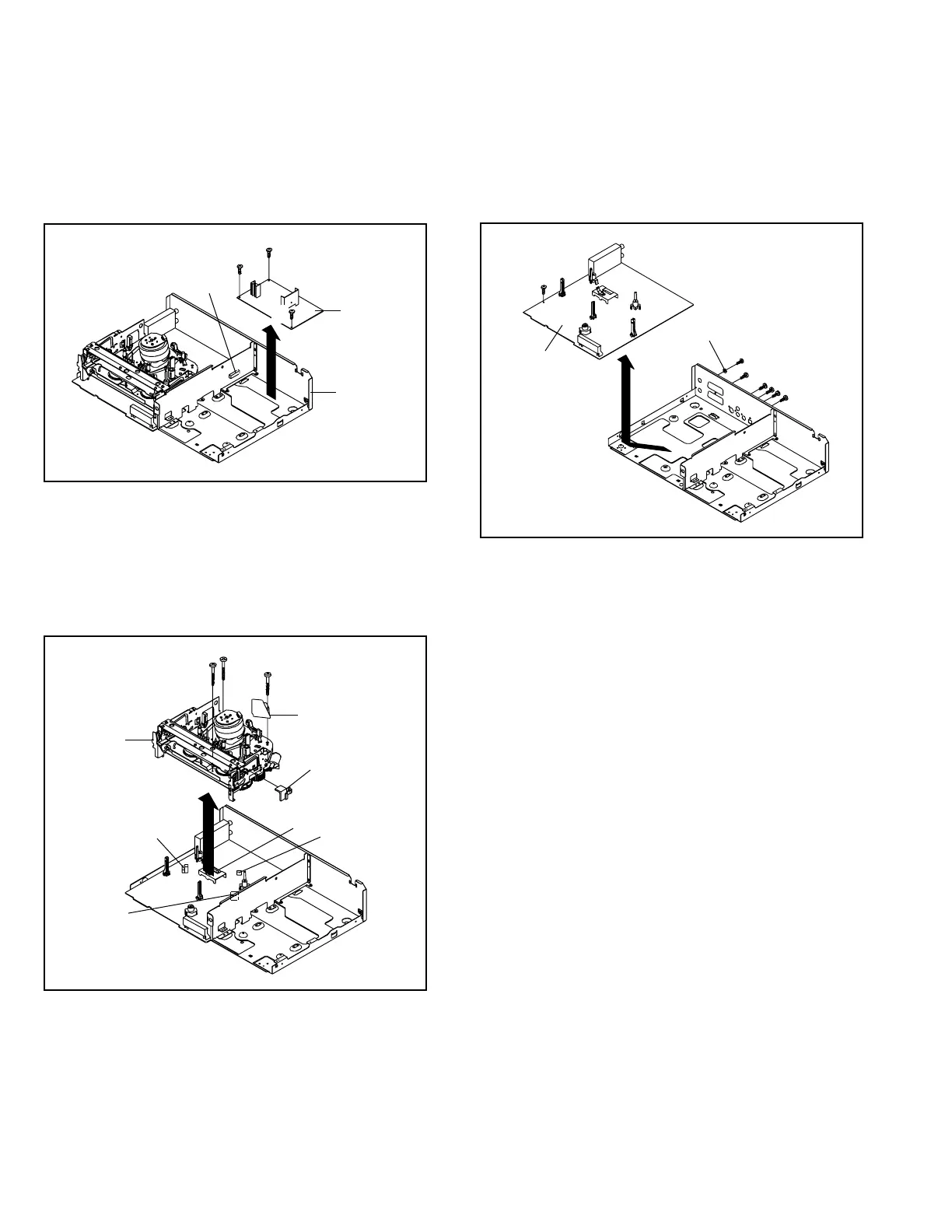

1-4: POWER PCB (Refer to Fig. 1-4)
1.
2.
3.
Disconnect the following connector: (CP1701).
Remove the 3 screws 1.
Remove the Power PCB in the direction of arrow.
Fig. 1-4
1-5: VCR DECK (Refer to Fig. 1-5)
1.
2.
3.
4.
Unlock the 2 supports 1 and remove the Top Holder.
Remove the 3 screws 2.
Disconnect the following connectors: (CP101, CP102,
CP103 and CP3001).
Remove the AC Head Cover and VCR Deck in the
direction of arrow.
1-6: VCR PCB (Refer to Fig. 1-6)
1.
2.
3.
Remove the screw 1 and Fiber Washer.
Remove the 6 screws 2.
Remove the VCR PCB in the direction of arrow.
Fig. 1-5
Fig. 1-6
2
VCR PCB
1
2
2
2
2
2
Power PCB
1
1
Bottom Plate
1
CP1701
2
2
2
VCR Deck
CP101
CP102
CP103
CP3001
Top Holder
1
1
AC Head Cover
Fiber Washer

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
