3.2.10 Removing the spindle motor
(See Fig.20)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the bottom side of the CD mechanism assembly, re-
move the T.table assembly and washer from the spindle
motor.
(2) Remove the two screws H attaching the spindle motor.
Caution:
Perform adjustment when reattaching the spindle motor.

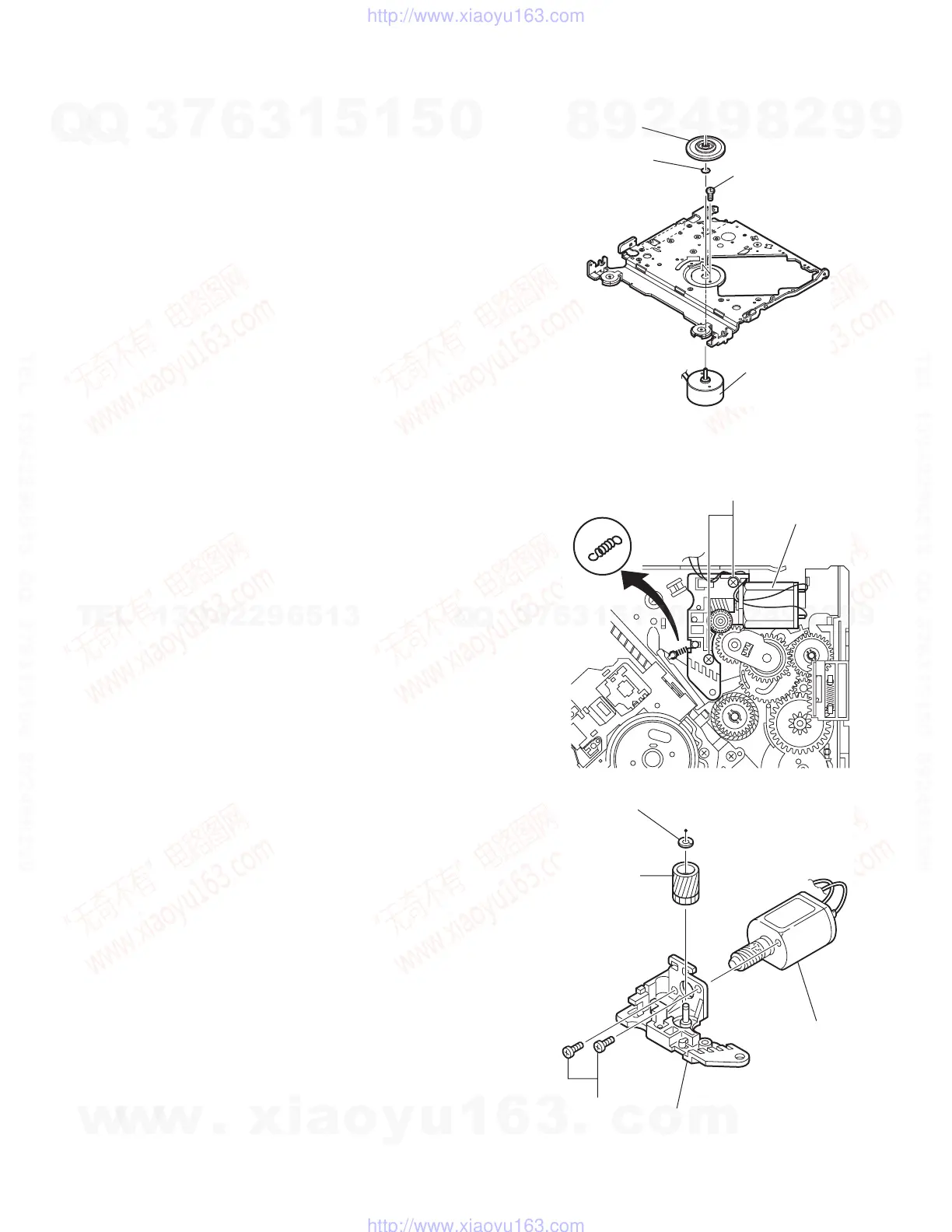

Fig.20
3.2.11 Removing the FL motor S.A.
(See Figs.21 and 22)
• Prior to performing the following procedure, remove the front-
end board.
(1) From the top side of the CD mechanism assembly, remove
the F.T.spring. (See Fig.21)
(2) Remove the two screws J attaching the FL motor S.A. (See
Fig.21)
(3) Remove the slit washer from the motor H.assembly and
pull out the worm wheel. (See Fig.22)
(4) Remove the two screws K attaching the FL motor. (See
Fig.22)
Fig.21
Fig.22
Washer
H
T. table assembly
Spindle motor
J
FL Motor S.A.
F.T.Spring
FL Moto
Motor H.assembly
Worm wheel
K
Slit washer
