D
Other external component
CAUTION:
Before connecting the external components, make sure that the unit is turned off.

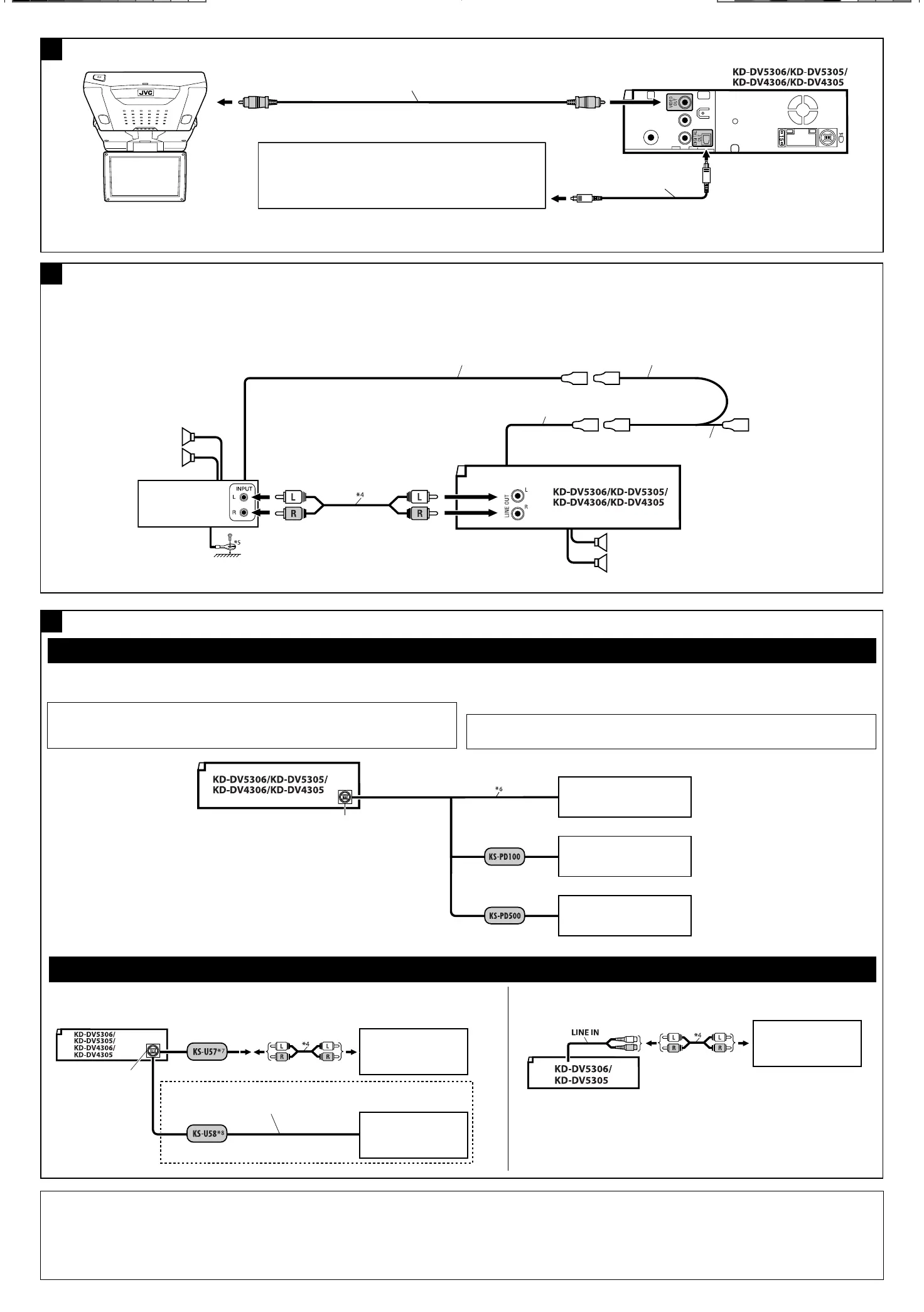

Connecting the external components
JVC CD changer
3.5 mm stereo mini plug
• Set “EXT IN” for the external input setting (See page 24 of the INSTRUCTIONS.
• Set “CHANGER” for the external input setting (See page 24 of the INSTRUCTIONS.)
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
JVC CD changer, Apple iPod, or JVC D. player
F
E
CD changer jack
External component
Connecting the external amplifier
You can connect an amplifier to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
• Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused.
Rear speakers
JVC Amplifier
Remote lead
Y-connector
*
3
Remote lead (blue with white stripe)
To the remote lead of other equipment or automatic antenna if any
Front speakers
Required connections for DVD playback
Audio/video control amplifier or the decoder compatible with the
multichannel digital sources
KV-MR9010
9-INCH WIDESCREEN MONITOR *
3
Digital optical cable *
3
Apple iPod
JVC D. player
CD changer jack
You can connect these components as illustrated below. The iPod or D. player can be connected using an interface adapter (not supplied)—KS-PD100 (for iPod) or KS-PD500 (for D. player).
Video cord *
3
or
or
External component
Only for KD-DV5306/KD-DV5305
External component
*
3
Not supplied for this unit.
*
4
Signal cord (not supplied for this unit).
*
5
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.
*
6
Connecting cord supplied for your CD changer.
*
7
Line Input Adapter KS-U57 (not supplied for this unit).
*
8
AUX Input Adapter KS-U58 (not supplied for this unit).
or
