32
STEERING
WHEEL
REMOTE
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your
vehicle factory wiring harness
does not have “12V ignition
switch” wire.
Separate red wire
Signal cord (not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Antenna terminal
Front output
Rear/subwoofer output
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
(Not used)
Blue/white: Remote (200mA max.)
Microphone input
jack
( 14)

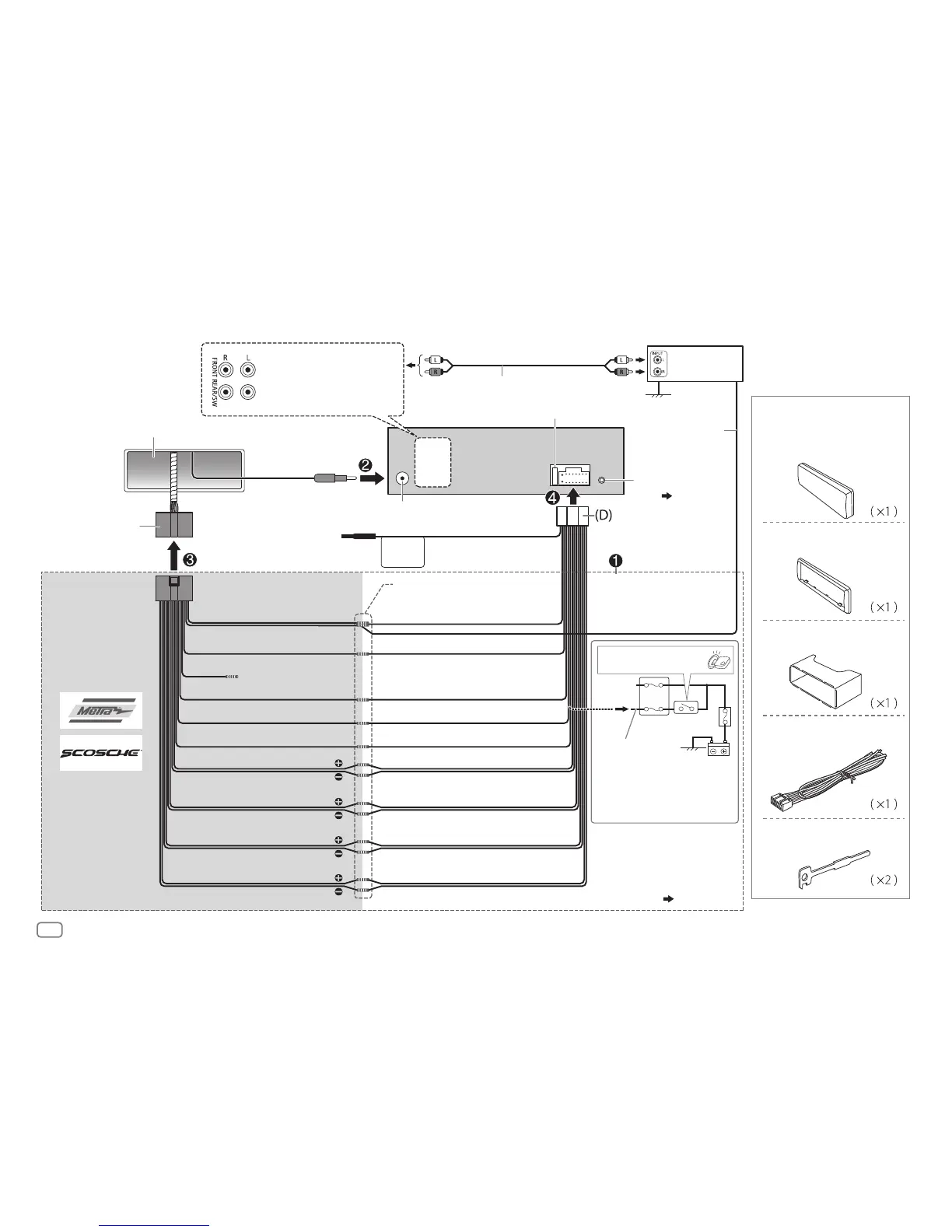

Wiring connection (for KD-R860BT )
Brown
Green: Rear speaker (left)
*
2
Green/black *
2
*
2
You can also connect a
subwoofer speaker directly
using this lead without an
external subwoofer amplifier.
For setting,
21, 22 .
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
*
1
Firmly connect the ground
wire of the amplifier to
the car’s chassis to avoid
damaging the unit.
