Installation and ConnectionInstallation and Connection

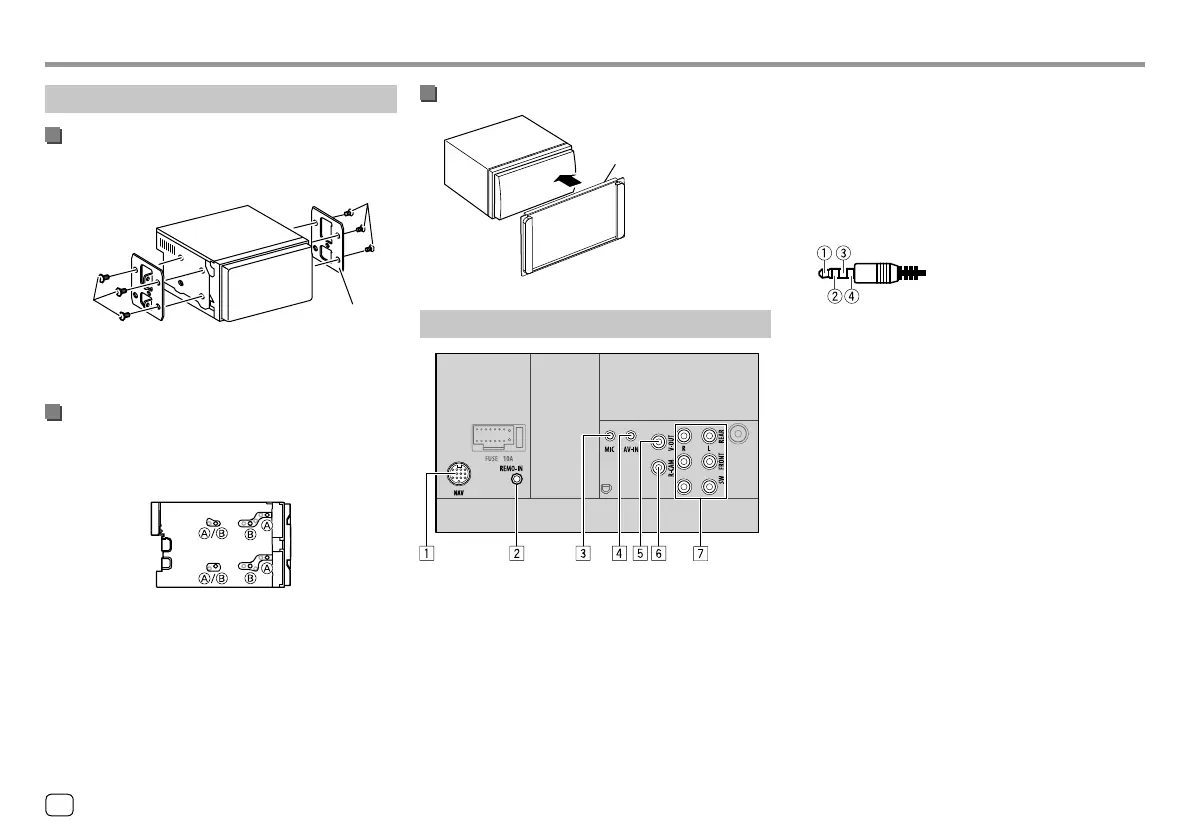

Installing the unit
Installing the unit using the mounting
brackets removed from the car
π / [
π / [
Car bracket
Note: Select the appropriate screws (supplied) for the
mounting bracket.
Installing in Toyota cars
Install onto the car bracket using the supplied screws
([). Use the mounting holes (A or B) that fit the car
bracket.
Installing the trim plate
“
Connecting external components
Side view
1 Navigation input (NAV)*1
2 Steering wheel remote controller input (REMO-IN)
• Connect to the vehicle’s steering remote harness
using the Steering Remote cable (]). Contact
your JVC dealer for details.
3 Microphone input (MIC) (Page 41)
4 Audio video input (AV-IN)
Connect the following type of 4-pole mini plug:
1
Left audio
2
Right audio
3
Ground
4
Composite video
5 Video output (V-OUT)
6 Rear view camera input (R-CAM)
7 Output terminals*2
• Left output (White)
• Right output (Red)
REAR: Rear speaker preouts
FRONT: Front speaker preouts
SW: Subwoofer preouts
For 3-way crossover:
REAR: Tweeter preouts
FRONT: Mid range speaker preouts
SW: Woofer preouts
*1 Only for KW-V250BT Region 3/KW-V250BTM Region 2.
*2 When connecting an external amplifier, connect its ground wire
to the chassis of the car; otherwise the unit may be damaged.
40
ENGLISH
