Remove the six screws A attaching the metal cover
on the back of the body.
Remove the two screws B attaching the metal cover
on both sides of the body.
Remove the metal cover from the body by lifting the
rear part of the cover.
1.
2.
3.
Disassembly method
<Main body>
Removing the metal cover
(See Fig.1 to 3)
Do not break the front panel tab fitted
to the metal cover.
ATTENTION:

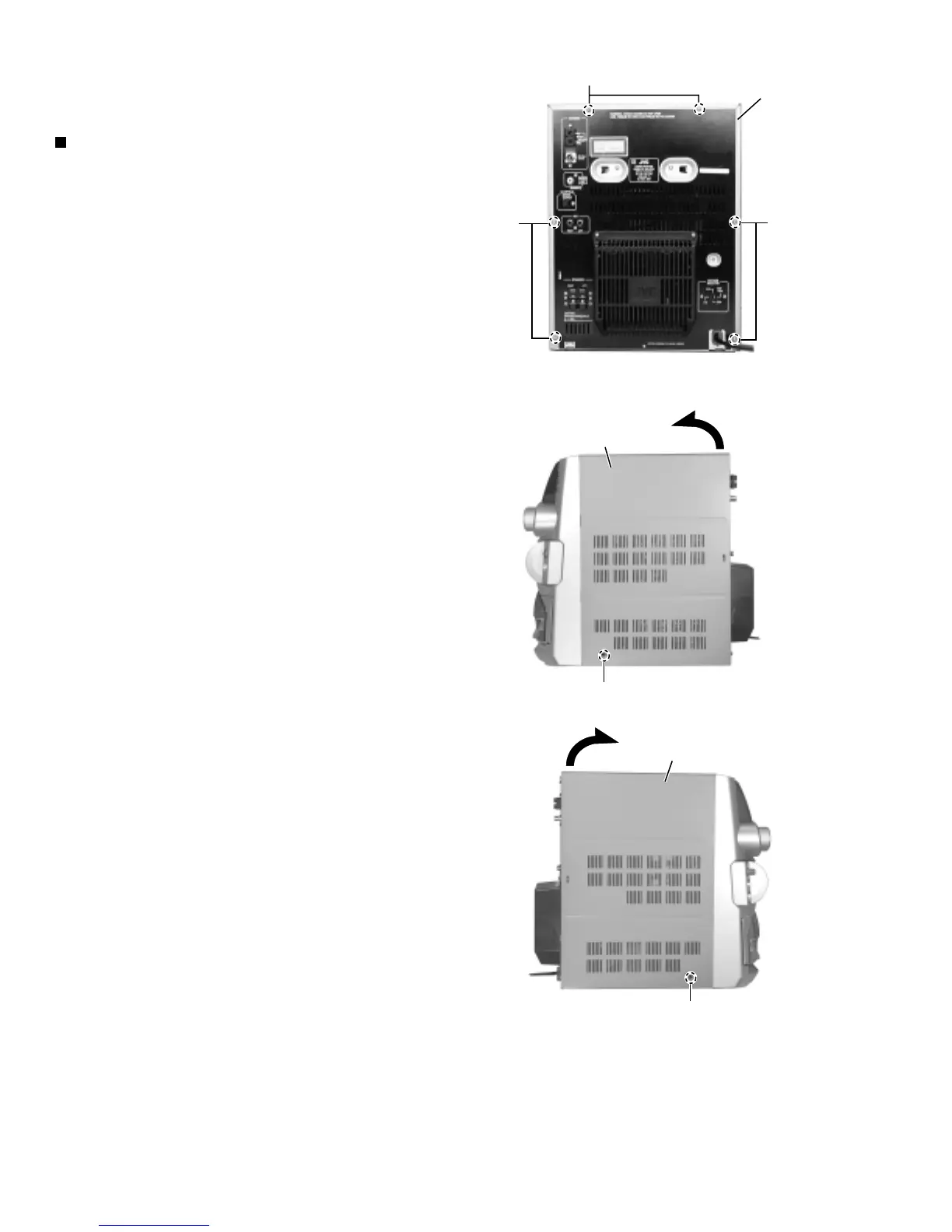

Fig.1
Fig.2
Fig.3
Metal cover
A
AA
Metal cover
B
Metal cover
B
