CD changer
mechanism board
CD changer
mechanism assembly
Main board
CN868
C
Input / output board
CN871
CN870
Rear panel
Front panel assembly
Fig.5
Fig.6
Fig.4
Front panel assembly
CD changer
mechanism assembly
Rear panel
C
Rear panel
D
G
E
CD Optical
digital output
terminal
TW100
CN102
Video CD board
Bracket
CLAW a
Fig.7
H
I
CD changer
mechanism assembly
Video CD board
F
Video out board
Video CD board
CLAW b
CN100
CN101

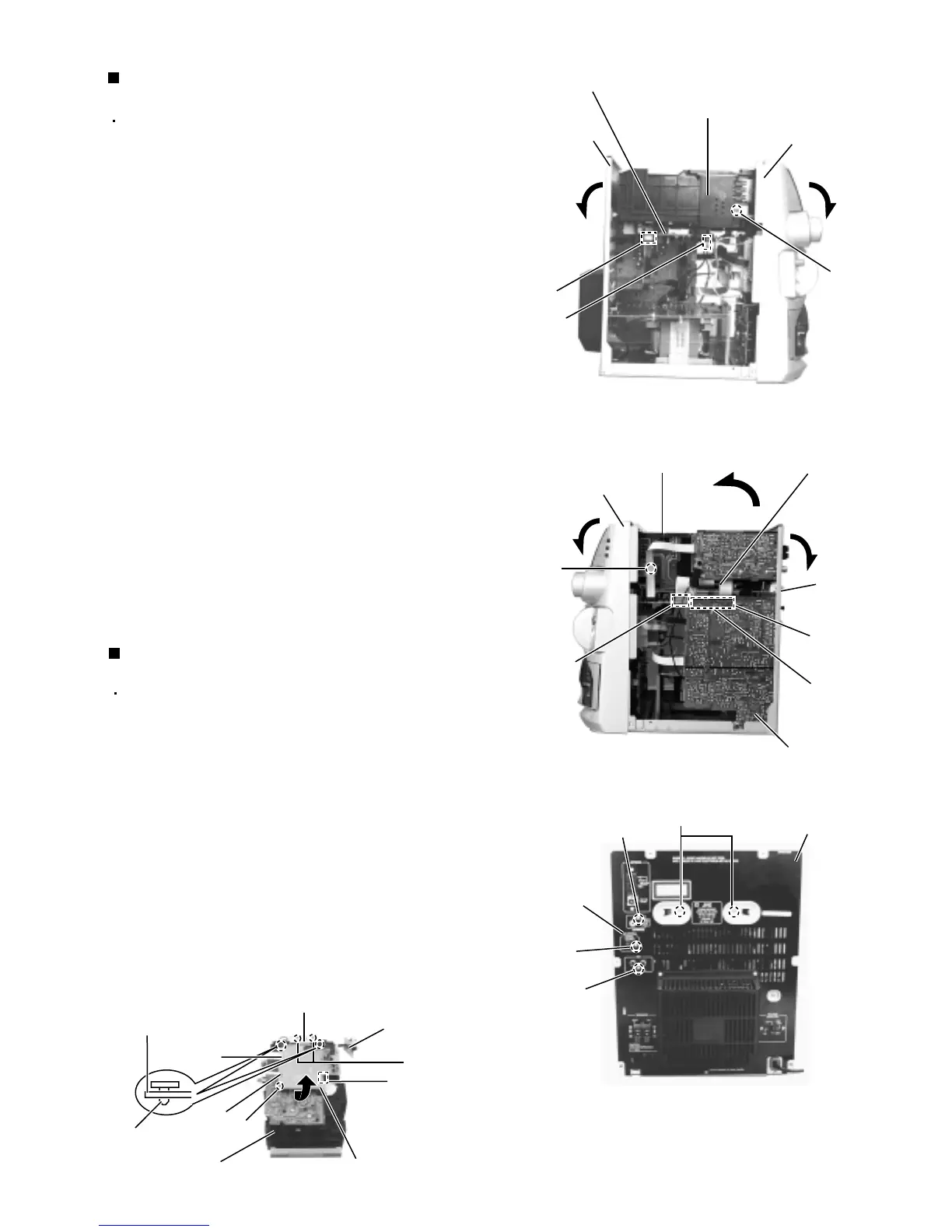

Prior to performing the following procedure, remove
the metal cover.
For the card wire connecting the CD changer
mechanism board and the main board, disconnect it
from connector CN868 on the main board.
Remove the two screws C attaching the CD changer
mechanism assembly on both sides of the body.
Remove the two screws D attaching the CD changer
mechanism assembly to the rear panel. Remove
the screw E attaching the AUX terminal on the back
of the body.
Remove the screw F attaching the video out terminal
on the back of the body. Then disconnect it from
connector CN102 on the video CD board, and pull
out the earth wire TW100 on the video CD board.
Pull the top of rear panel and the front panel
assembly outward respectively, then remove the CD
changer mechanism assembly and video out board
by lifting the rear part of the CD changer mechanism
assembly.
1.
2.
3.
4.
5.
Removing the CD changer mechanism
assembly (See Fig.4 to 6)
Prior to performing the following procedure, remove
the CD changer mechanism assembly.
Reverse the CD changer mechanism assembly.
Remove the two screws H attaching the bracket.
Remove the screw I attaching the video CD board.
Disconnect the card wire from connector CN100 and
CN101 on the video CD board.
At first, remove the claw a. Then remove the claw b
while raising the video CD board in the direction of
the arrow mark as figure. After removing the claw b,
you can removing the video CD board by pulling it
backward.
1.
2.
3.
4.
5.
Removing the video CD board
(See Fig.7)
To Next Page
