JVC P-100EUC - Page 13

P-100EUC

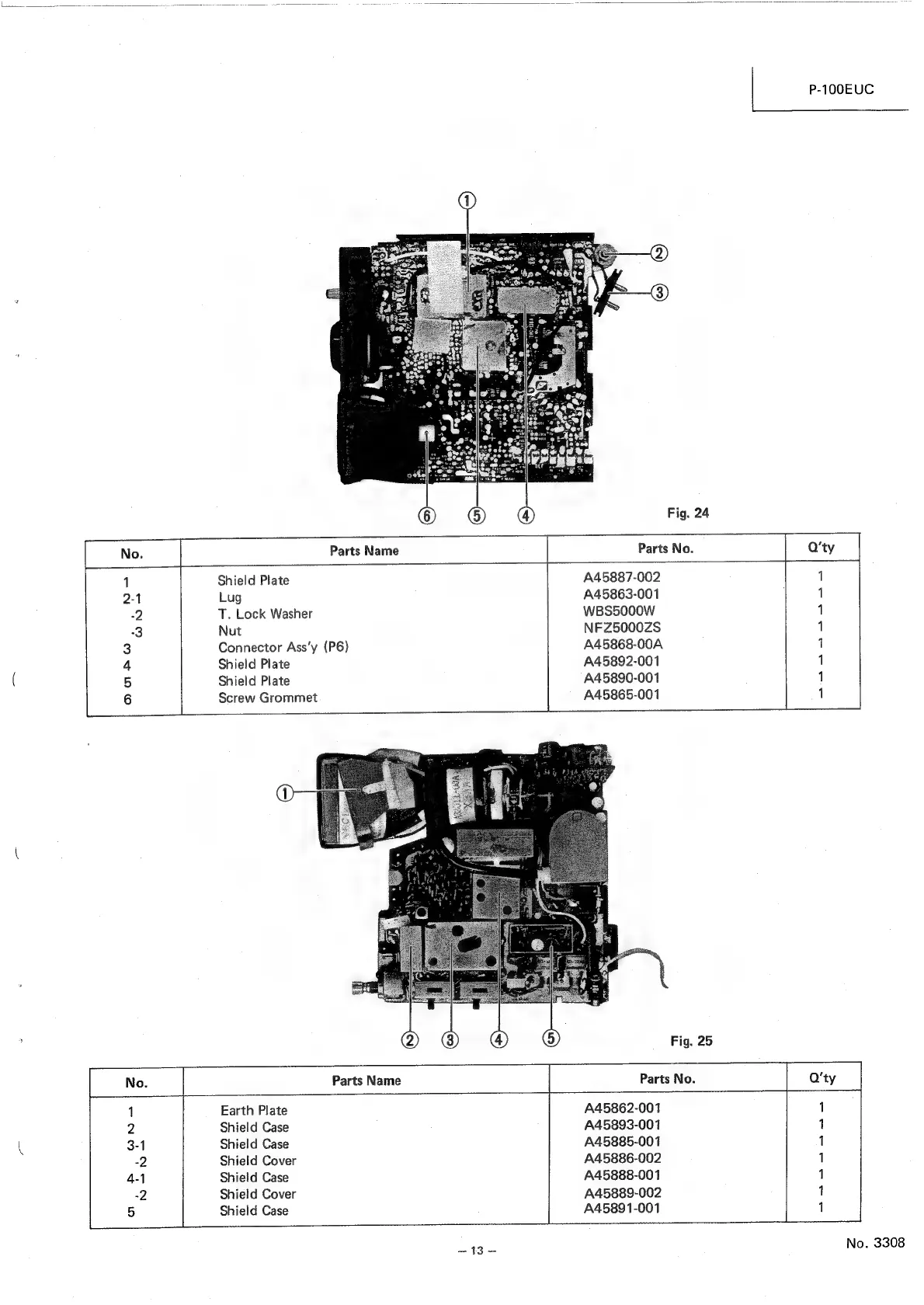

Fig. 24
Parts Name
Parts No.
Shield Plate
Lug
T. Lock Washer
Nut
Connector Ass’y (P6)
Shield Plate
Shield Plate
Screw Grommet
Earth Plate
Shield Case
Shield Case
Shield Cover
Shield Case
Shield Cover
Shield Case
Parts Name
A45887-002
A45863-001
WBS5000W
NFZ5000ZS
A45868-00A
A45892-001
A45890-001
A45865-001
Parts No.
ec = NN ee ca ek
Fig. 25
A45862-001
A45893-001
A45885-001
A45886-002
A45888-001
A45889-002
A45891-001
Bae, Ke ge
No. 3308
