1-11
Fig.15
Prior to performing the following procedures,
remove the top cover and both sides board.
Also remove the CD changer unit.
1.
2.
Remove the s crews"d" from the front chuch base
of the CD changer mechanism unit.
Turn the CD changer mechanism cover base
and remove the screws "e" connecting the unit to
the CD changer mechanism assembly.
3.
Remove the four screws "k" retaining the CD
mechanism holder assembly.

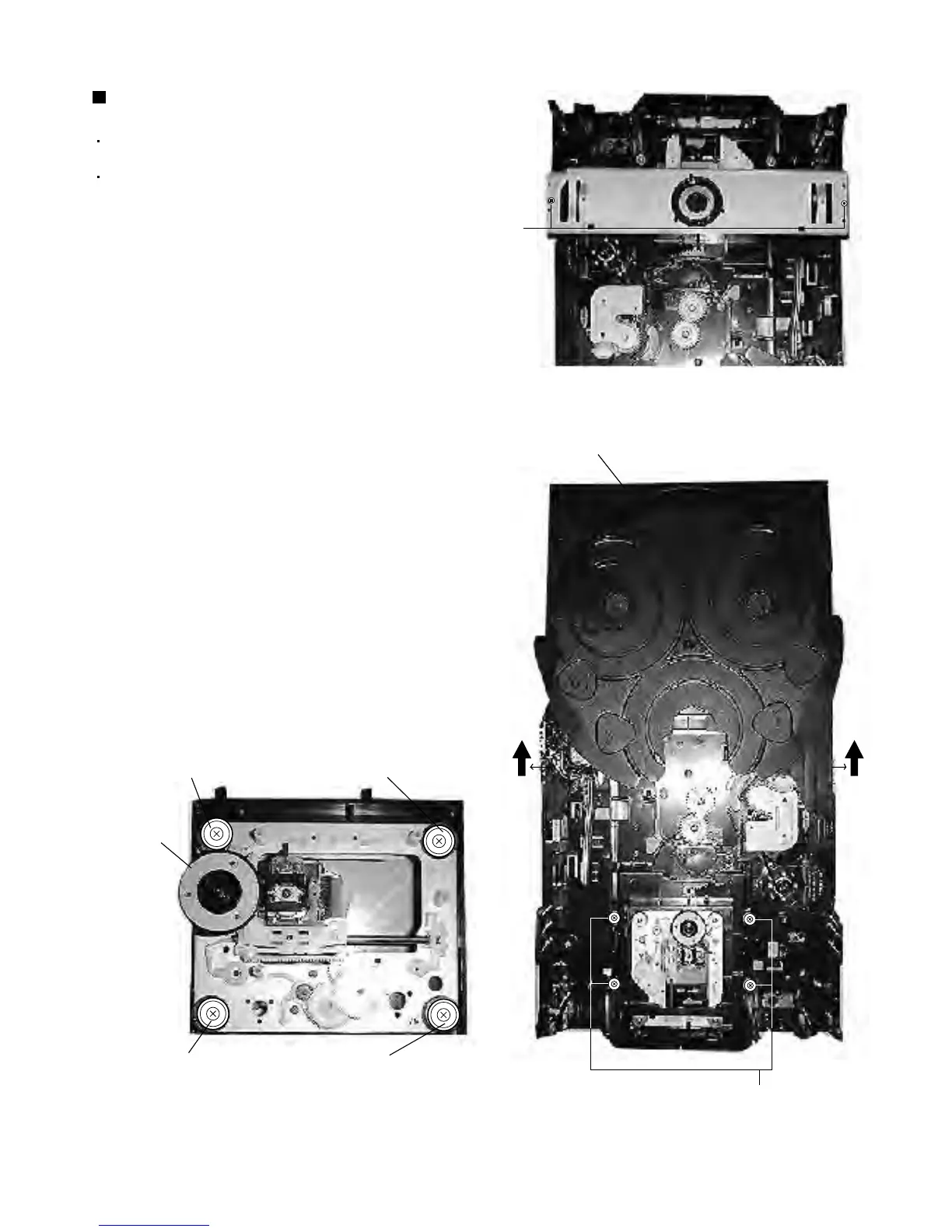

Removing the CD changer mechanism
assembly (See Fig.15 to 17)
[Caution] When replacing the CD changer
mechanism assembly, be sure not to
mistake the positions of the silver color
and copper color spring ..
Fig.17 Fig.16
e
CD changer
mechanism
assembly
K ( Silver color) K ( copper color)
K ( Silver color)
K ( copper color)
d
CD changer
unit
