Fig.25
Prior to performing the following procedures,
remove the top cover and both sides board.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2. Remove the four screws "Q" retaining the front
panel assembly.
3. Remove the control / FL PCB.
4. Remove the eleven screws "R" retaining the switch
(key 1) PCB.
5. Remove the three screws "S" retaining the sound
mode (key 2) switch PCB.
6. Remove two screws "T" retaining the CD function
(key 3) switch PCB.
Pull out the volume control knob from the front of
the front panel assembly.

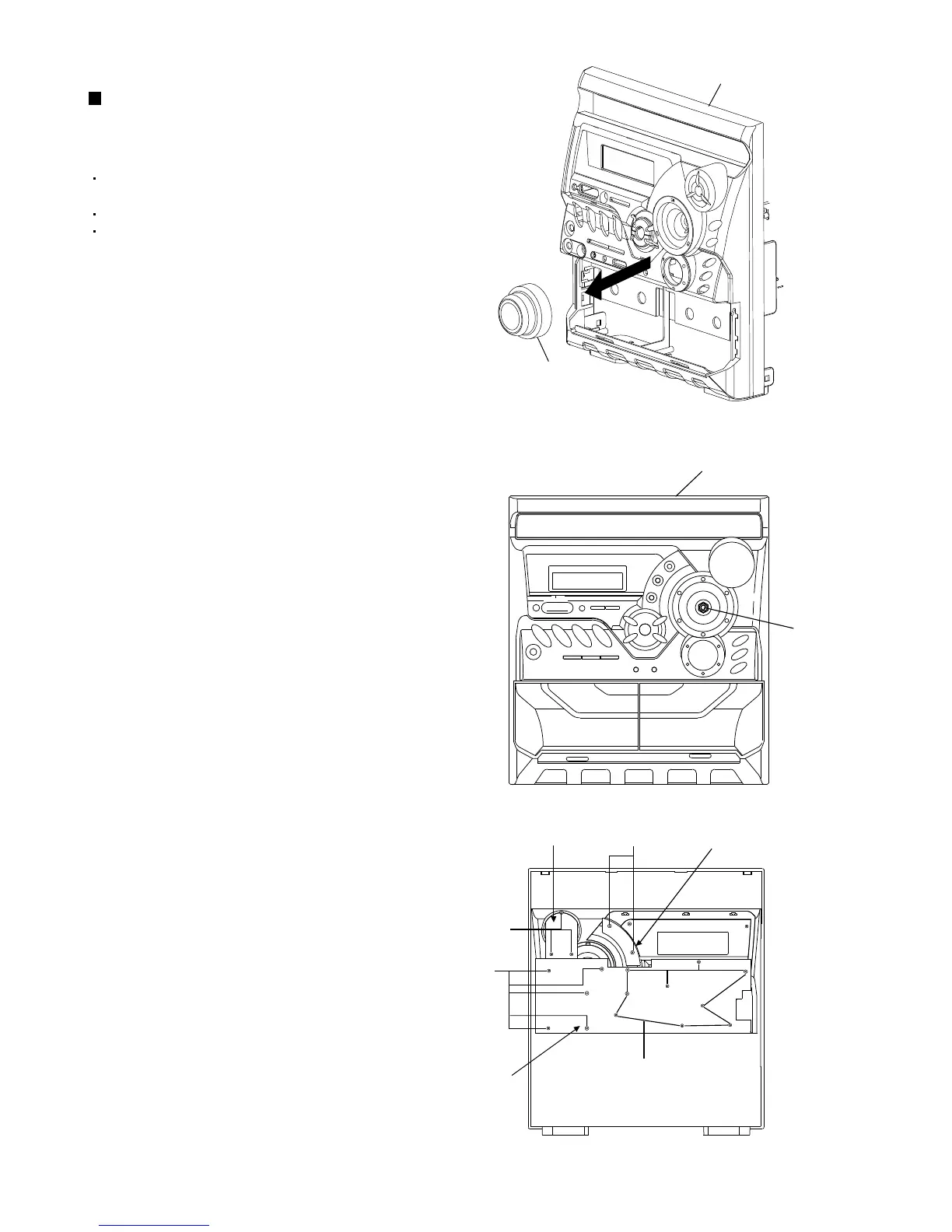

Removing the switch PCB and sound mode
and CD function switch PCB
(See Fig.24 to 27)
Fig.26
Front panel
assembly
Volume shaft
Volume knob
Front panel assembly
Fig.27
Key 1 PCB
R
S
T
R
Key 2 PCB
Key 3 PCB
To Next Page
