JVC SP-PW1000 Service Manual

FS-SD1000R
1-7

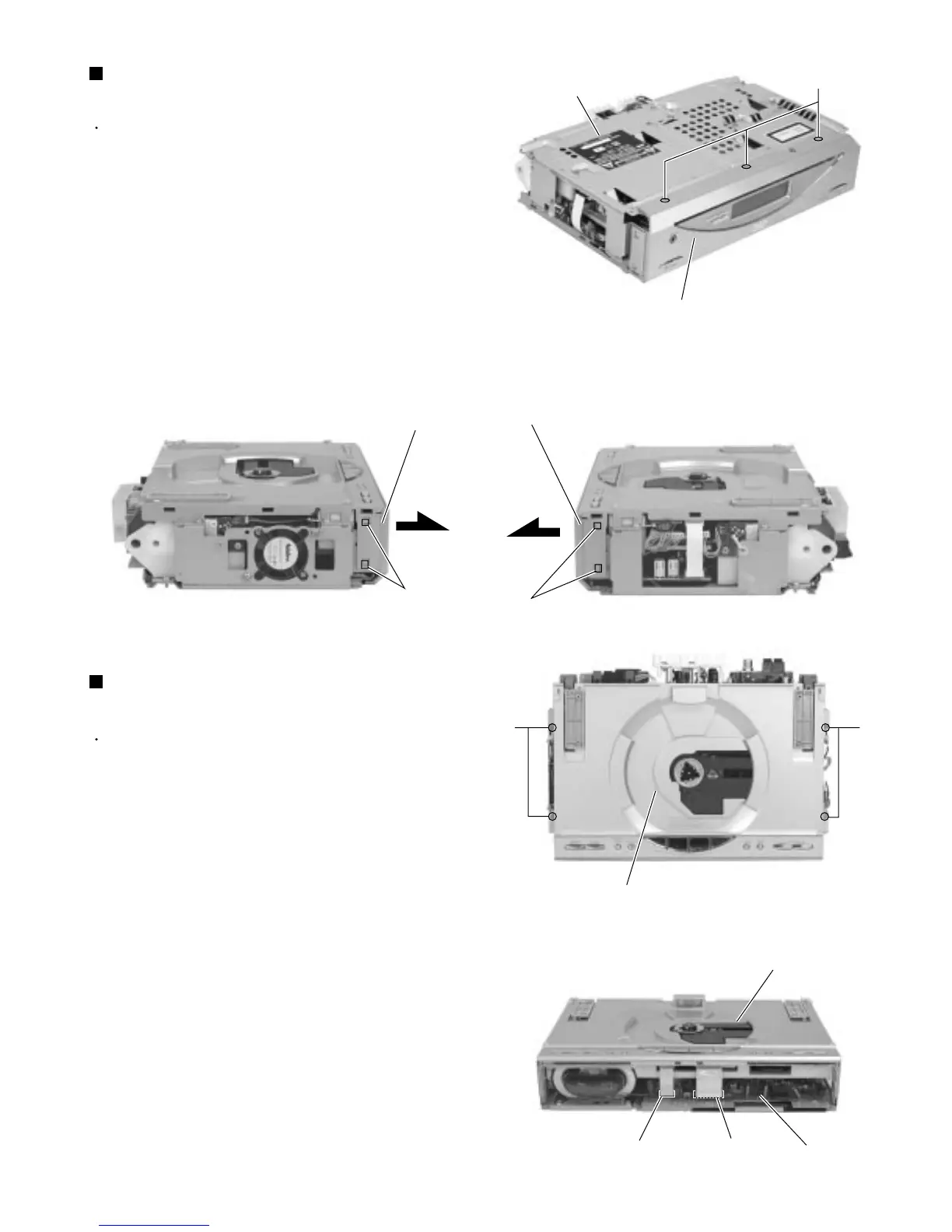

Prior to performing the following procedure, remove
the CD door, the rear cover and the side covers.
Remove the three screws E on the bottom of the
body.
Release two joints a and two joints b on both sides
of the body using a screwdriver and remove the front
panel assembly toward the front.
1.
2.
Removing the front panel assembly
(See Fig.4 to 6)
Prior to performing the following procedure, remove
the CD door, the rear cover, the side covers and the
front panel assembly.
Disconnect the card wire from connector CN104 and
CN105 of the main board in the front part of the
body. Disconnect the card wire from CN101 of the
main board on the right side, and the wire from
CN705 and CN708 of the CD mechanism base
assembly respectively.
Remove the four screws F attaching the CD
mechanism base assembly on the upper side of the
body. Remove the screw I attaching the earth
terminal on the right side.
1.
2.
Removing the CD mechanism base
assembly (See Fig.7 to 14)
Fig.4
Fig.6Fig.5
E
Front panel assembly
(Left side)
(Right side)
Front panel assembly
Joints a
Joints b
Bottom
Fig.7
Fig.8
F
F
CD mechanism base assembly
CD mechanism base assembly
Main bard
CN105
CN104
Front panel assembly
