11
English
CAUTION:
• When you do not use the supplied speakers but connect other (larger) speakers, use the speakers with the SPEAKER IMPEDANCE indicated
by the speaker terminals on the rear panel of the center unit.
• DO NOT connect more than one speaker to one speaker terminal.

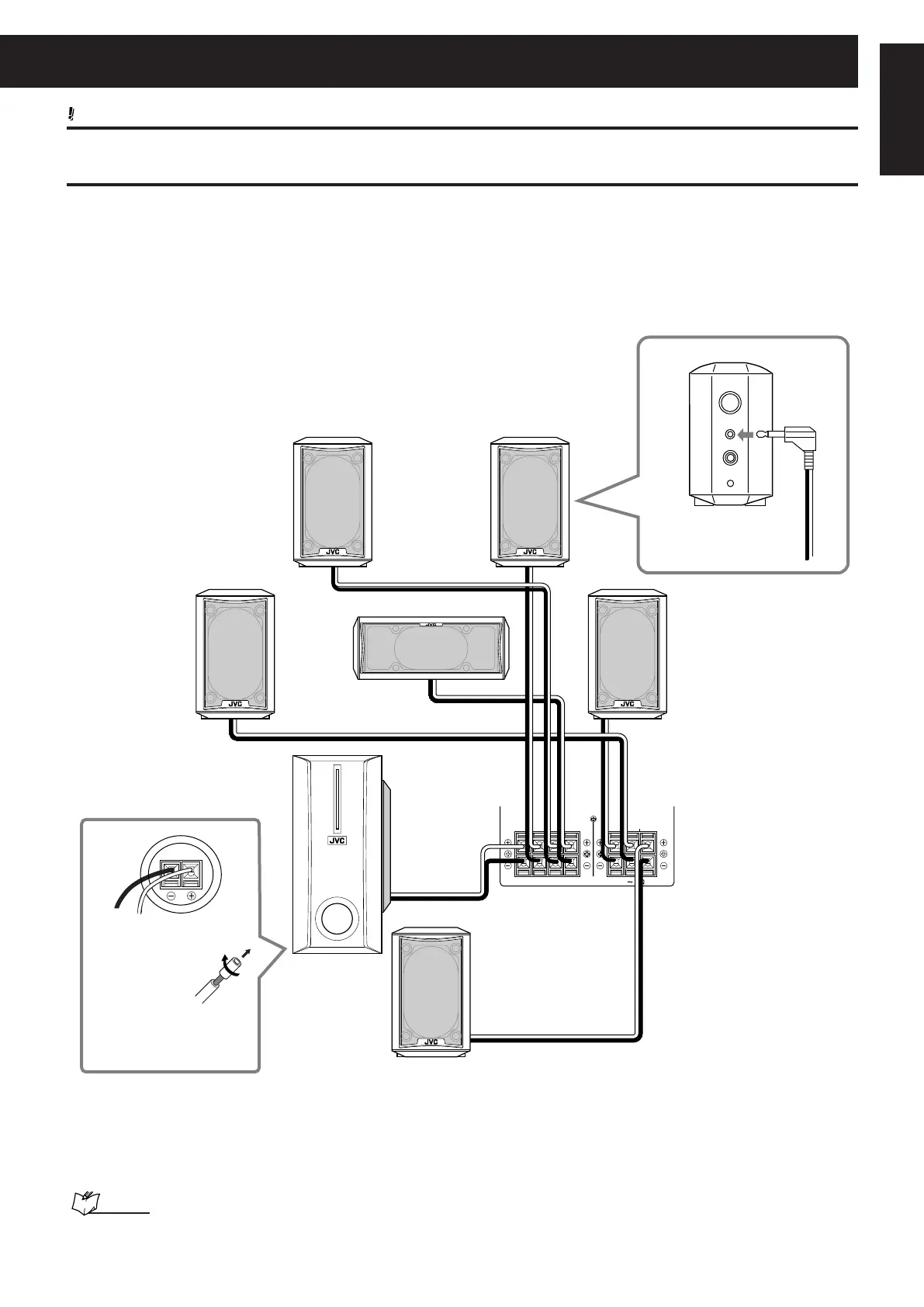

Satellite speakers:
1 Insert mini plugs on the speaker cords into the jacks on the rear of each speaker.
2 Connect the white cord to the red (+) terminal and the black cord to the black (–) terminals.
SURROUND SPEAKERS SURROUND BACK
RIGHT LEFT SPEAKER
CENTER
RIGHTSUBWOOFER LEFT SPEAKER
CAUTION:SPEAKER IMPEDANCE 4 16
FRONT SPEAKERS
Left front speaker
Center speaker
Right front speaker
Left surround
speaker
Right surround
speaker
Subwoofer
Surround back
speaker
Subwoofer:
Connect the white cord to the red (+) terminal and the black cord to the
black (–) terminals.
If the speaker
cord is covered
with vinyl,
remove the
vinyl by twisting
it as shown to
the right.
NOTES:
• The grills for the satellite speakers are removable. Do not apply any force to the satellite speaker grills to prevent damaging them.
• The grill for the subwoofer is not removable.
EN01-15.TH-A75[UW]_f 03.2.24, 11:23 AM11
