JVC XL-R5000BK Service Manual

1-16
XL-R5000BK

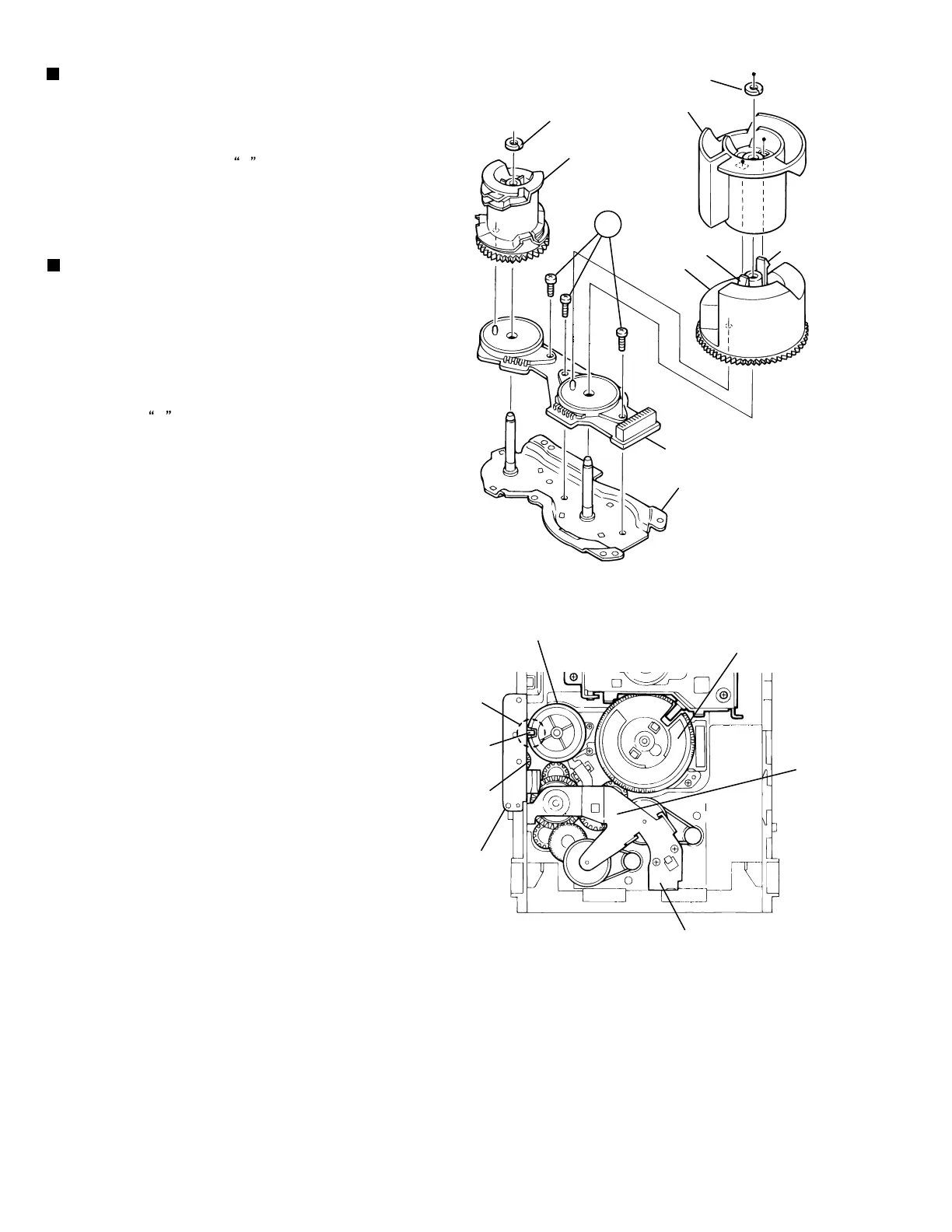

Fig.22
[Caution]
To reassemble the cylinder gear, etc.with the
cam unit (cam gear and cans R1/R2 assembly),
gear unit and drive unit, align the position of the
pawl
N on the drive unit to that o f the notch
on the cam gear L. Then, make sure that the
gear unit is engaged by turning the cam gear L
(See Fig. 23).
Removing the cams R1/R2 assembly
and cam gear L(See Fig.22)
1.
2.
3.
4.
Remove the slit washer fixing the cams R1 and R2
assembly.
By removing the two pawls
S fixing the cam R1,
separate R2 from R1.
Remove the slit washer fixing the cam gear L.
Pull out the cam gear L from the C.G. base assembly.
Removing the C.G. base assembly
(See Fig.22 and 23)
Remove the three screws 11 retaining the C.G. base
assembly.
Fig.23
11
Slit washer
Pawl
Cam R2
Slit washer
Cam gear L
Cam switch board
C.G. base assembly
Cam R1
Pawl
Cam gear L
Notch
Cylinder
gear
Gear bracket
Cam R1, R2 assembly
Gear unit
Drive unit
N
Pawl
S
S
