1-5
XL-R5000BK

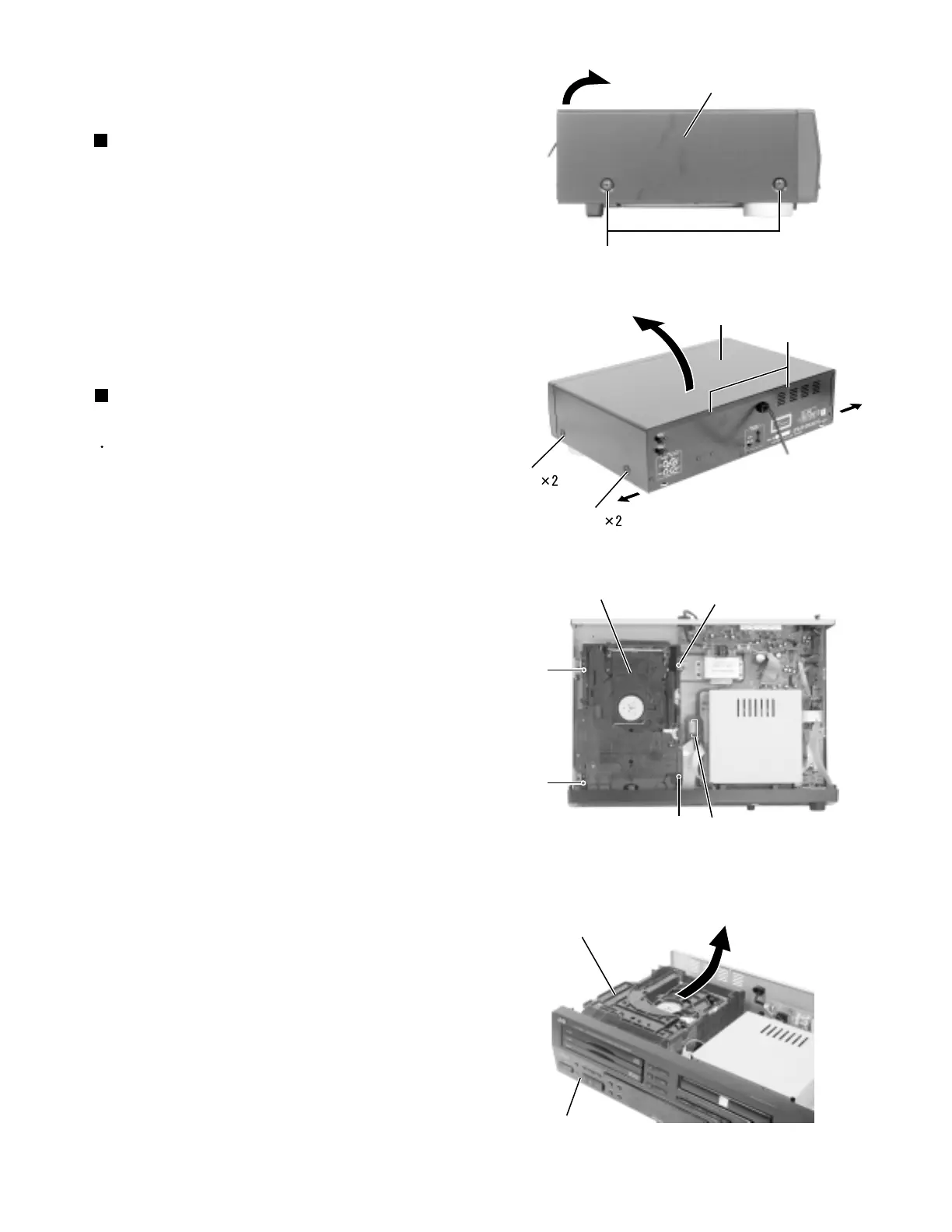

Remove the four screws A on both sides of the
body.
Remove the two screws B on the back of the body.
Remove the top cover from behind in the direction of
the arrow while pulling the lower part of the top cover
sides outwards.
1.
2.
3.
<Main Body>
Removing the top cover
(See Fig.1 and 2)
Prior to performing the following procedure, remove
the top cover.
Disconnect the card wire from connector CN811 on
the main board.
Remove the four screws C attaching the CD
changer mechanism assembly.
Remove the CD changer mechanism assembly
backward, then upward.
1.
2.
3.
Removing the CD changer mechanism
assembly (See Fig.3 and 4)
Disassembly method
Fig.1
Top cover
CN811
A
B
A
A
Fig.2
Fig.3
Fig.4
CD changer mechanism
assembly
Top cover
C
C
C
C
Front panel
CD changer mechanism
assembly
