(No.MB487)1-11
3.1.2 Removing the front panel assembly
(See Figs.4 to 6)
• Remove the metal cover.
(1) From the bottom side of the main body, remove the three
screws C attaching the front panel assembly. (See Fig.4.)
(2) From the right side of the main body, disconnect the card
wire from the connector CN703
on the main board. (See
Fig.5.)
(3) From the both sides of the main body, remove the two
screws D attaching the front panel assembly. (See Figs.5
and 6.)
(4) Remove the joints a attaching the front panel assembly and
remove the front panel assembly in the direction of the ar-
row. (See Figs.5 and 6.)

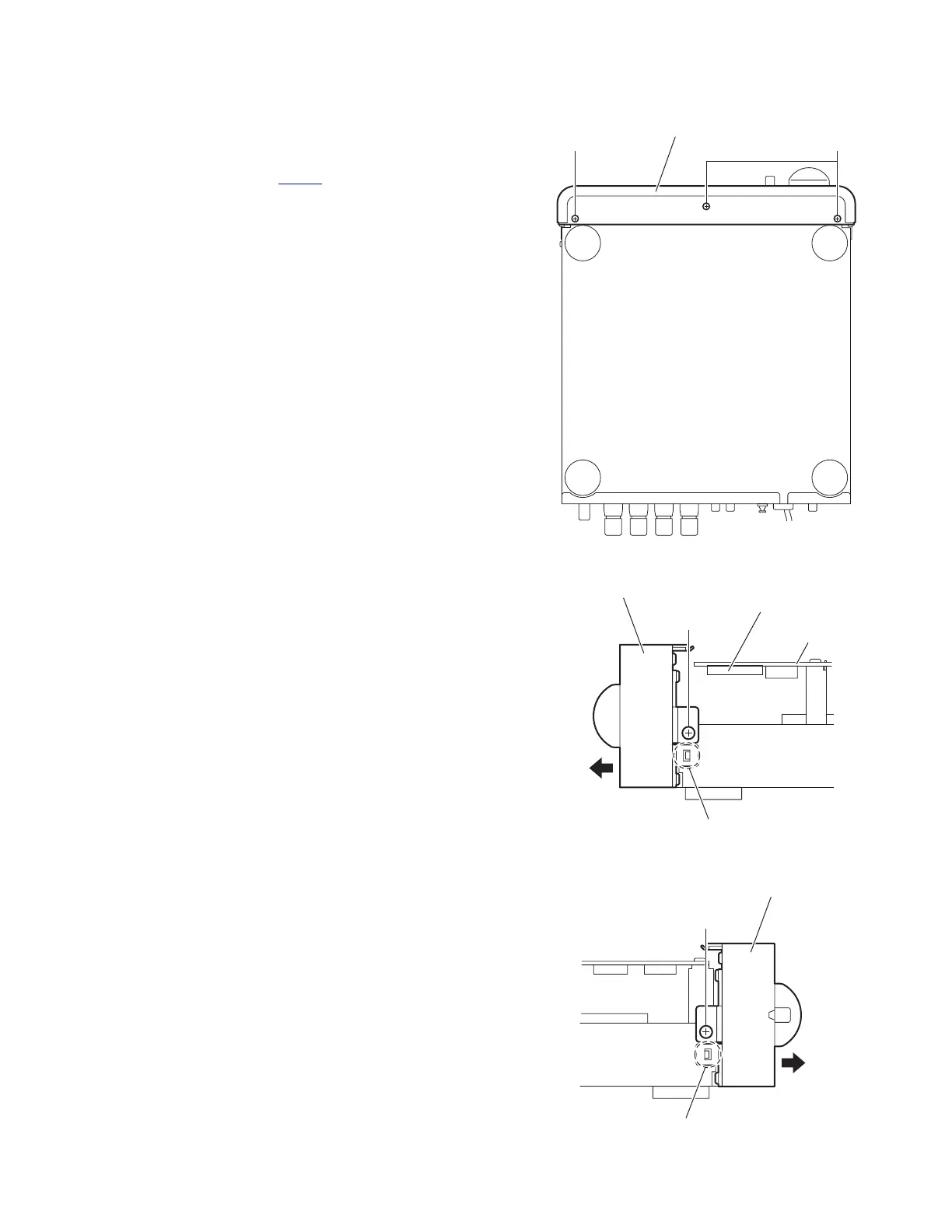

Fig.4
Fig.5
Fig.6
Front panel assembly
C C
Front panel assembly
CN703
Main board
D
a
Front panel assembly
D
a
To Next Page
