Jydepejsen Cosmo Operating Instructions

Change of the vermiculite panels

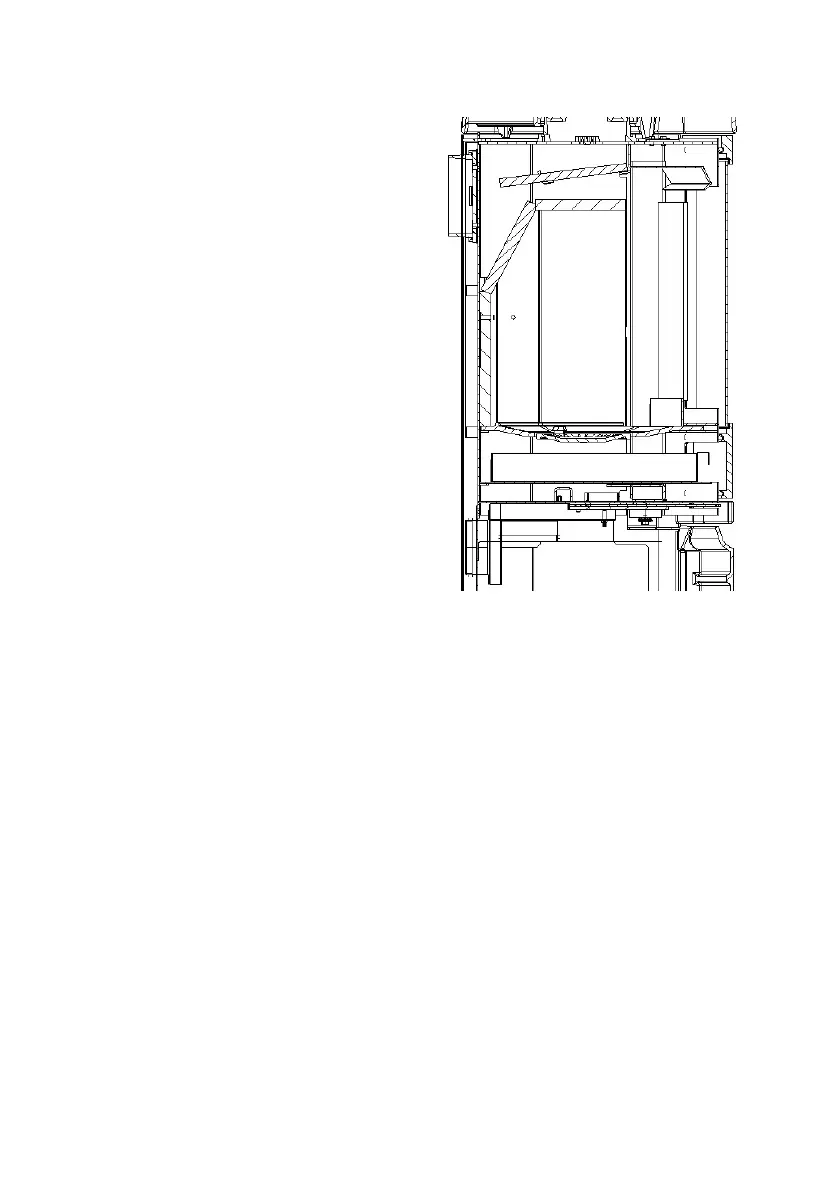

1. Push the rear edge of the baffle plate upwards, to take out the rear panel / panels in the combustion
chamber.
2. Remove the two small, bevelled side panels.
3. Remove the two side panels in front.
4. Now you can remove the lower baffle plate.
6. Spare parts list
Type Description Article no.
Vermiculite side panel, right 400 x 148,3 x 25 mm 44101040-0
Vermiculite side panel, left 400 x 148,3 x 25 mm 44101050-0
Vermiculite side panel, left bevelled 395/254,4 140,9 x 29 mm 44101030-0
Vermiculite side panel, right bevelled 395/254,4 x 140,9 x 29 mm 44101020-0
Vermiculite rear panel 271,6 x 237,1 x 29 mm 44101010-0
Vermiculiteset (lower baffle plates incl.) 44101000-0
Vermiculite baffle plate, upper 378/258 x 220 x 15 mm 44102080
Vermiculite baffle plate, rear 390/268,9 x 180,3 x 20 mm 44101060-0
Vermiculite baffle plate, front 385 x 155 x 20 mm 44101070-0
Glass 485 x 340 x 4 mm 56700020
Cast-iron bottom Thickness: 9 mm 55015140
Shaking grate 55000100
Ash pan Capacity: 4,2 l 56700058
Gasket with glue Ø 12 mm 44300120
