Mounting with installation instructions
26 k4evo707en-2012-07

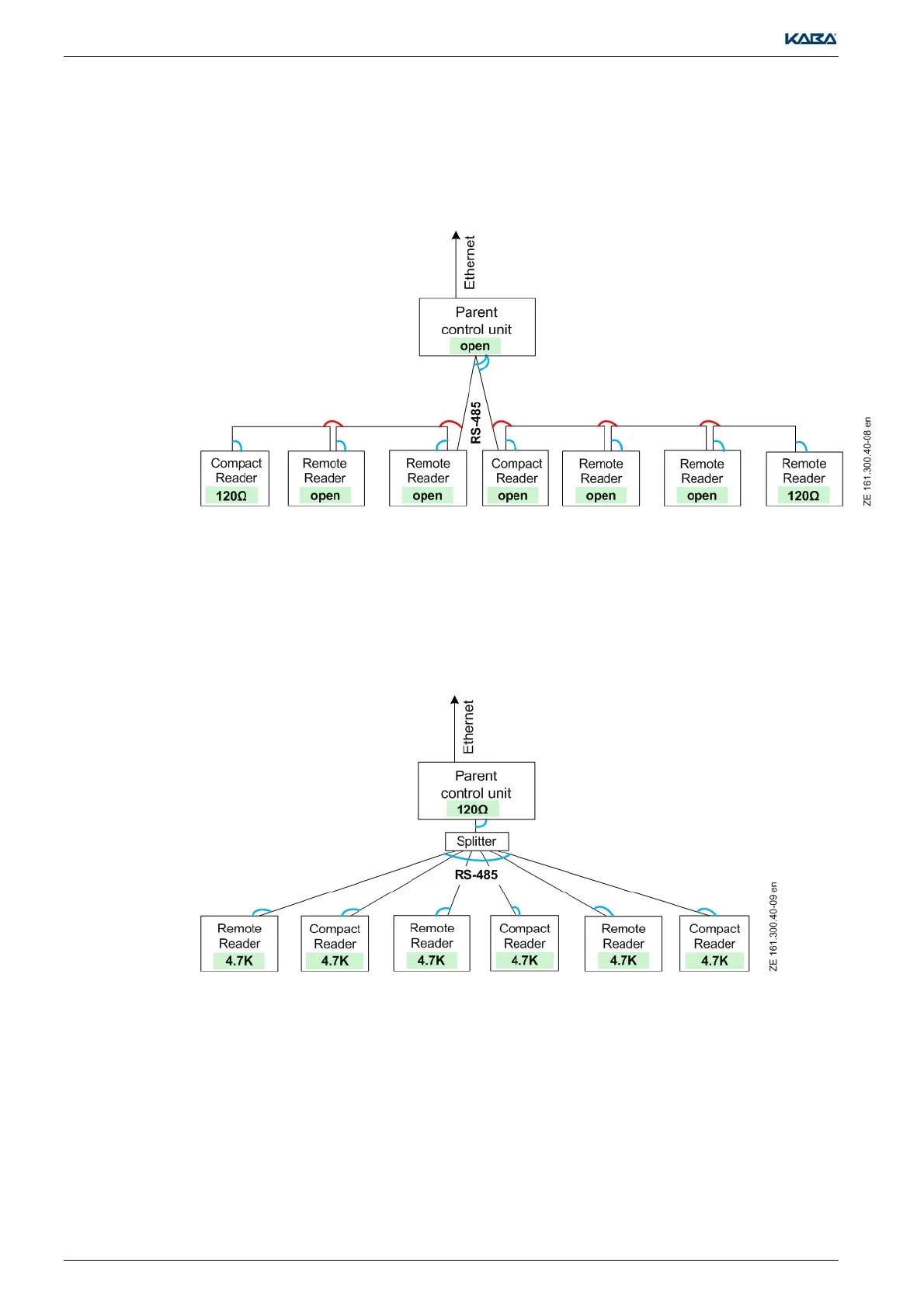

With 2 bus lines
Set the terminating resistors on the first and last device to 120 and all the others to open
Connect the shieldings of the RS-485 cables on the parent control unit and connected devices
to connection C (common); connect the shieldings of the RS-485 cables between the devices
to each other
Max. length between the last two devices is 1,200 m
3.5.1.2 Example of star cabling
The terminating resistor is adjusted either at the DIP switch or the jumper.
Set the terminating resistor on the parent control unit to 120 and all the other devices
to 4.7 K
Connect the shieldingsof the RS-485 cables on the parent control unit and the connected
devices to connection C (common)
Max. length per stub is 100 m
