Online operation with firmware option Access Manager
30 k4evo707en-2012-07

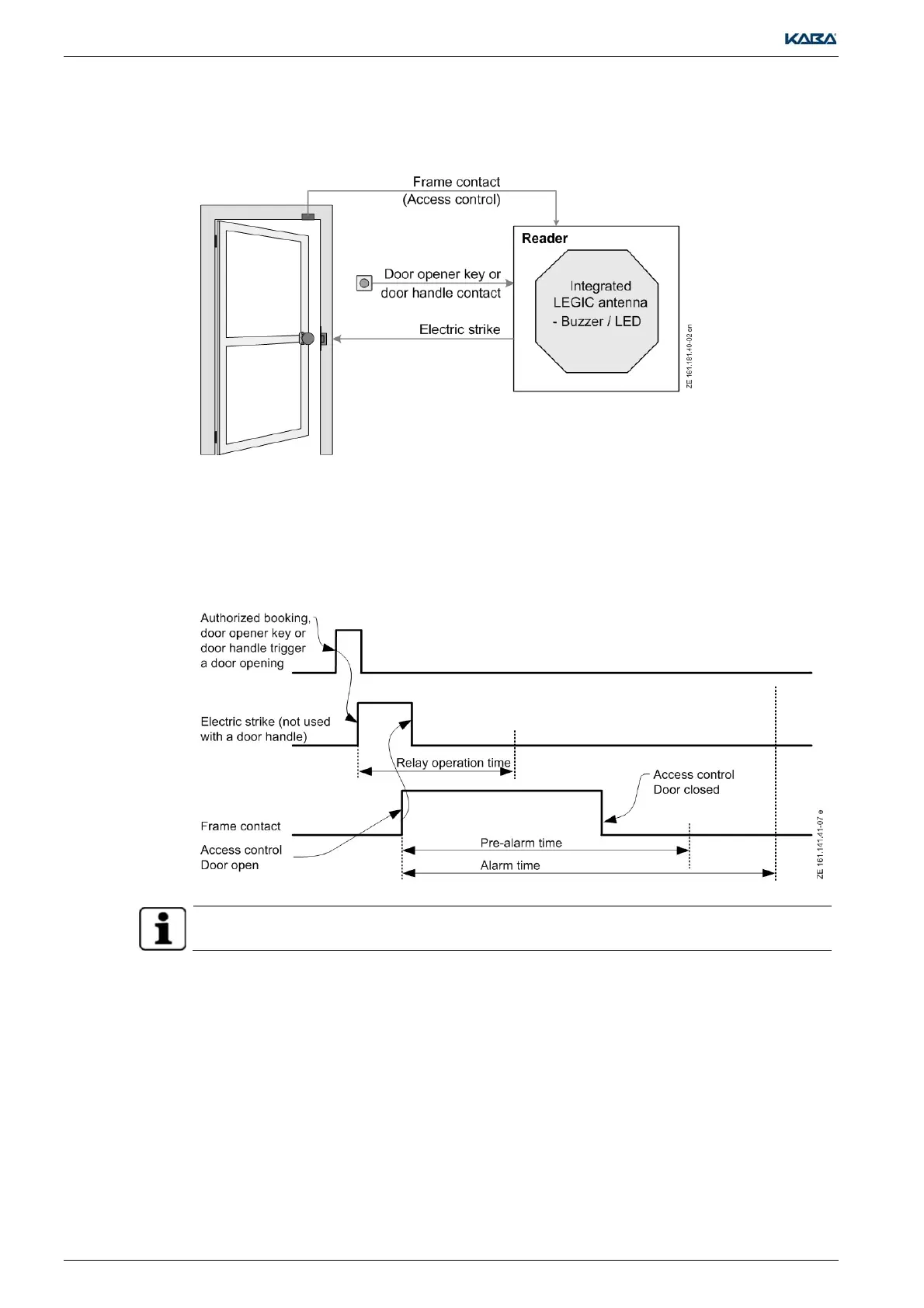

4.2.2 Electric strike operating mode
Example:
This operating mode is particularly associated with doors which have electrical locking elements
(electric strike, magnet).
Triggered by an authorized booking, door opener key, or door handle, the Access
authorized/Access allowed signal is generated.
Only now is the electric strike triggered. From this point onwards, the door is enabled for opening
and the set operation time for the relay starts running. If the door is opened, monitoring of the
pre-alarm and alarm times (Door open too long) starts running.
Examples of other door configurations with the associated time-based diagrams are provided in the
relevant system documentation and/or in the online help.
4.2.3 System requirements
Details can be found in the relevant documentation, e.g., Release Overview, Release Notes.
