10.18 Option P4
Filter pressure reducer cleaning
Empty accumulated condensate at regular intervals, at least once a day.
Material Compressed air for blowing out
Cleaning cloths
Spares as required
Precondition The supply disconnecting device is switched off,
the device is locked off,
the absence of voltage has been verified.
The machine is fully vented (no pressure).
➤ Drain condensate.
➤ Collect the condensate in a suitable container and dispose of it in accordance with appli‐
cable environmental regulations.
Cleaning the filter element

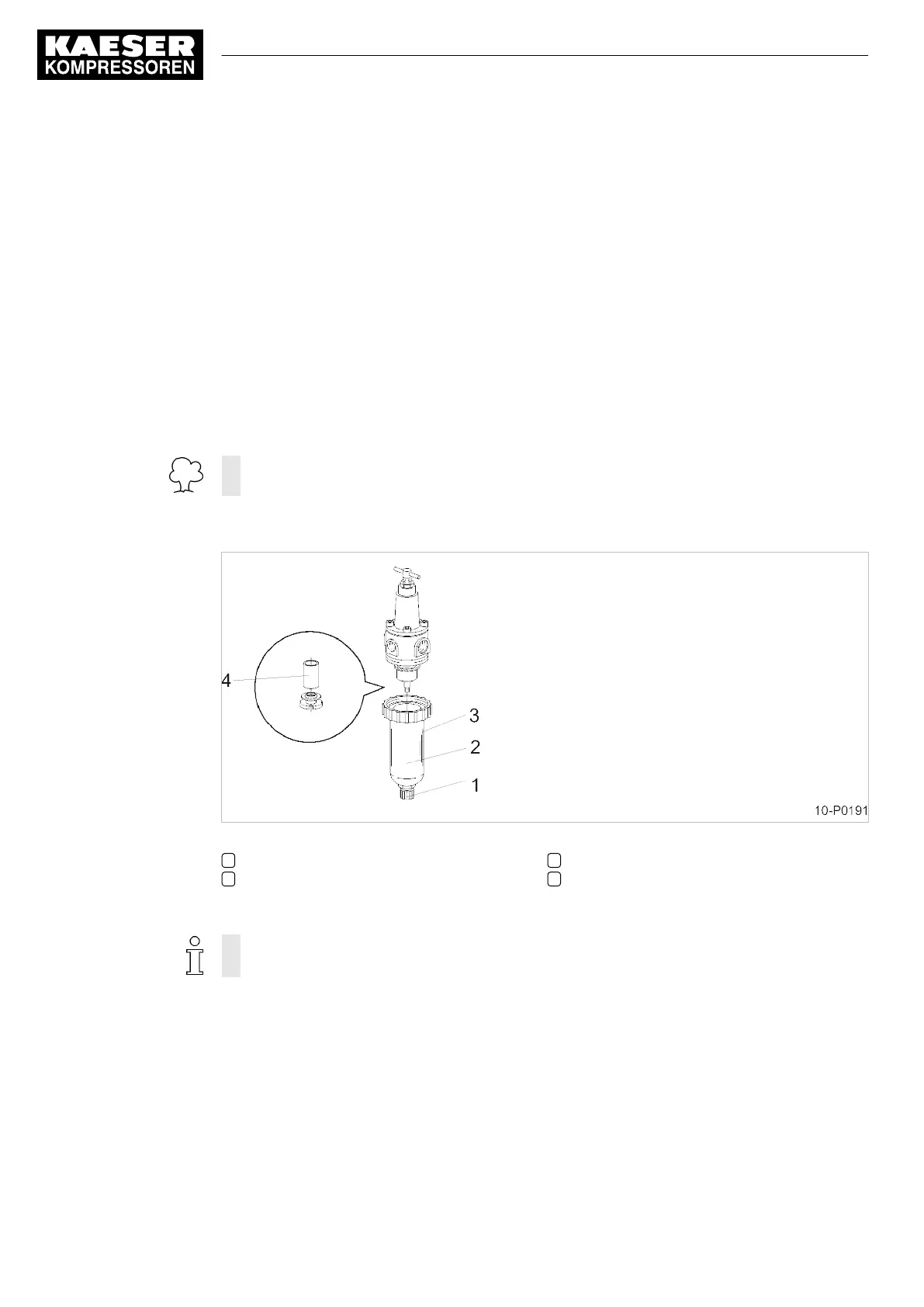

Fig. 39 Filter pressure reducer cleaning
1 Condensate drain tap
2 Enclosure
3 Label (cleaning agent)
4 Filter element
1. Unscrew and clean the housing and filter element.
Refer to the label on the housing for selection of the cleaning agent.
2. Blow out the housing with compressed air (<5 bar!).
3. Reassemble the parts and make sure they sit correctly.
10.19 Cylinder head and valves
Material Compressed air for blowing out
Cleaning cloths
Brush
Spares as required
10 Maintenance
10.18 Filter pressure reducer cleaning
66
Service Manual 2-stage piston compressor
EPC No.: 9_9431_02 E
