wire repeatedly to clean the soldering ifon tip before soldering
® Do not use fluxes containing too much chlorine or acid, only use fluxes with
synthetic resins or resins that have been activated.
® The soldering iron needs to be periodically corrected for temperature. In addition,
the temperature of the soldering iron needs to be corrected because the
temperature varies depending on the type of iron chosen. You can use a
screwdriver in the "CAL" hole on the chassis panel to make fine adjustments
yourself.
® Every 24 hours or at least once a week, take out the soldering iron tip to clean
and remove foreign objects in the sleeve.
2. Replacement of soldering iron tip
/ANote:
® The soldering iron tip can be removed and replaced by unscrewing the sleeve. Be
sure to tum off the power of the temperature control table and allow the soldering
iron fip to cool down before removing the soldering iron fip.
® Please be careful o avoid getting dust into your eyes when cleaning the oxide
dust formed at the sleeve fixation.

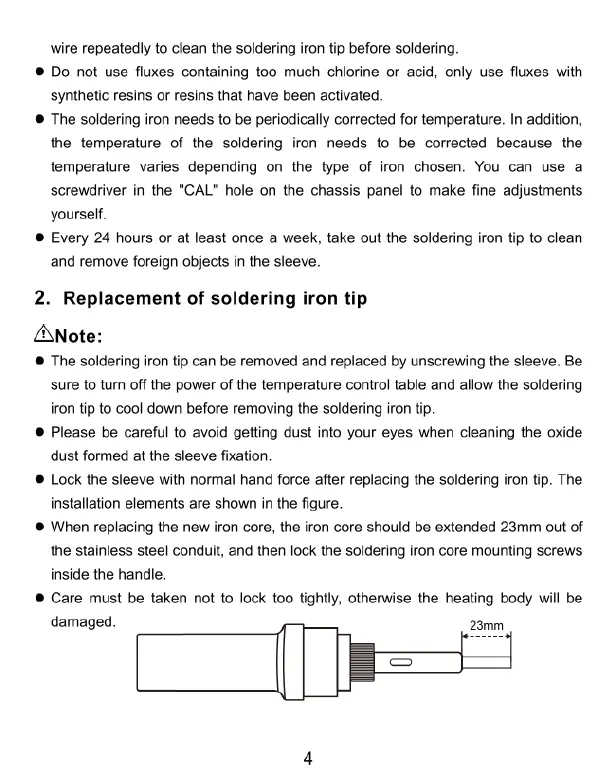

® Lock the sieeve with normal hand force after replacing the soldering iron fip. The
installation elements are shown in the figure.
When replacing the new iron core, the iron core should be extended 23mm out of
the stainless steel conduit, and then lock the soldering iron core mounting screws
inside the handle.
@ Care must be taken not to lock too fightly, otherwise the heating body will be
damaged. 2
