Step 4: Tabletop Doors
Hinge Body x3
g1
3.5x14 Screw x42
s1
3x14 Screw x4
s2
Butt Hinge x6
h3
Lock x1
Lock Plate x0
Key x0
L
3.5x20 Screw x4
s4
Caster x2
t1
V3
V1
V2
V3
V2
V1
g1
s1
s1
h3
t1
r3
L
s4
s4
s2
m
s1
h3
Magnet x0
Catch Plate
x2
m
14mm Wrench x1
r3

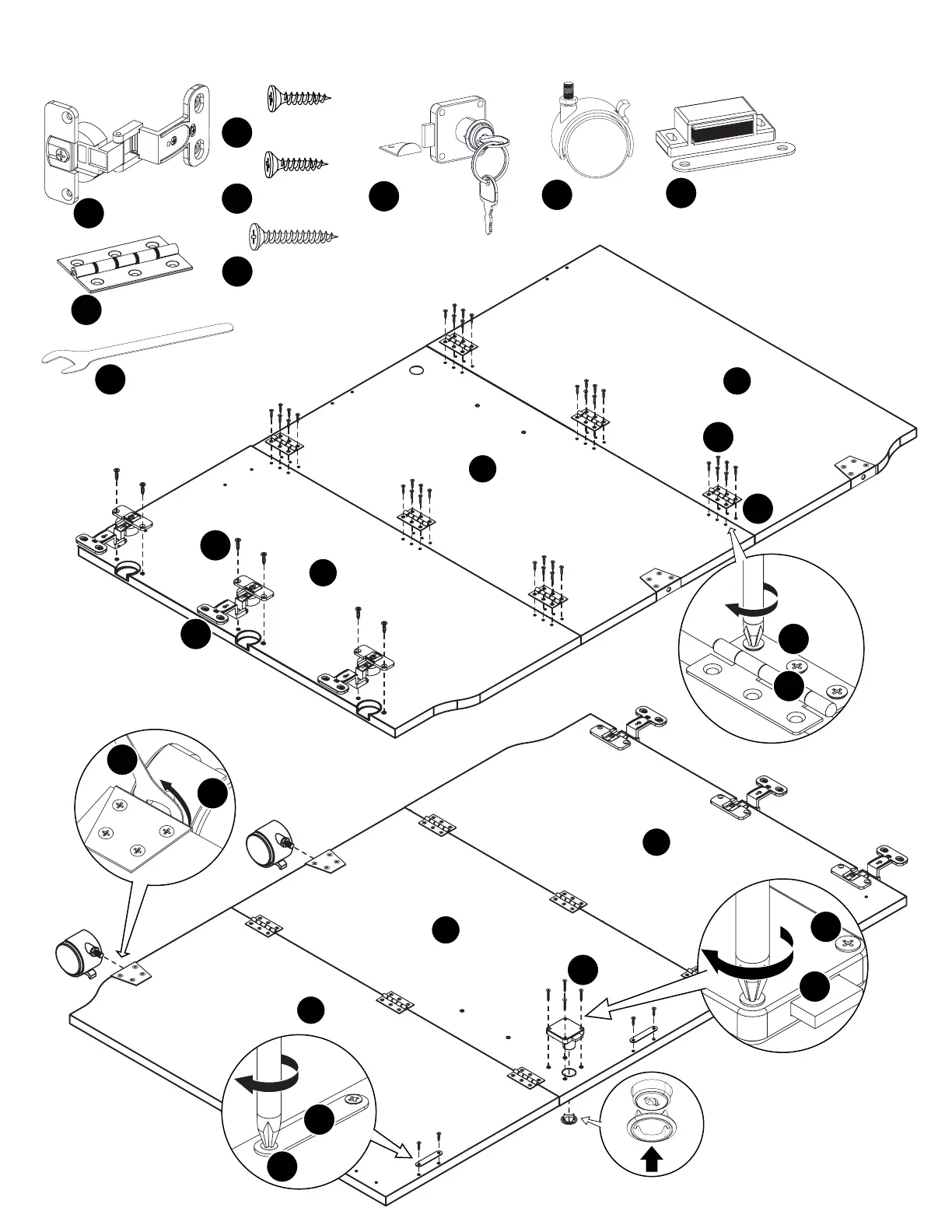

Attach g1 Hinge
Body to Panel V3
using s1 Screws.
Attach Panels V1, V2, and V3 by
attaching h3 Butt Hinges with s1
Screws.
Attach L Lock with S4
Screws.
Add trim ring to lock on the
outside of Panel V2. You will
need to press firmly.
Attach m Magnet
Catch Plate using
s2 Screws.
Insert t1 Caster into Caster
Bracket and tighten with
r3 Wrench.
