Step 3: Attach TV to Wall Plate
With the Quick-Lock brackets fi rmly secured to the TV, use two people to lift the TV into position and hook the Quick-
Lock brackets onto the Wall Plate, as shown in Diagram D.
Swing the bottom of the television towards the Wall Plate, and the Quick-Lock bracket will lock into place, as shown in
Diagram E.
CAUTION
Read this section carefully prior to install.
WARNING
Use two people to lift and position the TV onto the Wall Plate.

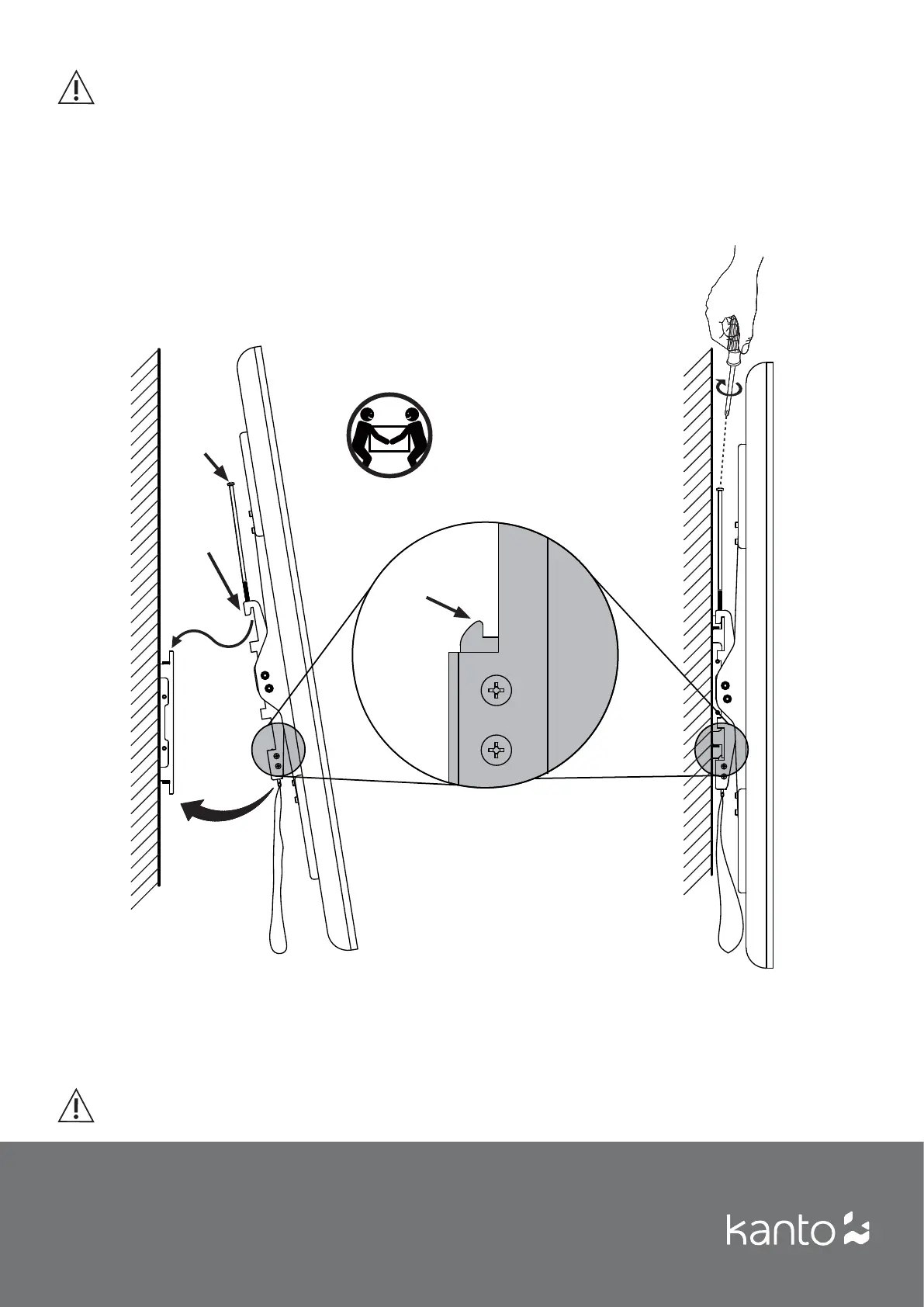

Diagram D Diagram E
Hook
Quick-
Lock
Leveling
Screw
Step 4: Level the Television
For minor level adjustment, use a Phillips screwdriver to loosen or tighten the Leveling Screws, as shown in Diagram
E. You may need to pull down slightly on the Quick-Lock release cord to allow horizontal movement of the TV for this
adjustment.
