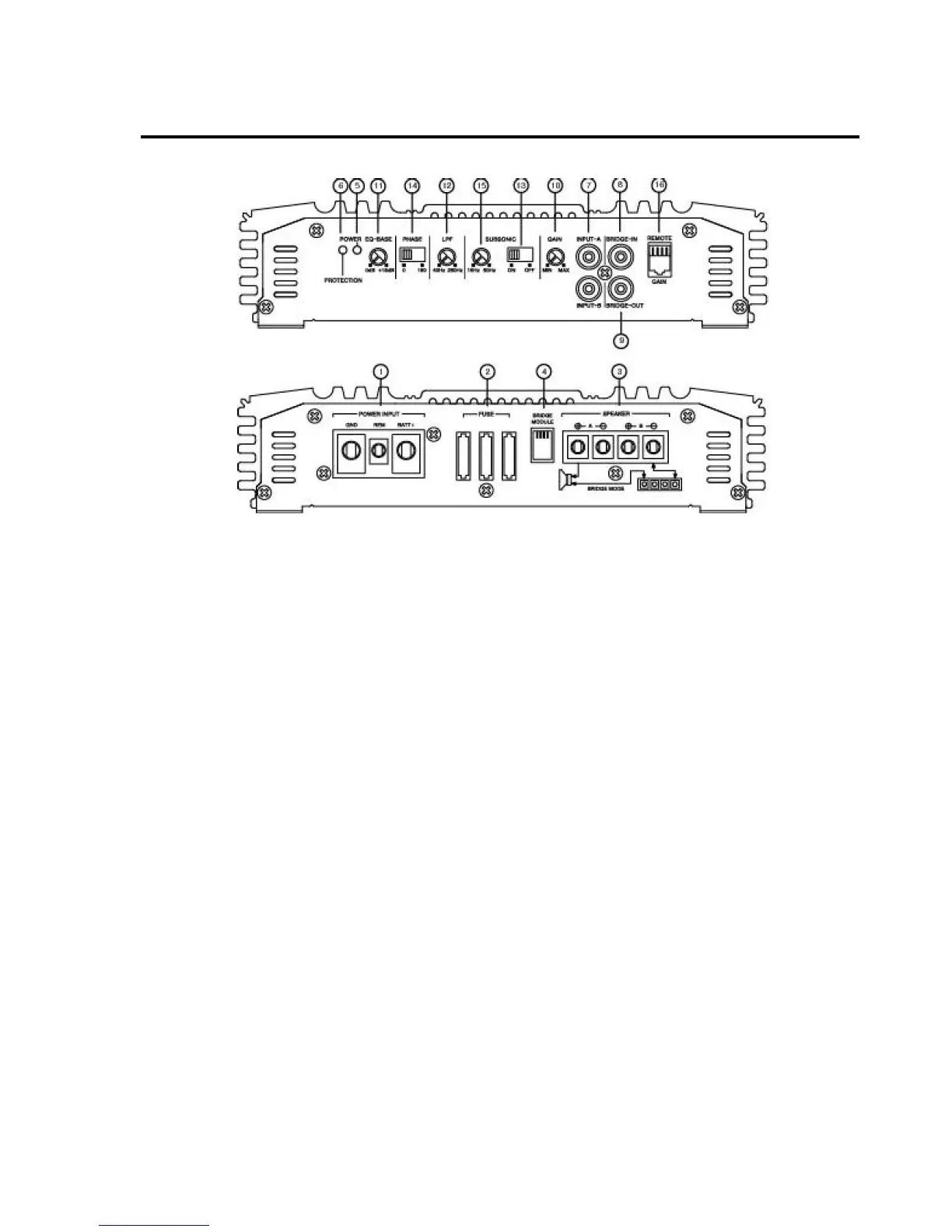

Functions
1. Power Connection Terminal
• Battery +
+12V power cable must be connected directly to the positive
terminal of the battery with an in-line protection fuse, not to the
electrical system of the car (i.e., fuse block).
• REM: Remote Turn on
Connect this terminal to the source unit’s power antenna or
remote turn on output. Some source unit’s power antenna
output disengages when a source other than the tuner is
selected. In this case, you must select a source unit’s remote
turn-on output or another switched +12V output.
• GND: Ground
When making a connection to the vehicle chassis, use the
proper size ring terminal to suit the ground cable and fasten it
to the vehicle with a threaded bolt and nut. Good grounding
forms the basis for the audio quality of the entire system. The
best solution is to connect the ground cables of all audio-
components (Radio, Amplifier, Equalizer and/or etc.) in one
common place of the vehicle’s chassis.
2. Fuse
• Used to protect the amplifier. If replacement is necessary, use
the same type. Never use a fuse with a lower or higher rating as
serious damage can occur.
3. Speaker Connection Terminal
• Used to connect the amplifier to speakers. Minimum speaker
cable size is 16 gauge.
