KARCEPTS KIM01 - Page 7

2. INSTALLATION

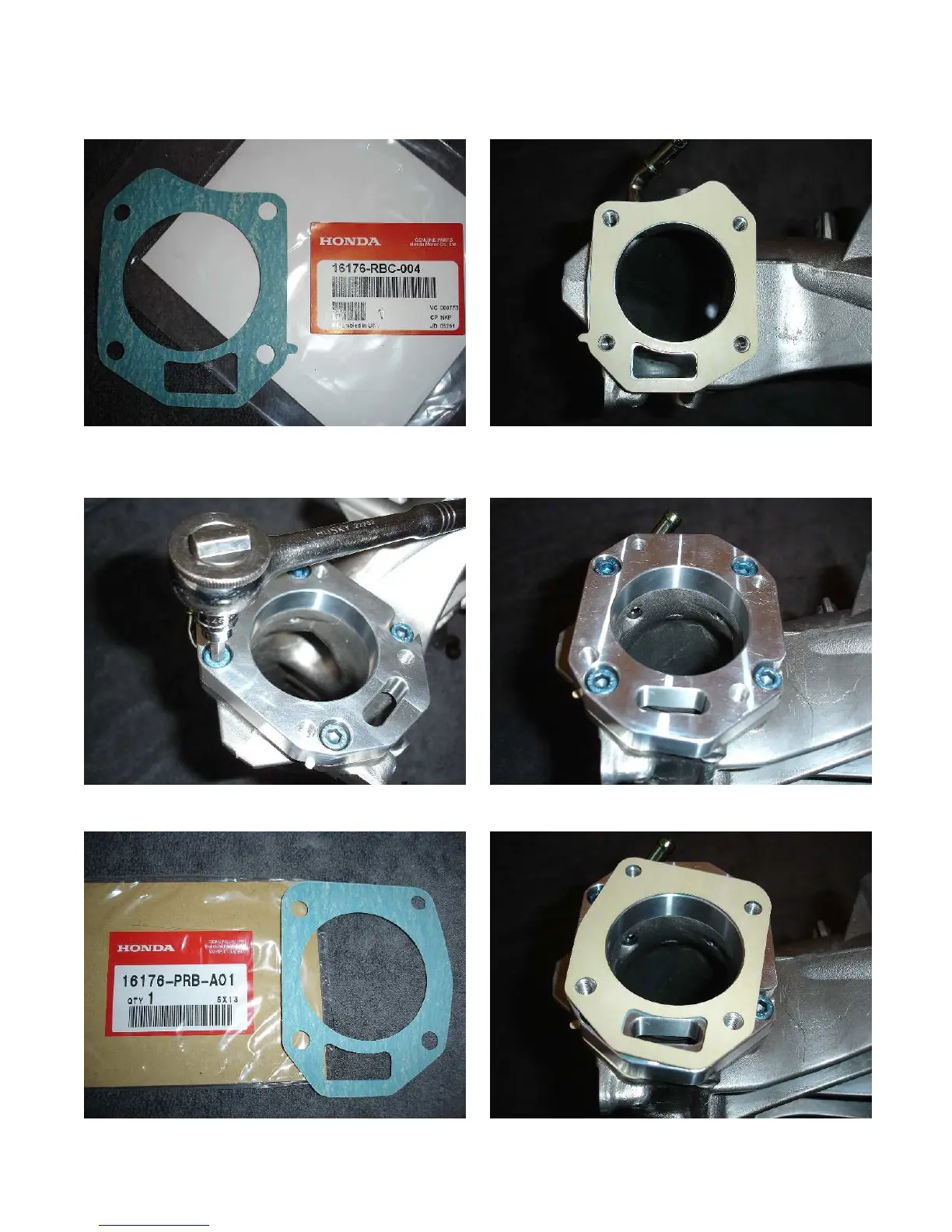

1. Line up the 16176-RBC-004 throttle body gasket as shown.
2. With a 6mm Allen Wrench, bolt the adapter onto the intake manifold with four
M8 socket head cap screws.
3. Line up the 16176-PRB-A01 throttle body gasket as shown.
