2. INSTALLATION (continued…)

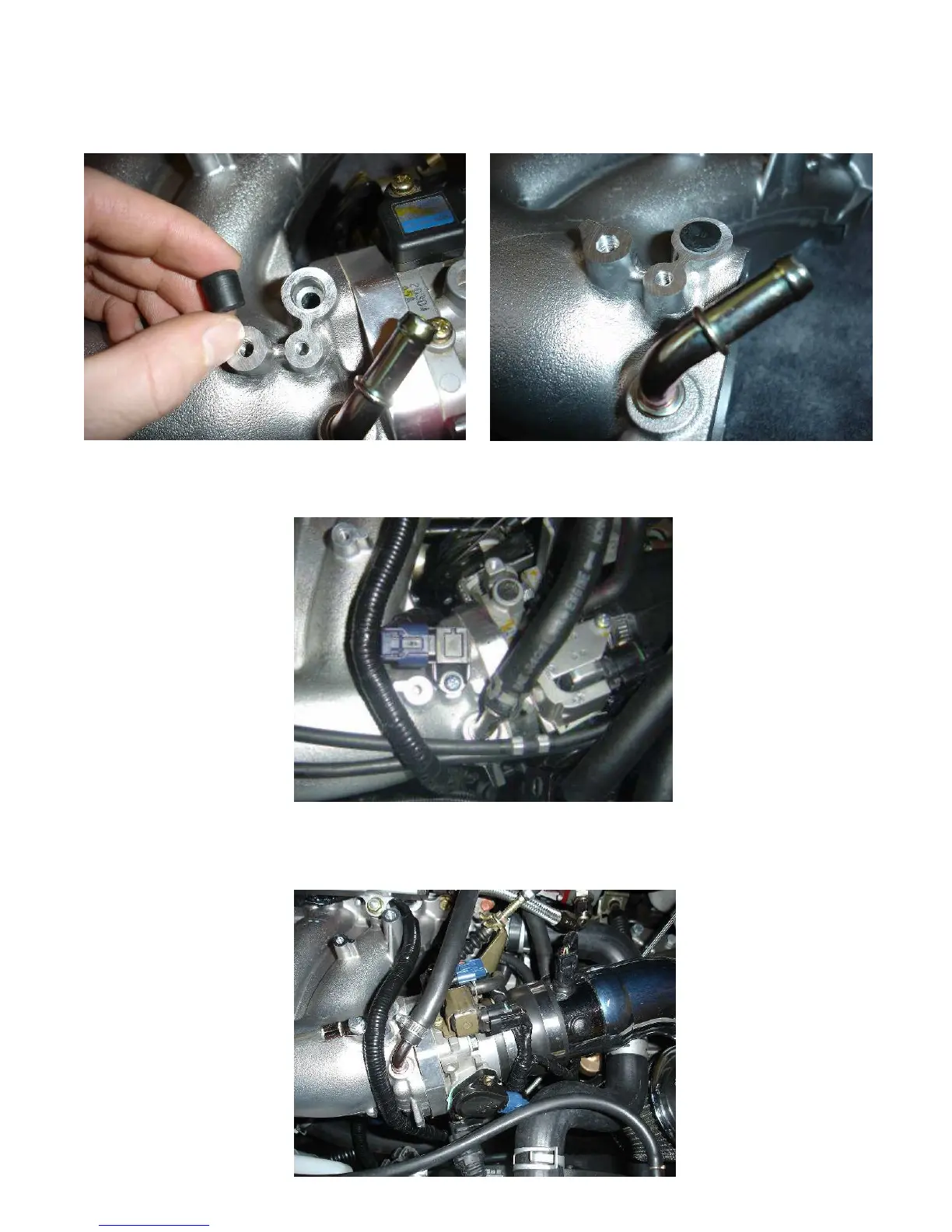

6. If using a K20A/A2/A3 TB, install a provided rubber plug into your RBC/RRB
intake manifold MAP sensor port. Use a tool to aid with insertion.
For a K20Z1 TB, relocate the MAP sensor on the TB to the MAP sensor location
on the RBC/RRB intake manifold. Then use a provided rubber plug to block the
no longer utilized MAP port on the TB.
7. Install the intake manifold and throttle body assembly onto the engine. Re-
connect the EVAP hose, brake booster hose, PCV hose, throttle cable, fuel
lines, and electrical connectors.
