9.800-103.0 - M • Karcher HDS 615-617
OPERATOR’S MANUAL
PRESSURE WASHER
38
ITEM PART NO. DESCRIPTION QTY
1 8.752-825.0 Crankcase 1
2*
See Kit Below
Plunger Oil Seal 3
3*
See Kit Below
O-Ring Ø1.78 x 37.82 3
4*
See Kit Below
Pressure Ring, 18mm 3
5*
See Kit Below
U-Seal, 18mm 3
6*
See Kit Below
Intermediate Ring, 18mm 3
7*
See Kit Below
U-Seal, 18mm 3
8 9.802-926.0 Brass Plug, G1/2 1
9 9.803-199.0 Copper Washer 1/2 1
10 8.753-816.0 Manifold Housing
1
11* 9.804-498.0 O-Ring Ø2.62 x 25.1 6
12*
See Kit Below
Valve Assembly 6
13* 9.803-193.0 O-Ring 3068 6
14 9.802-928.0 Valve Plug 6
15 8.753-817.0 Manifold Stud Bolt 8
16 9.802-890.0 Lock Washer 8
17 8.719-008.0 Copper Washer 3/8 1

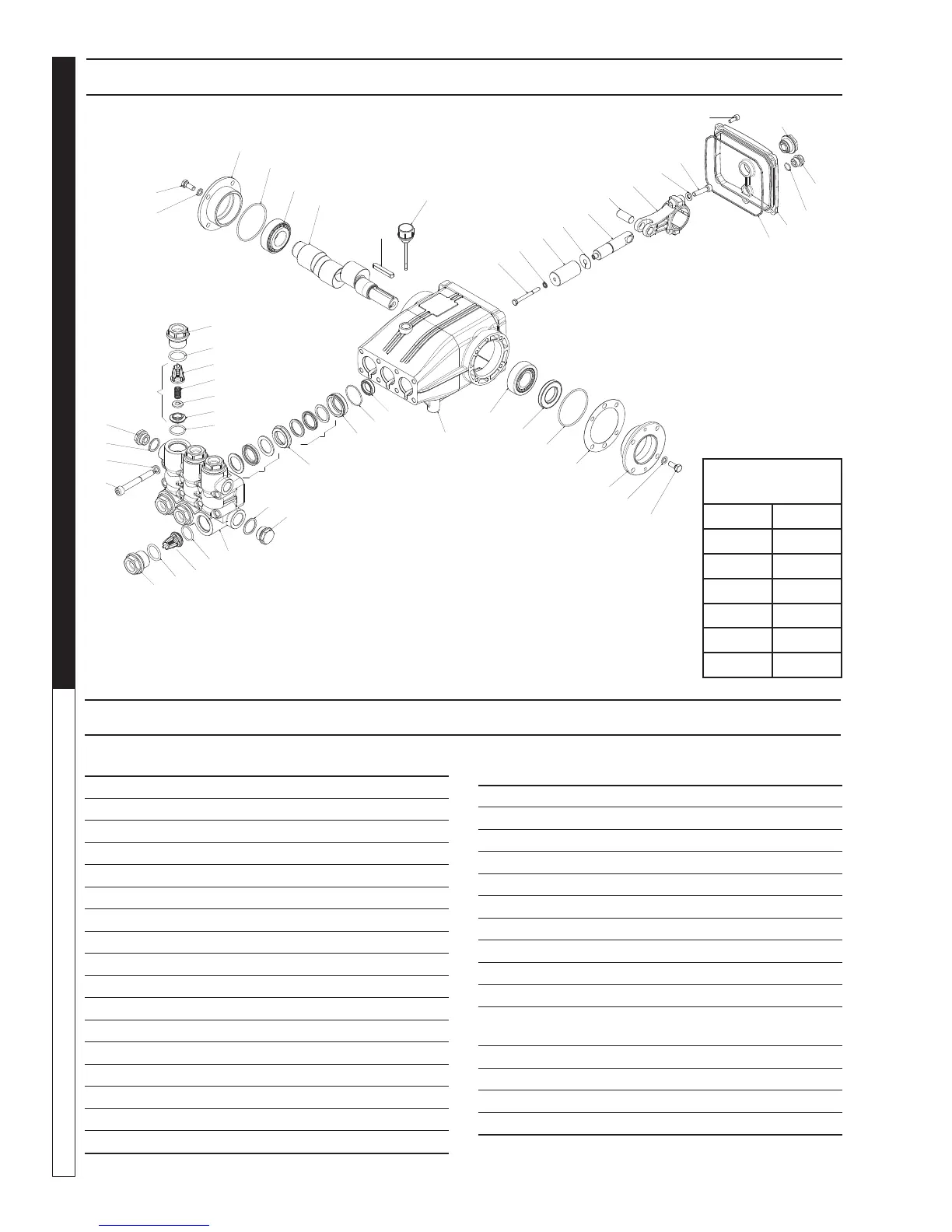

KT.2 PUMP EXPLODED VIEW PARTS LIST
KT.2 SERIES PUMP EXPLODED VIEW
TORQUE SPECS
ITEM # FT. LBS.
14 95
15 45
23 8
34 10
42 30
48 8















































ITEM PART NO. DESCRIPTION QTY
18 8.707-262.0 Brass Plug 3/8 1
19
See Kit Below Valve Seat 6
20
See Kit Below Valve Plate 6
21
See Kit Below Valve Spring 6
22
See Kit Below Valve Cage 6
23 8.752-830.0 Hex Screw 8
24 9.802-884.0 Washer 8
25 9.803-182.0 Closed Bearing Housing 1
26 9.803-186.0 O-Ring Ø2.62 x 71.12 2
27 9.803-160.0 Roller Bearing 2
28 8.753-818.0 Crankshaft Ø25 (4540) 1
8.752-827.0 Crankshaft Ø25 (6036) 1
29 9.803-167.0 Crankshaft Key 1
30 8.752-834.0 Oil Dip Stick 1
31 9.803-139.0 Crankshaft Seal 1
32 9.803-177.0 Shim 2
